DIY Patio Stone Veneer at Smith Mountain Lake

In 2017 we added a patio and walkway to our Smith Mountain Lake house.  When this project was completed in 2017, we did not add stone veneer to the patio to match the house knowing that we could complete the work ourselves at a later date.  Two years later, we finally completed this project and love the end result.

Patio Stone Veneer Before and After

We started this project in March, so all of my “before” pictures show no furniture on the patio as it was still stored away for winter, and no leaves on the trees.

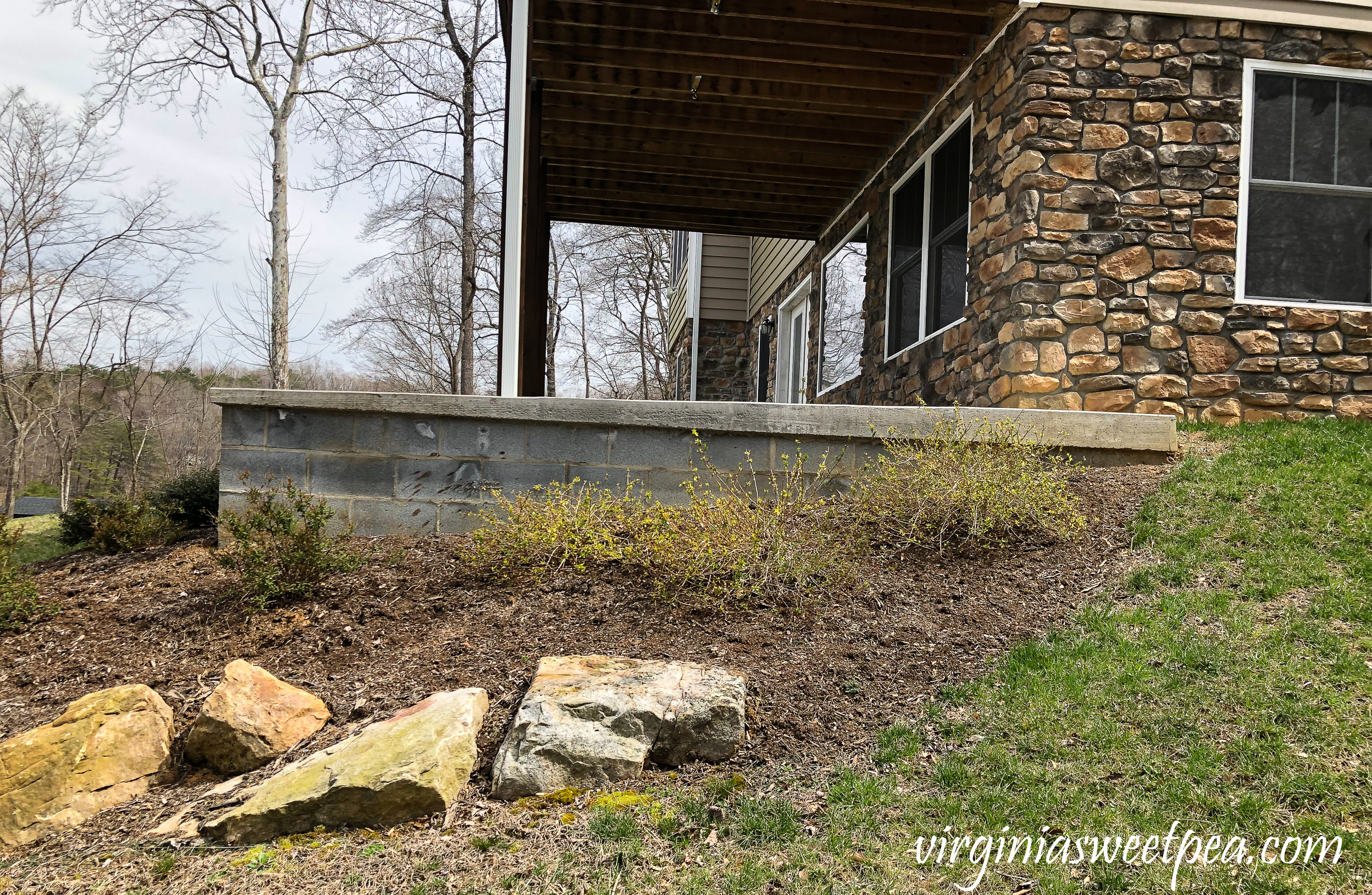

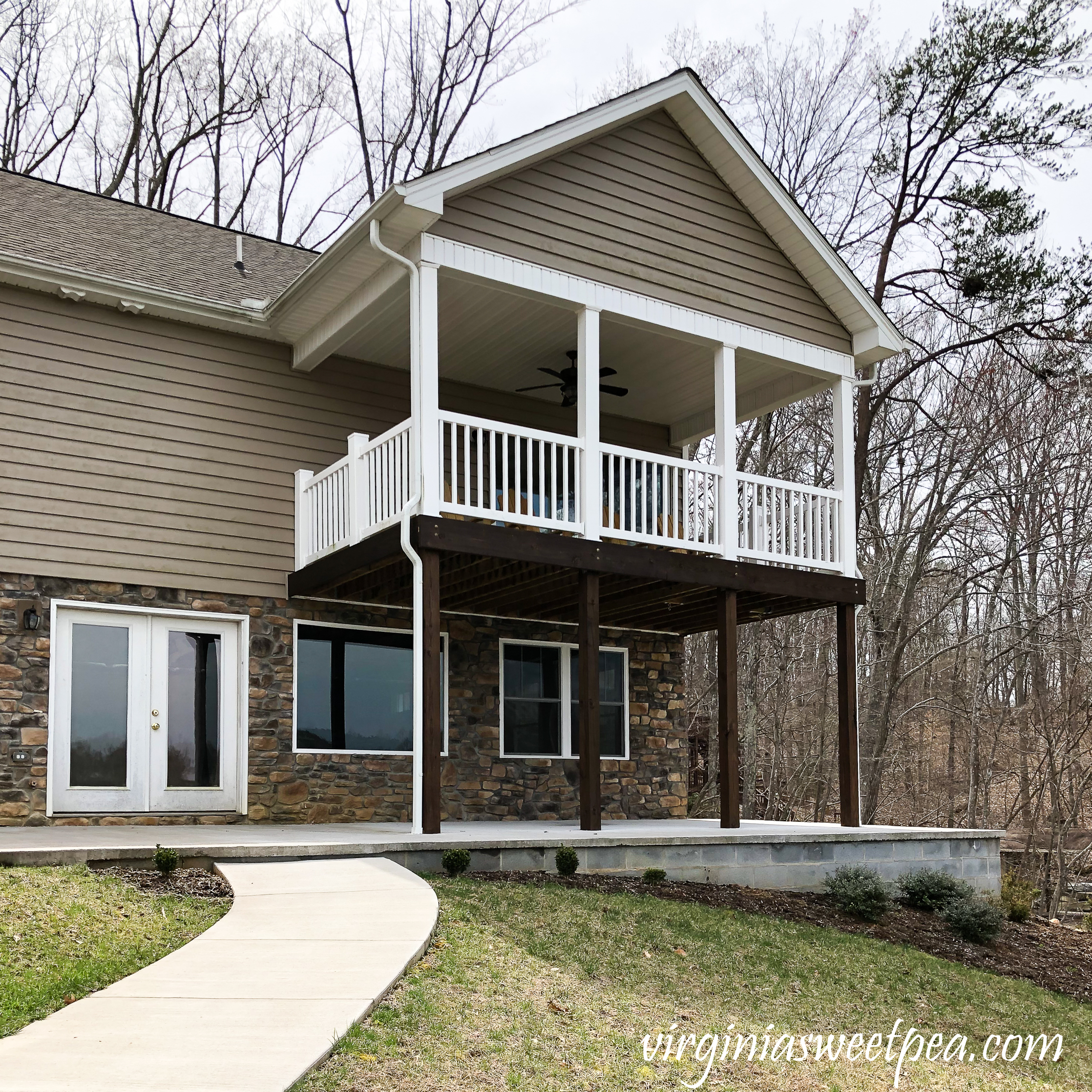

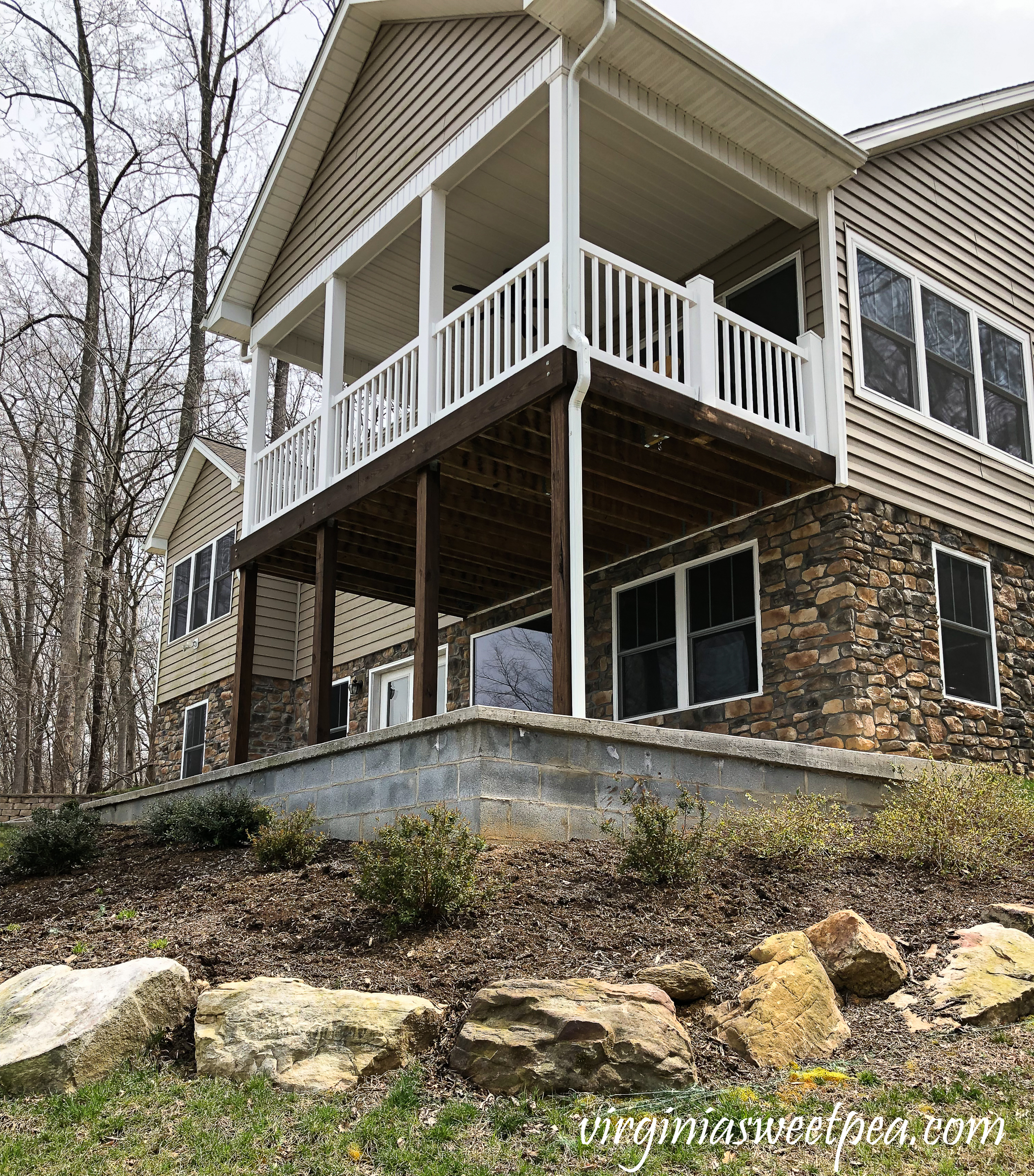

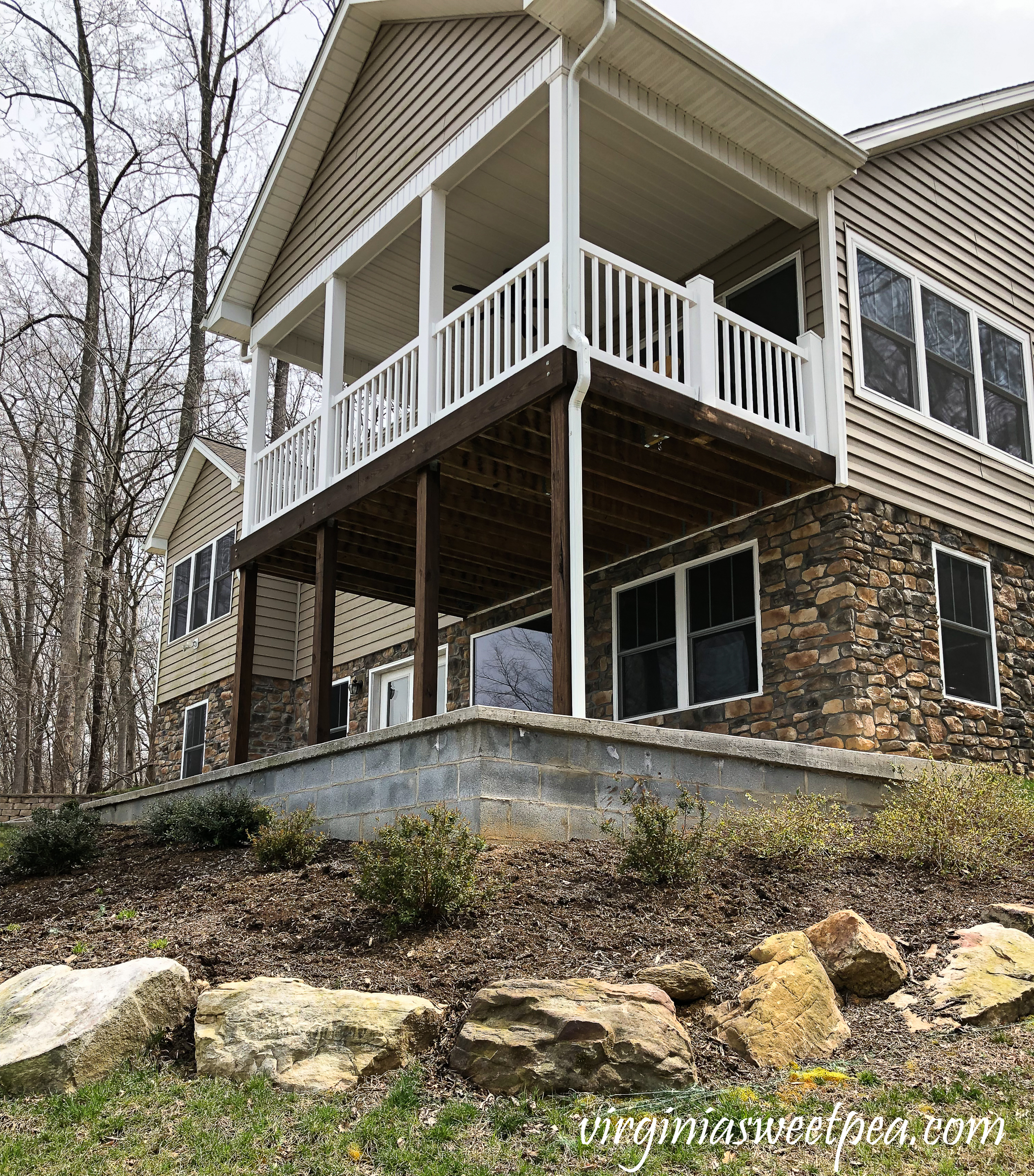

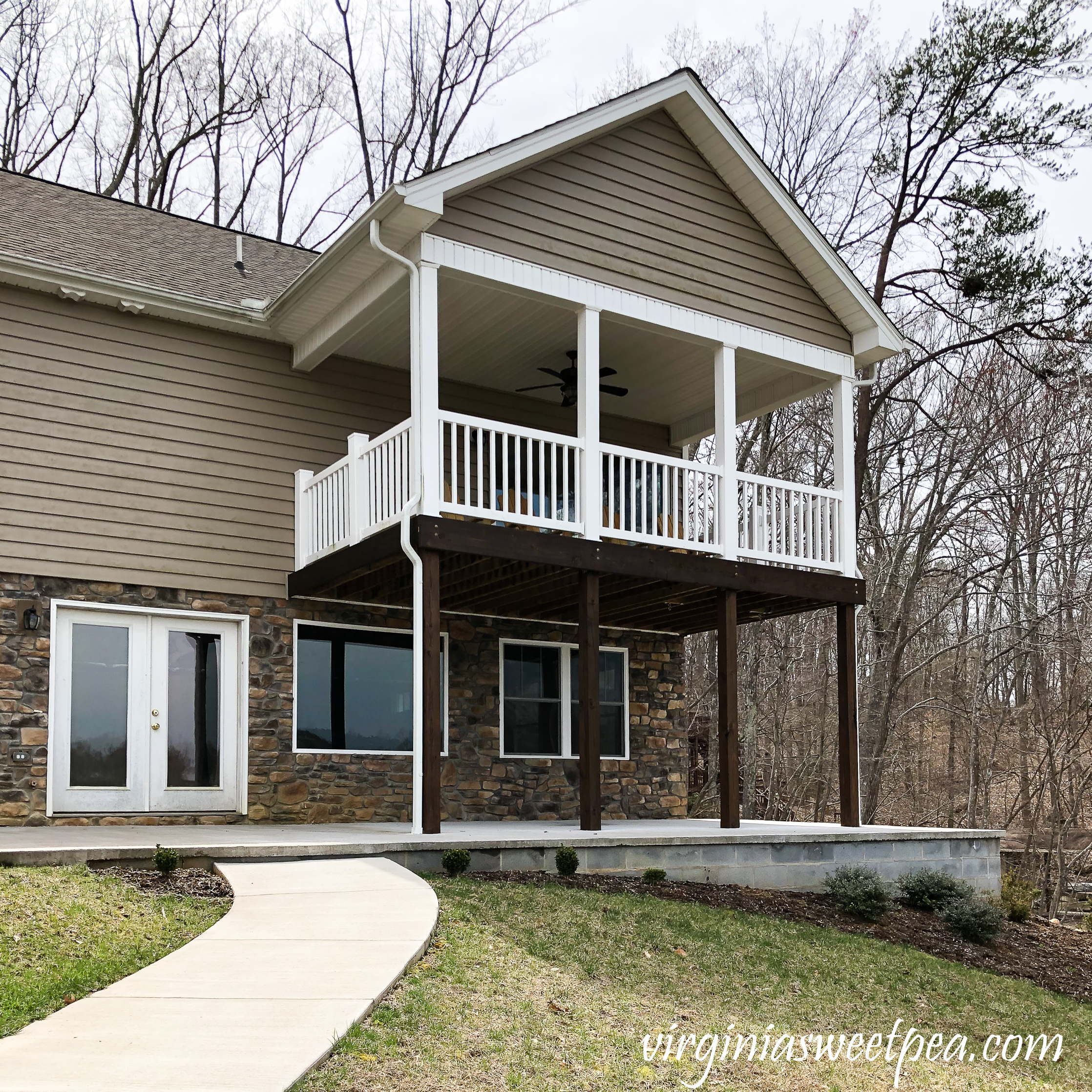

We love the outdoor space that our patio gives us but the exposed concrete walls made the space look unfinished.Patio with exposed concrete walls

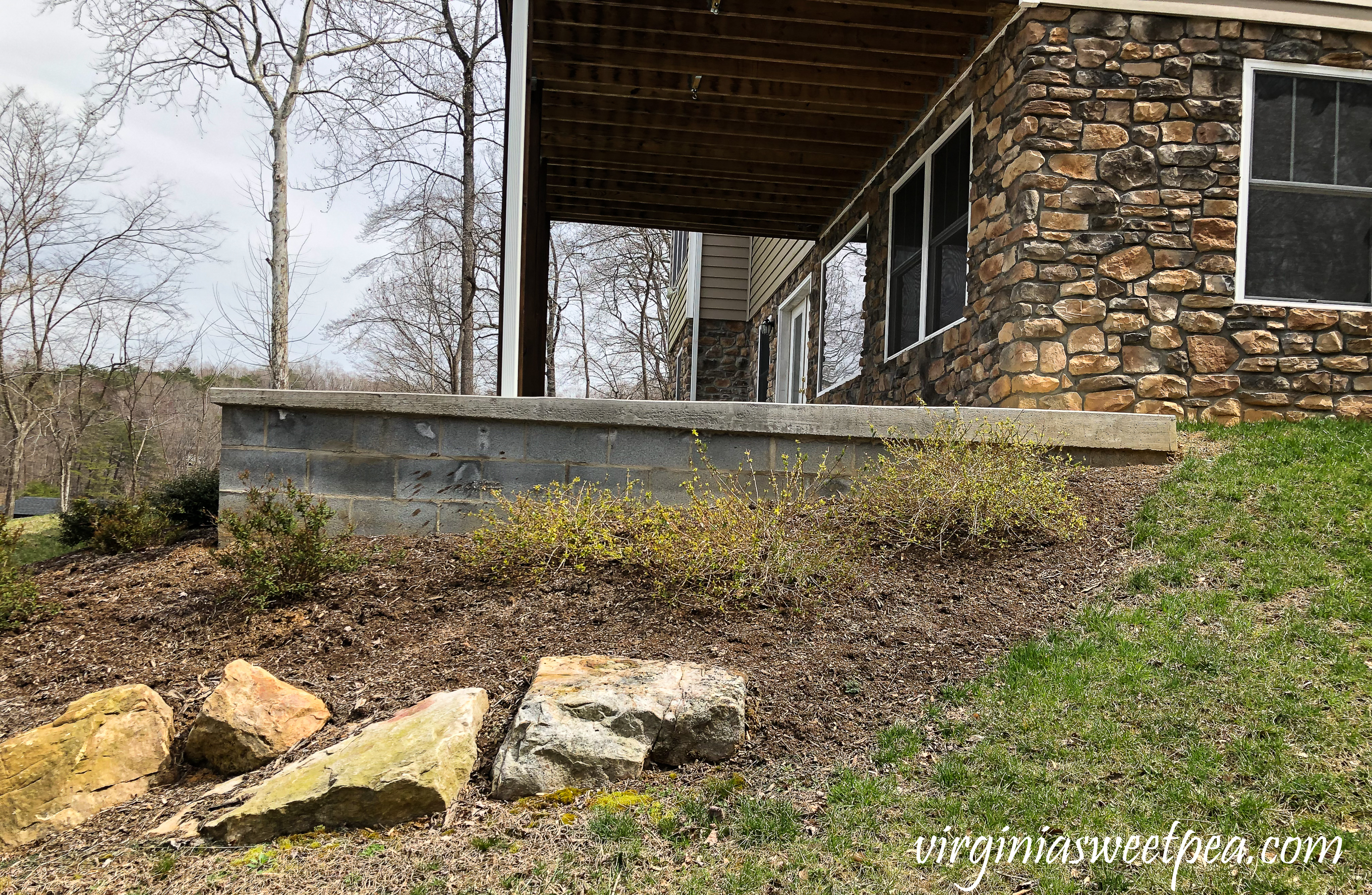

This side of the patio isn’t one that is often seen unless you are one of our lake neighbors or if we are mowing the grass.Patio with exposed concrete walls

My goal was to have this project completed by my 50th birthday on May 26 and we almost met that deadline.  I’ll explain later what delayed the completion of this project for us.Patio with exposed concrete walls

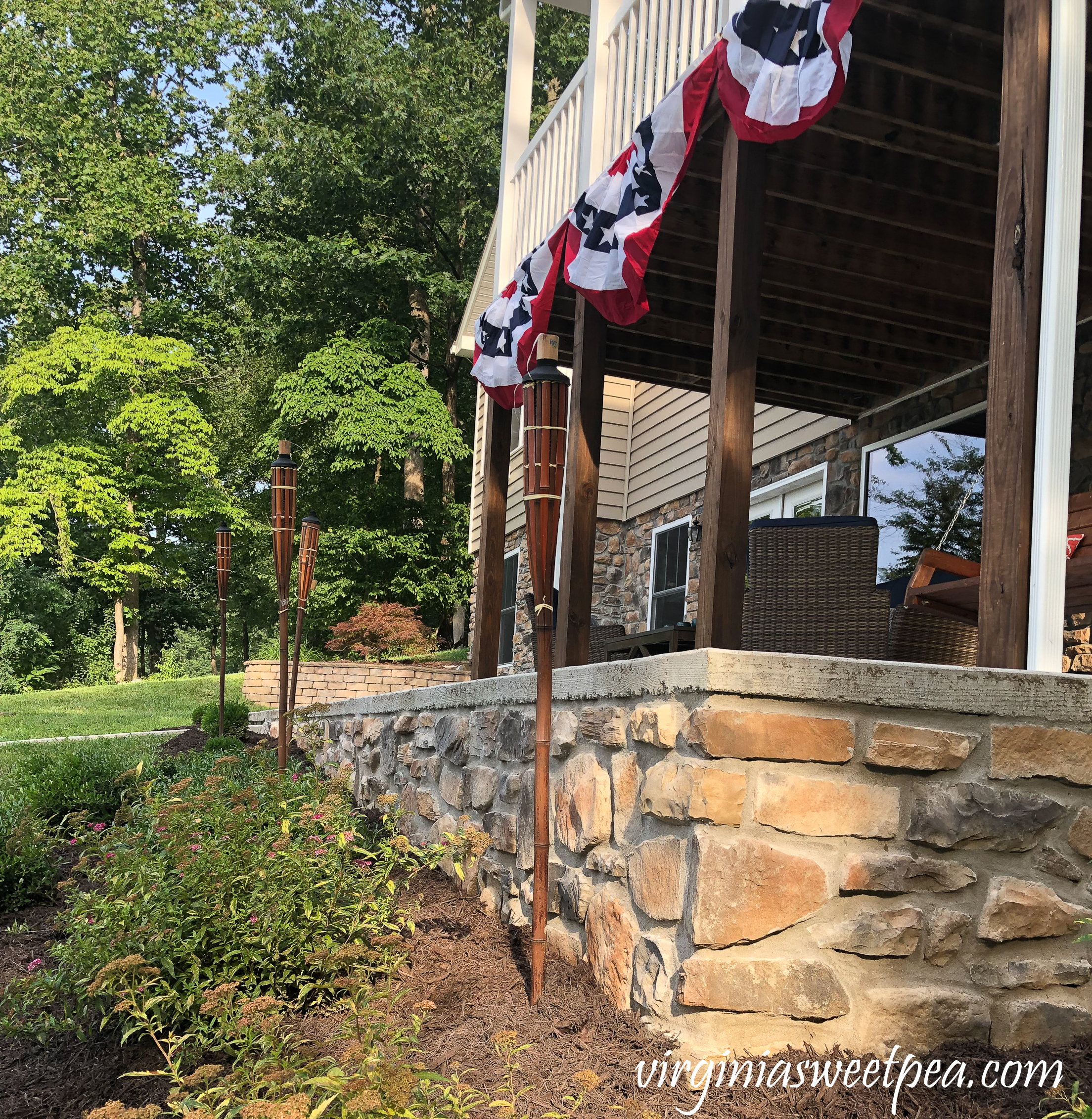

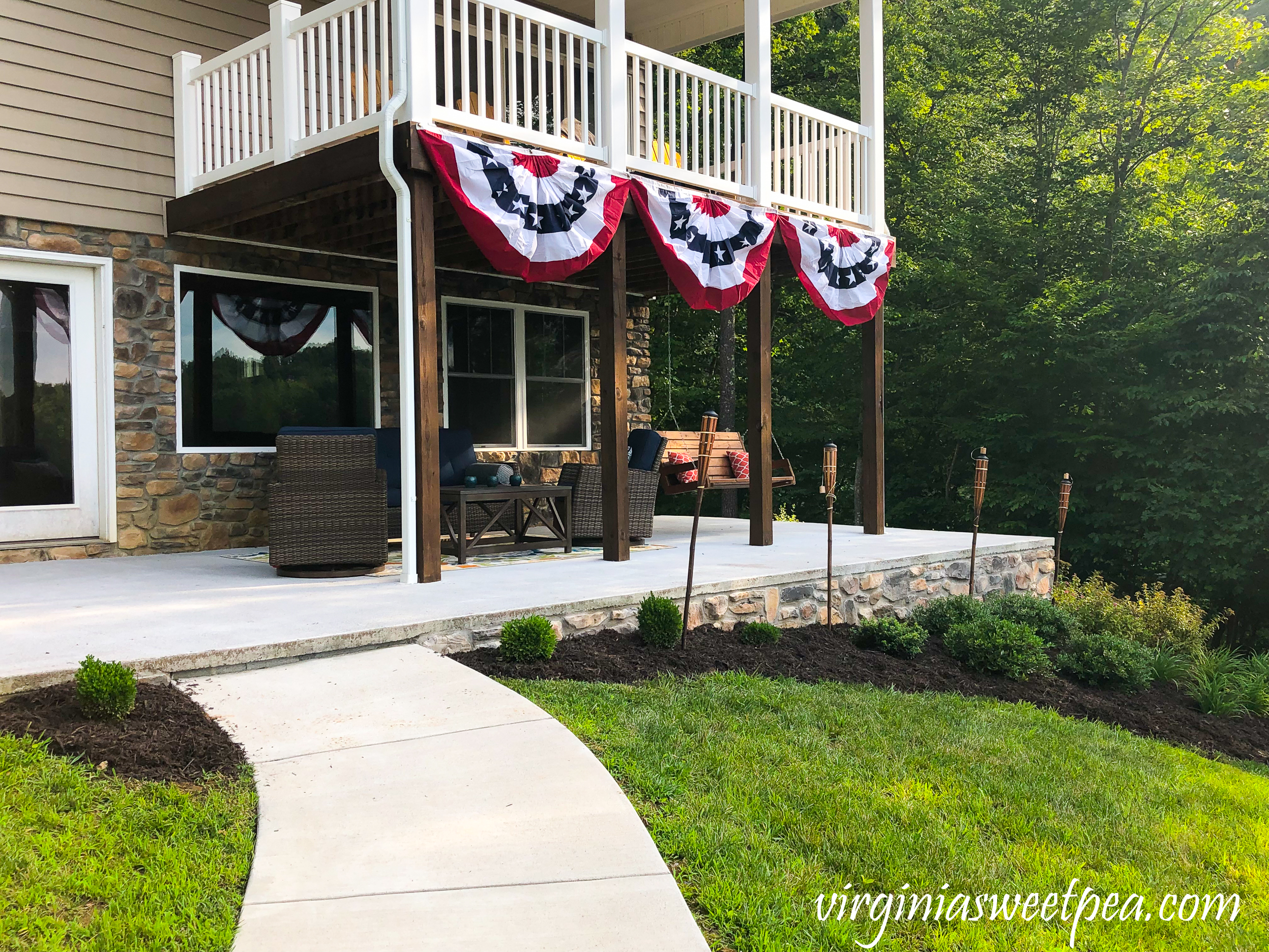

Now let’s look at the after pictures.  What a difference adding stone veneer makes!

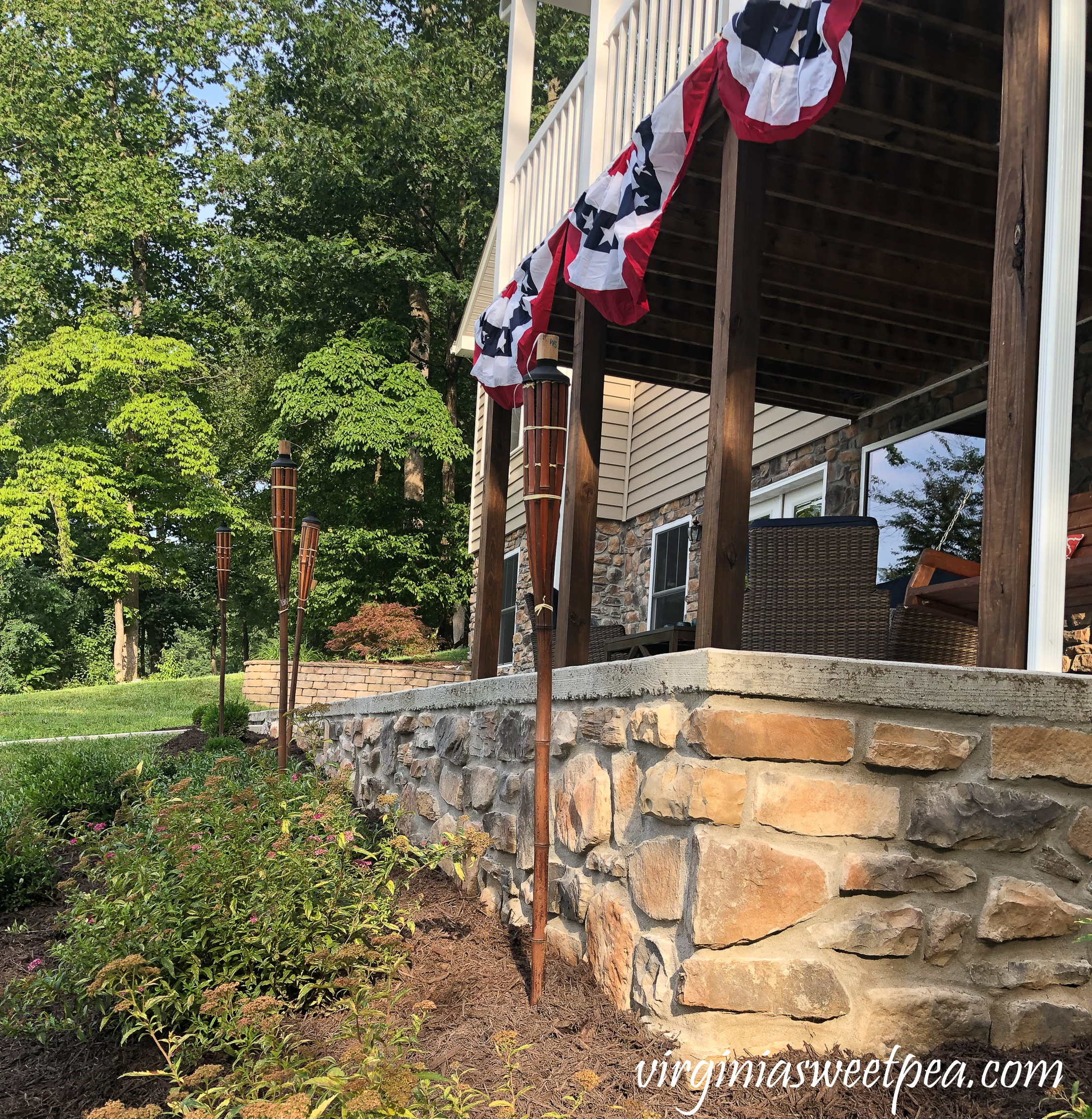

How to add stone veneer added to a patio wall

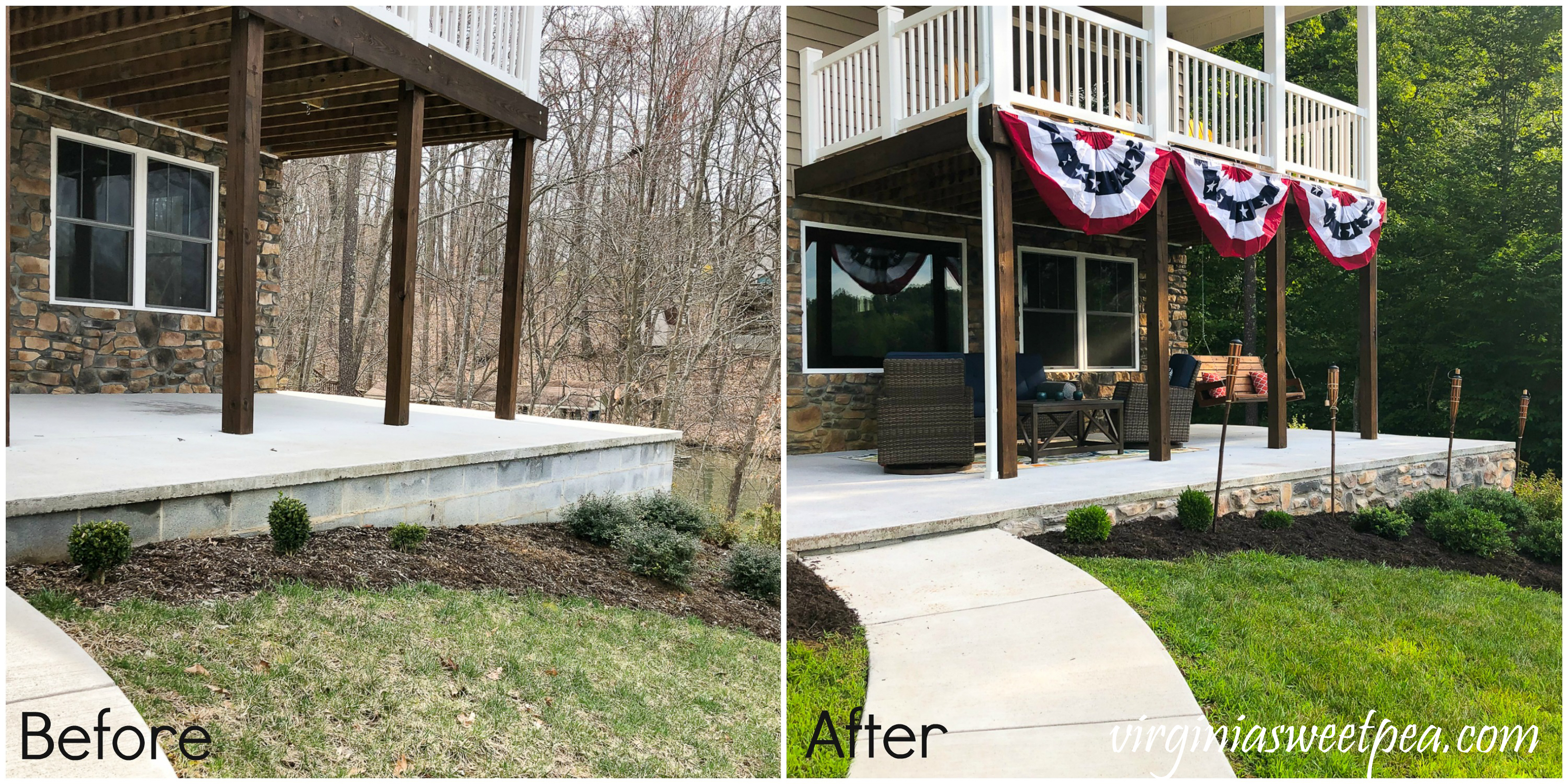

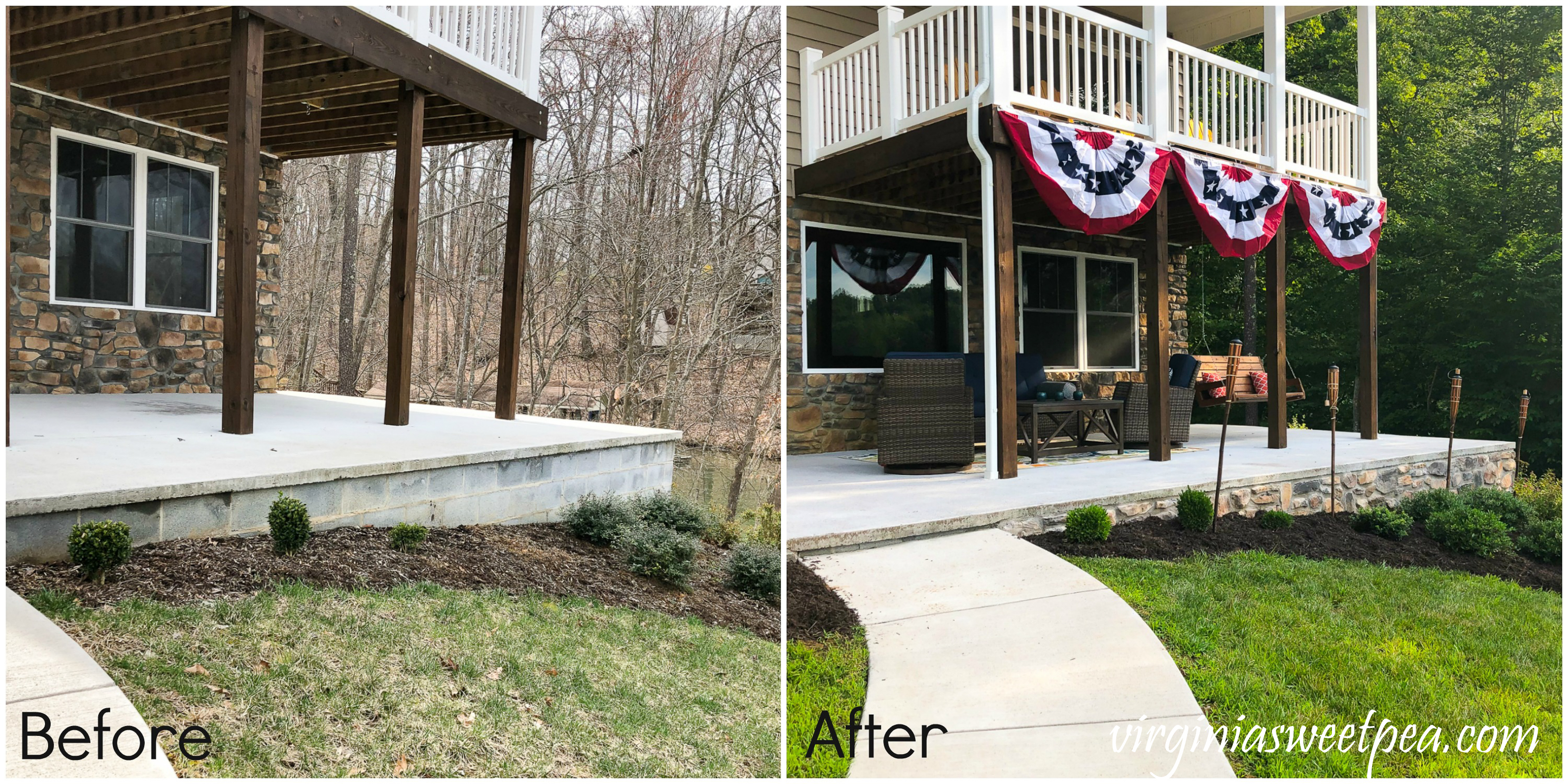

Here’s a side-by-side before and after of this view:

Before and After of a patio wall faced with stone veneer

We were able to order the same stone veneer used on our foundation locally.  It’s so nice to have it all matching.

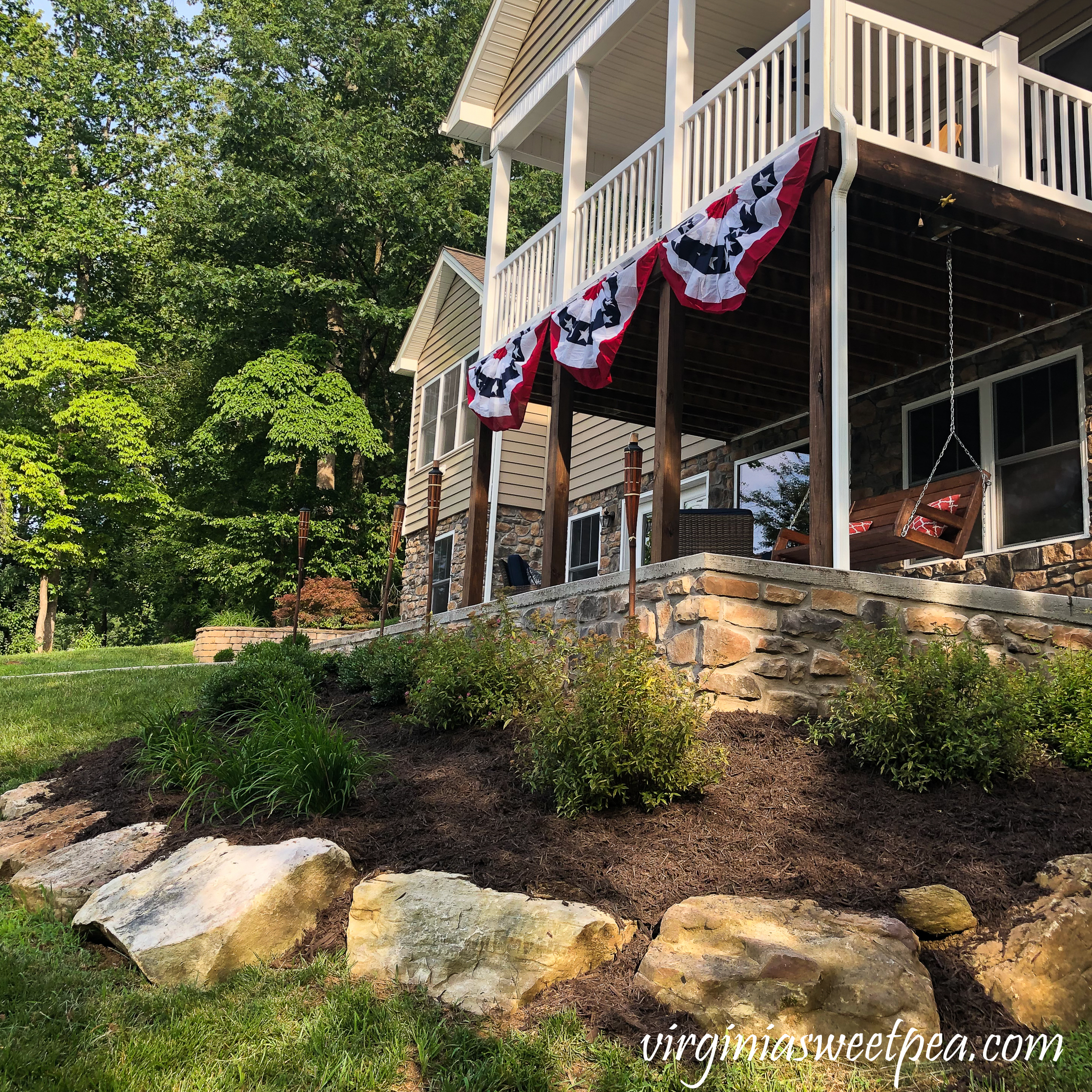

DIY Patio Stone Veneer

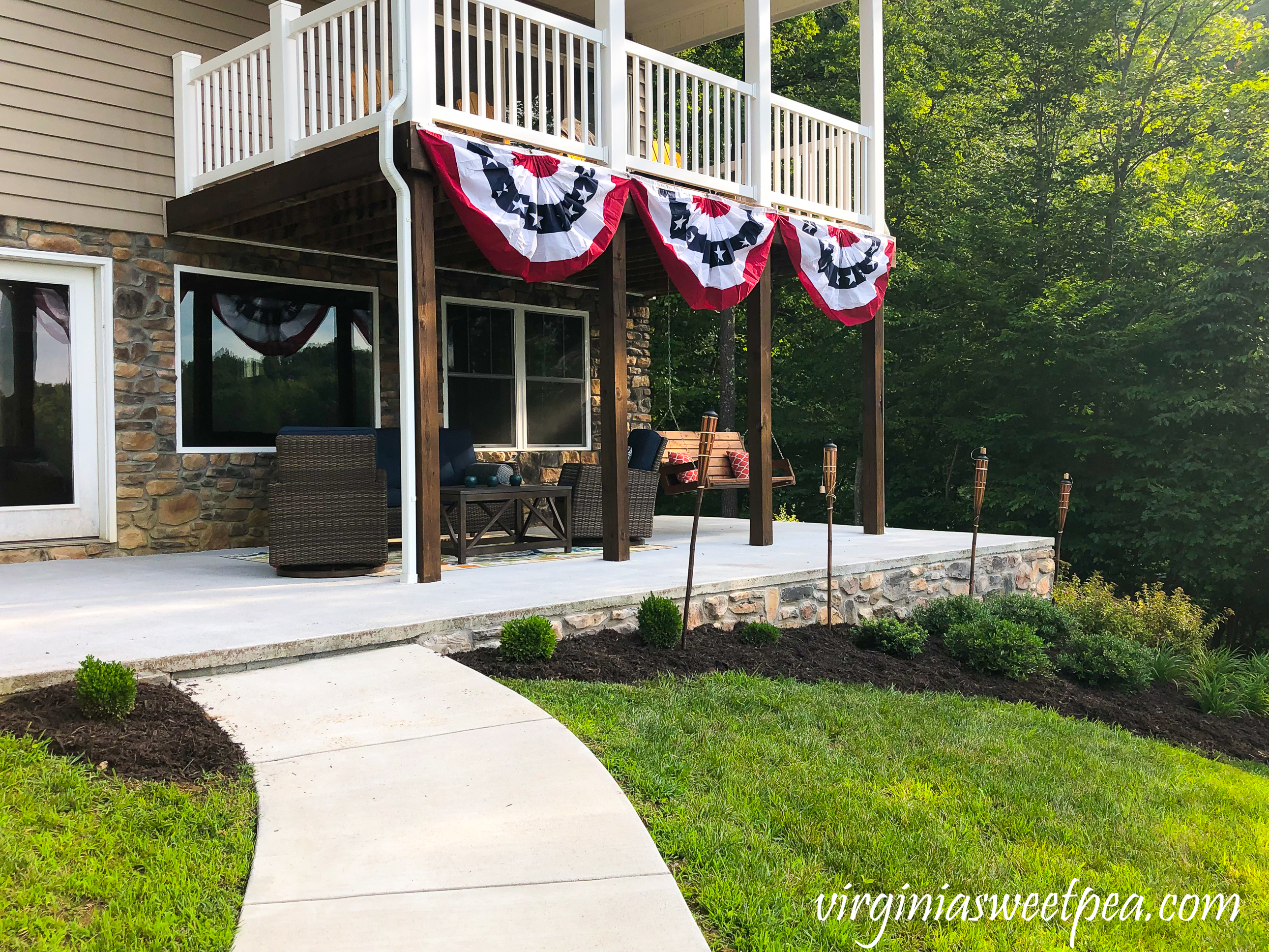

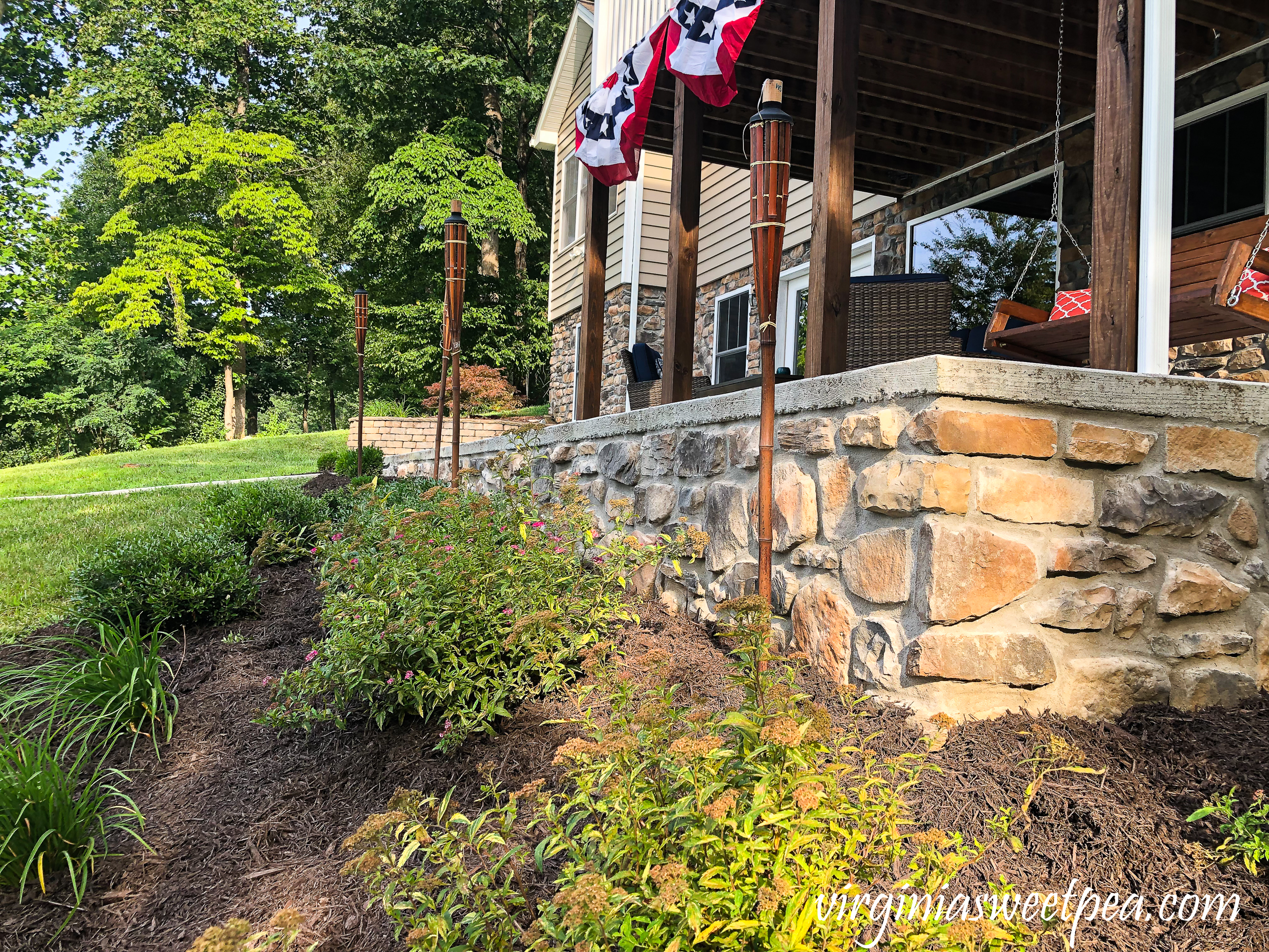

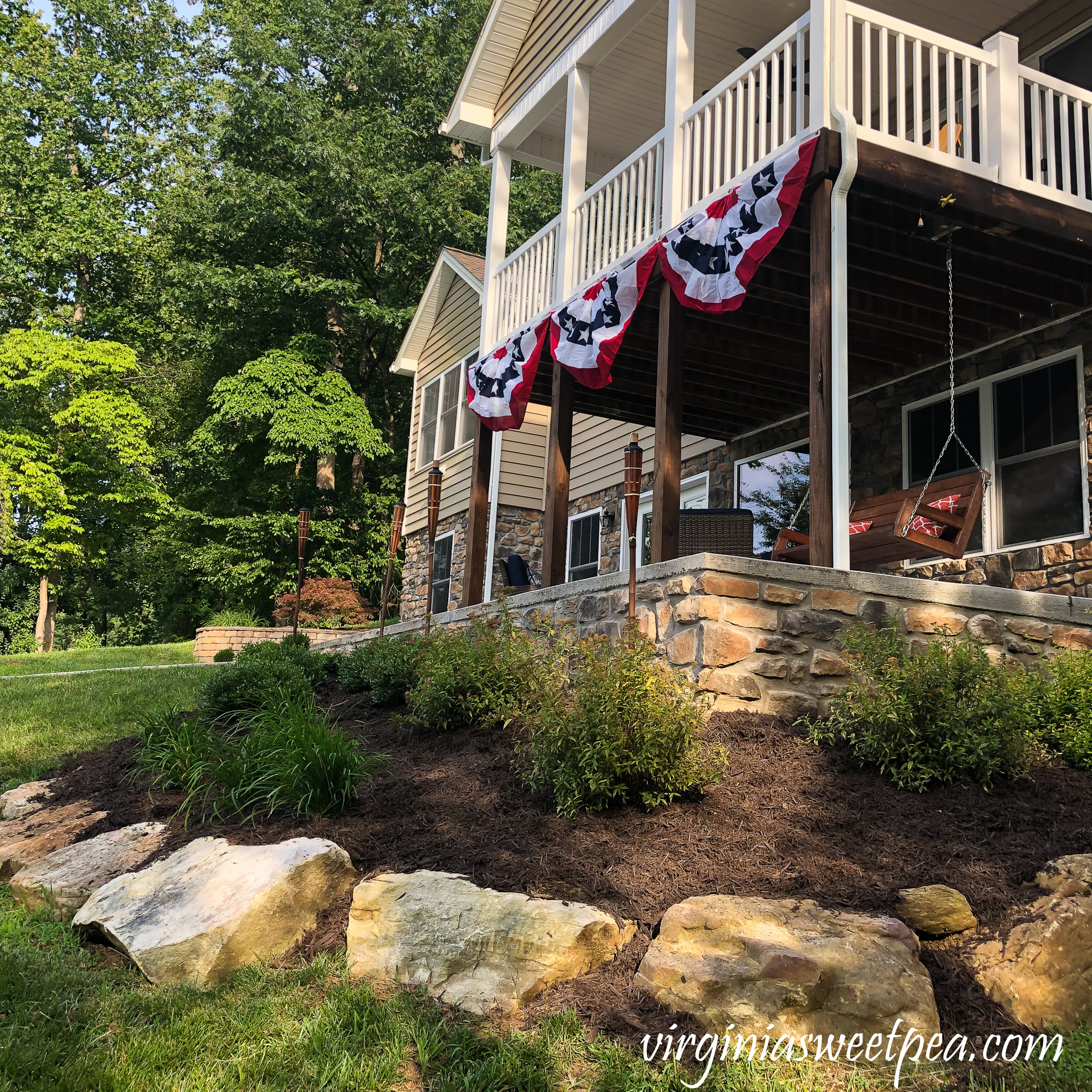

I love a good before and after picture and our porch definitely looks so much better after the stone veneer was added.

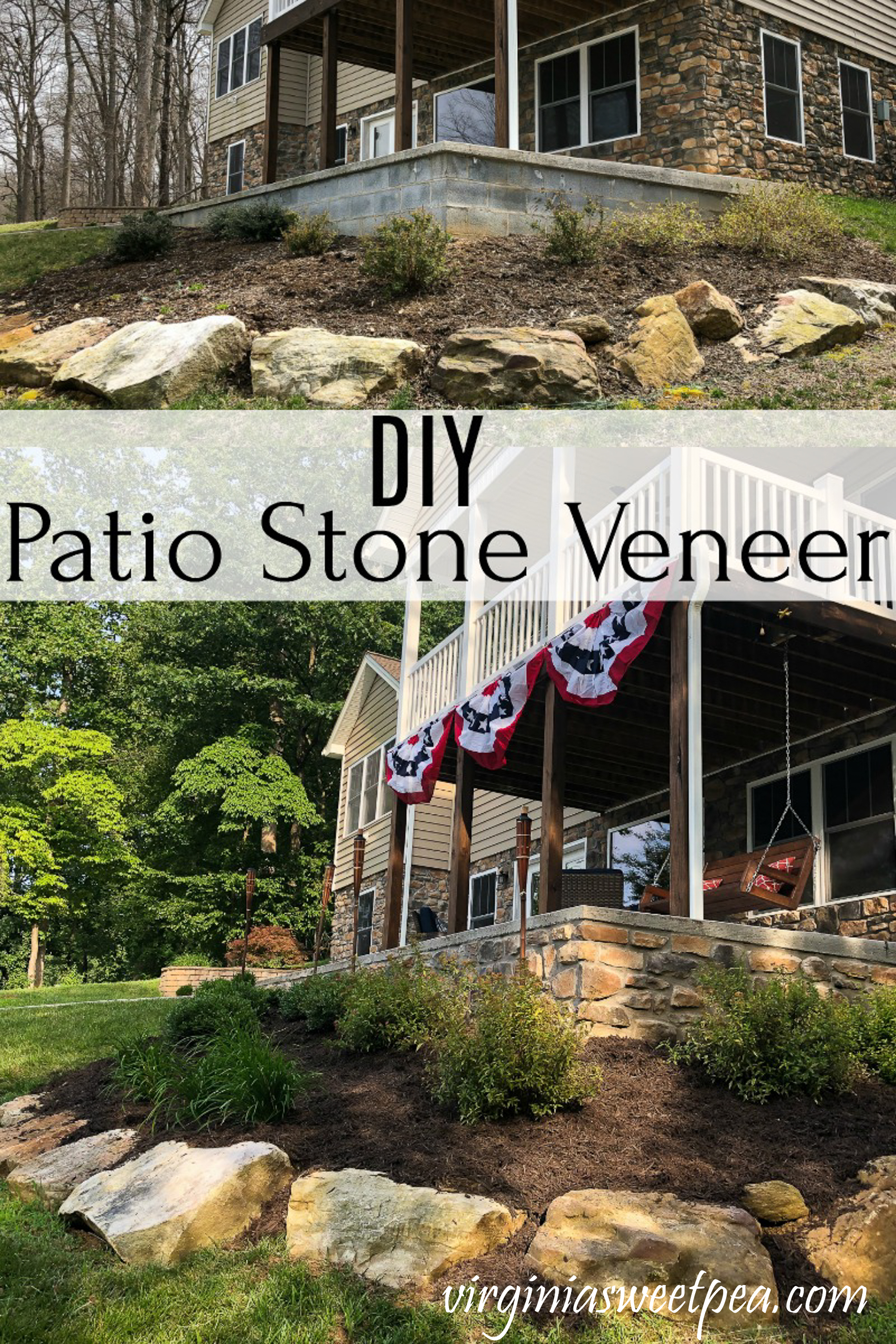

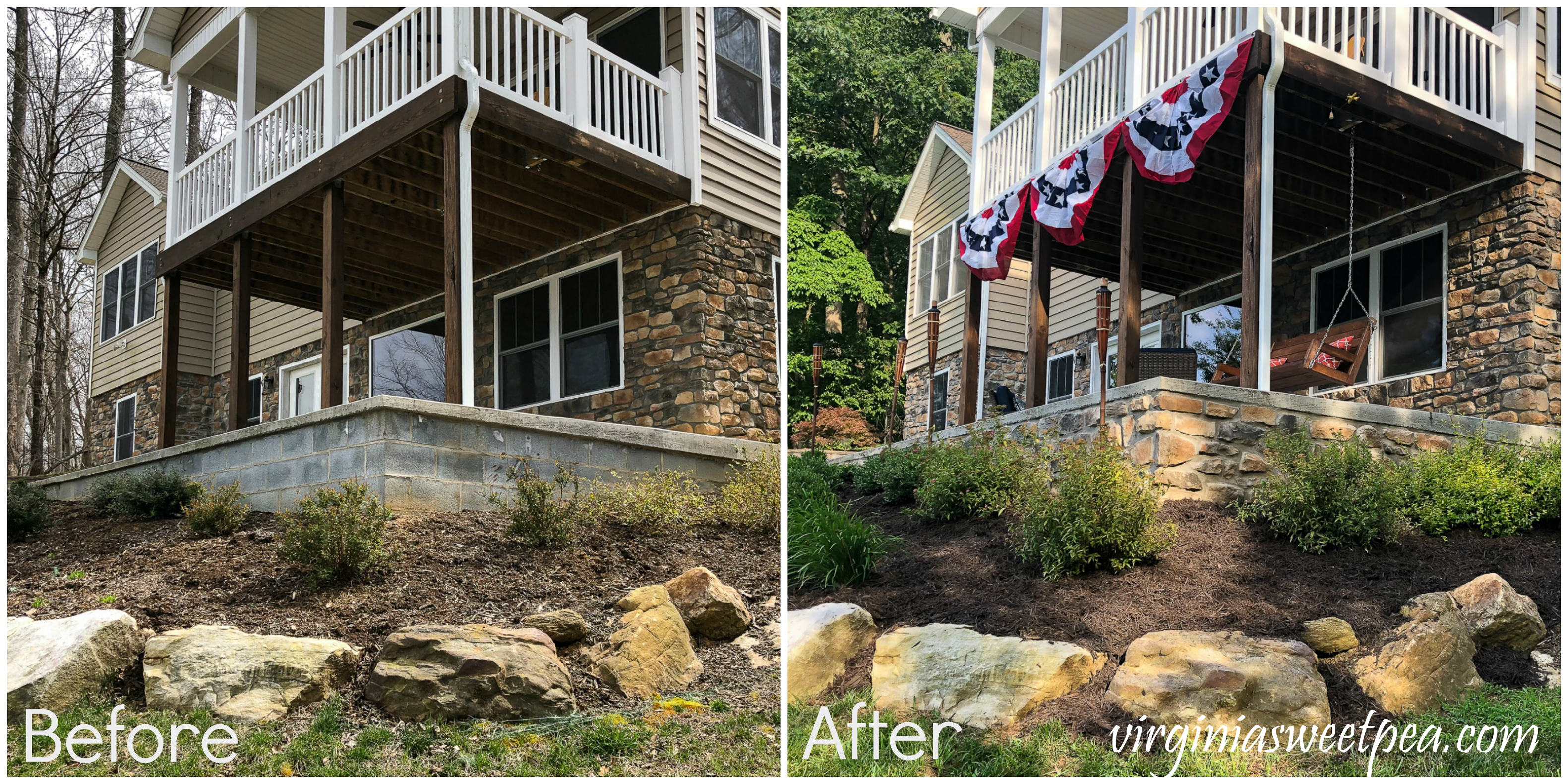

Before and After of adding stone veneer to a patio wall

We spend nearly every summer evening when we are at the lake on this patio.  Most recently we enjoyed viewing fireworks that neighbors released over 4th of July week and weekend.

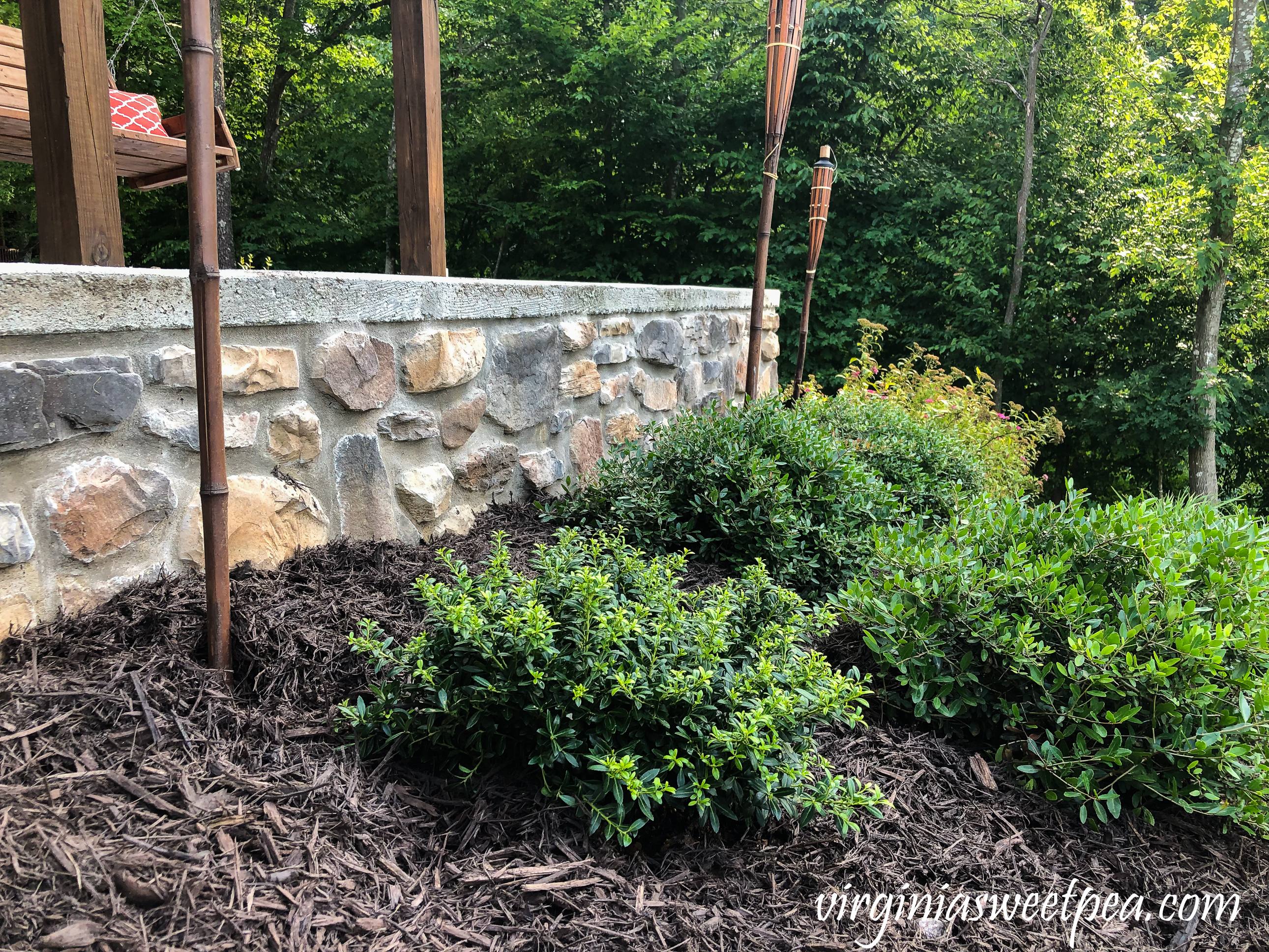

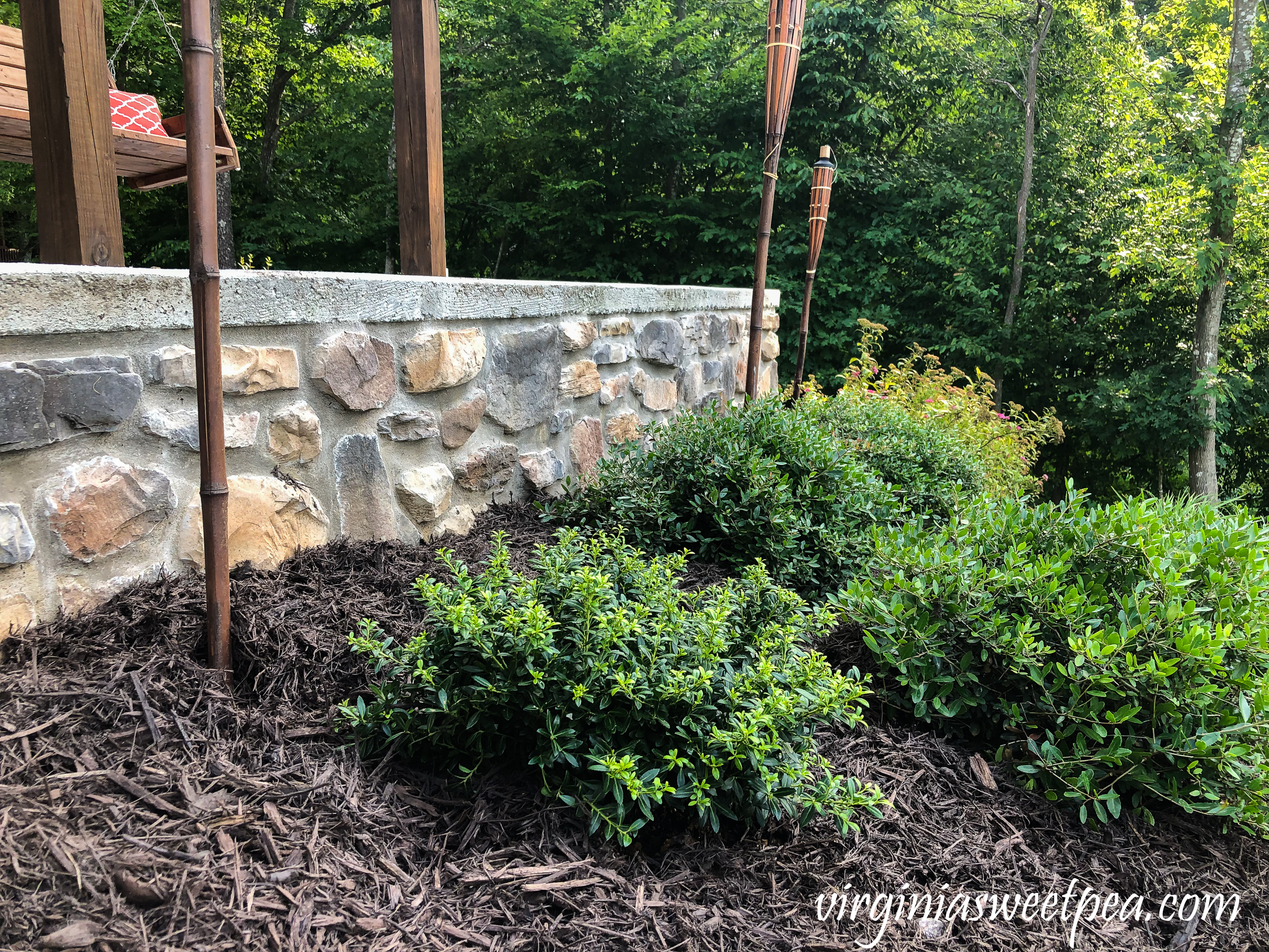

How to add stone veneer added to a patio wall

Project Details – DIY Patio Stone Veneer

We started this project by measuring the length and height of the patio wall and calculating how many square feet of stone that we would need.  We looked back through our paperwork for when the lake house was constructed to find the brand and variety of stone veneer that was used on the foundation.  We were able to order the stone veneer that we needed for this project from Boxley.

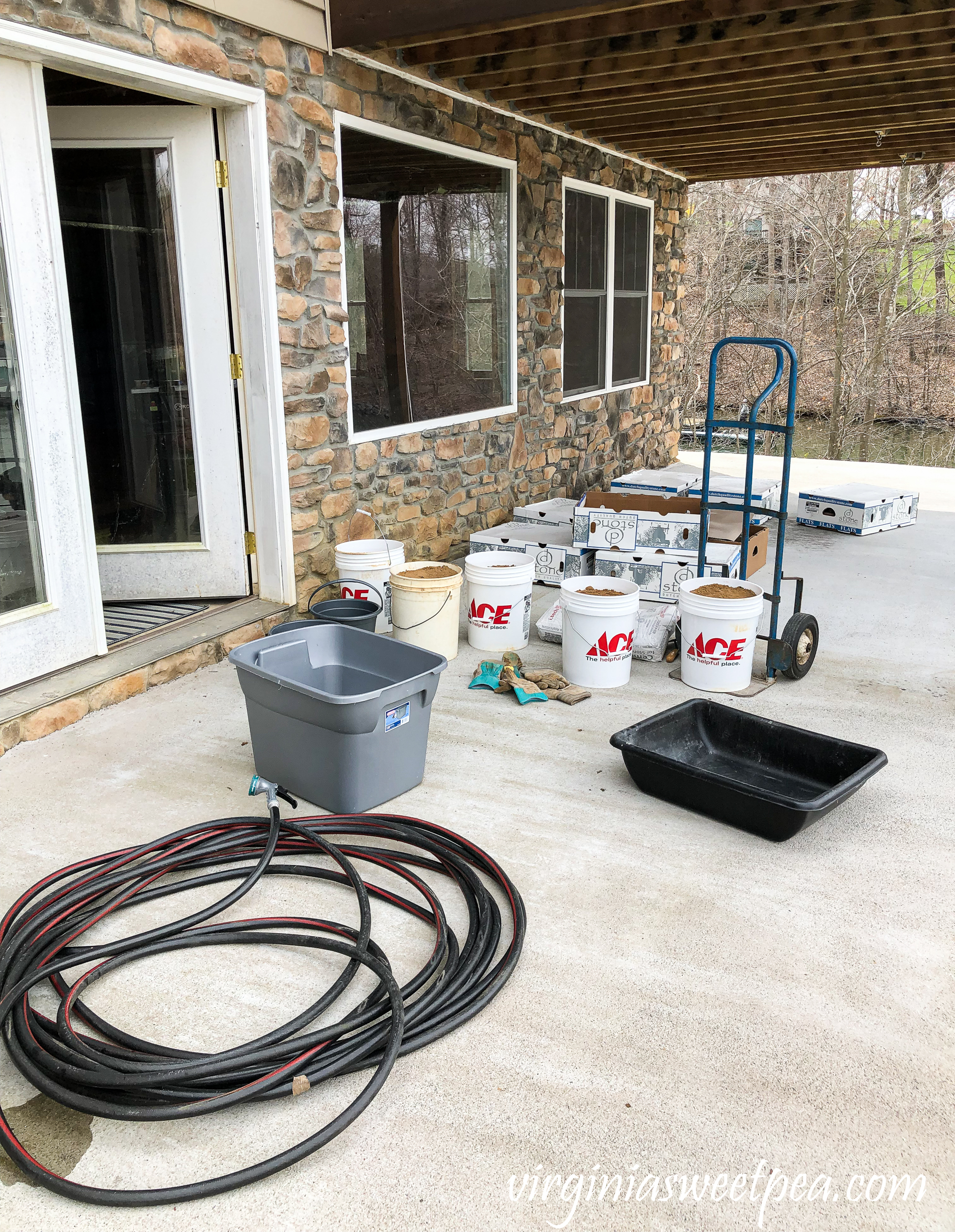

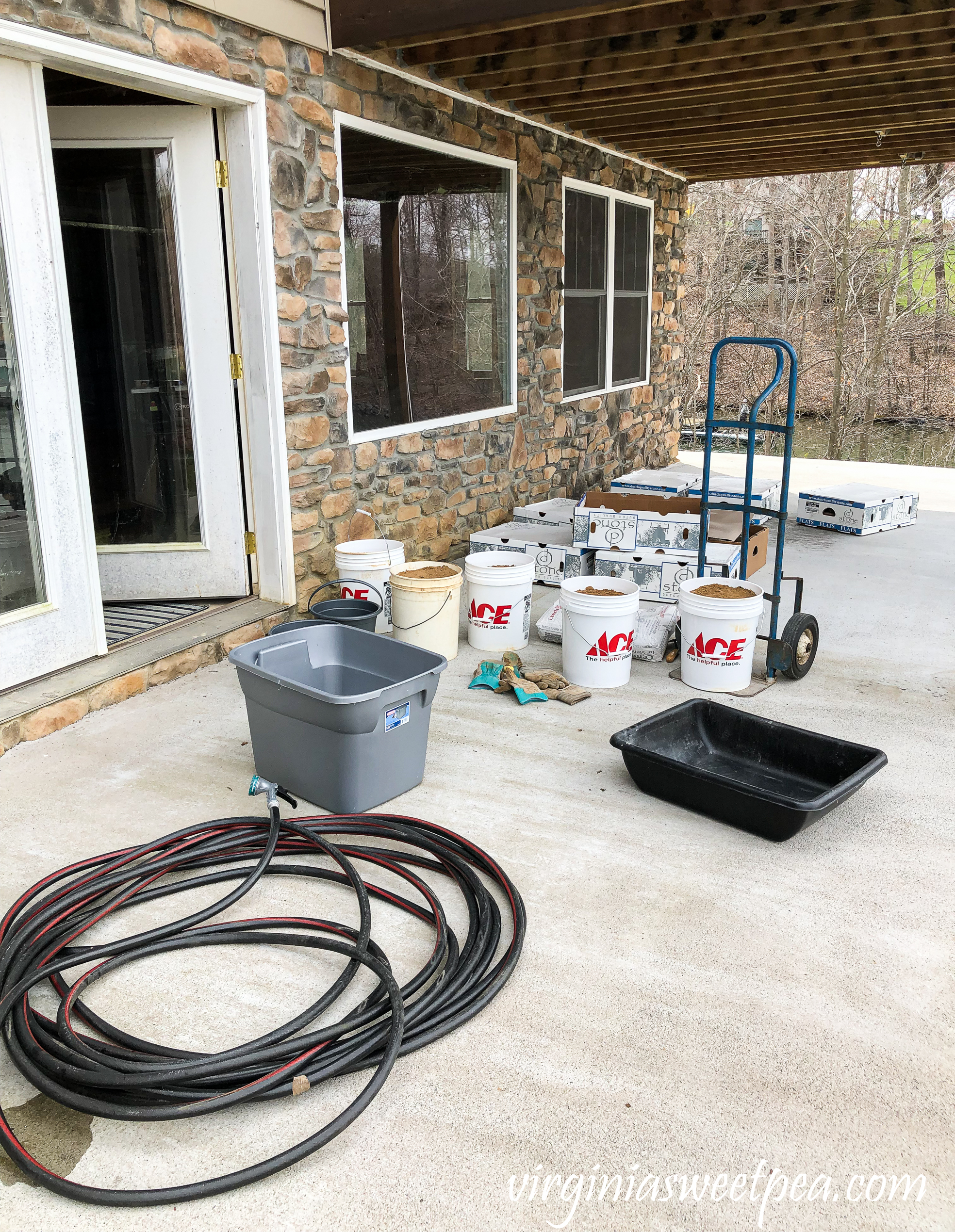

Supplies

6 Boxes of Tuscan Ridge Sienna Flats

1 Box Tuscan Ridge Sienna Corners

2 Bags Stone Hold Mortar

5 – 5 gallon buckets of masonry sand

Concrete Mixing Tub

Tote to hold Stone Hold Mortar

Garden trowel to mix sand and concrete

Trowel to spread mortar

Safety glasses

How to add stone veneer added to a patio wall

Procedure

Step 1 – Expose all of the Foundation

Dig the soil away from the foundation.  We exposed about an additional 6″ of patio block wall in this step.

Step 2 – Apply a Skim Coat of Concrete to Patio Walls

We originally thought that a skim coat of concrete wouldn’t be necessary but after mixing the concrete and trying to apply a few stones, we found that the stones wouldn’t stick.  Plan B was to apply a skim coat and hope that the stones would stick to that.

We mixed a small batch of concrete at a time, used it, and then mixed more.  We worried that mixing too large of a batch at one time would result in it drying out before we could use it all.

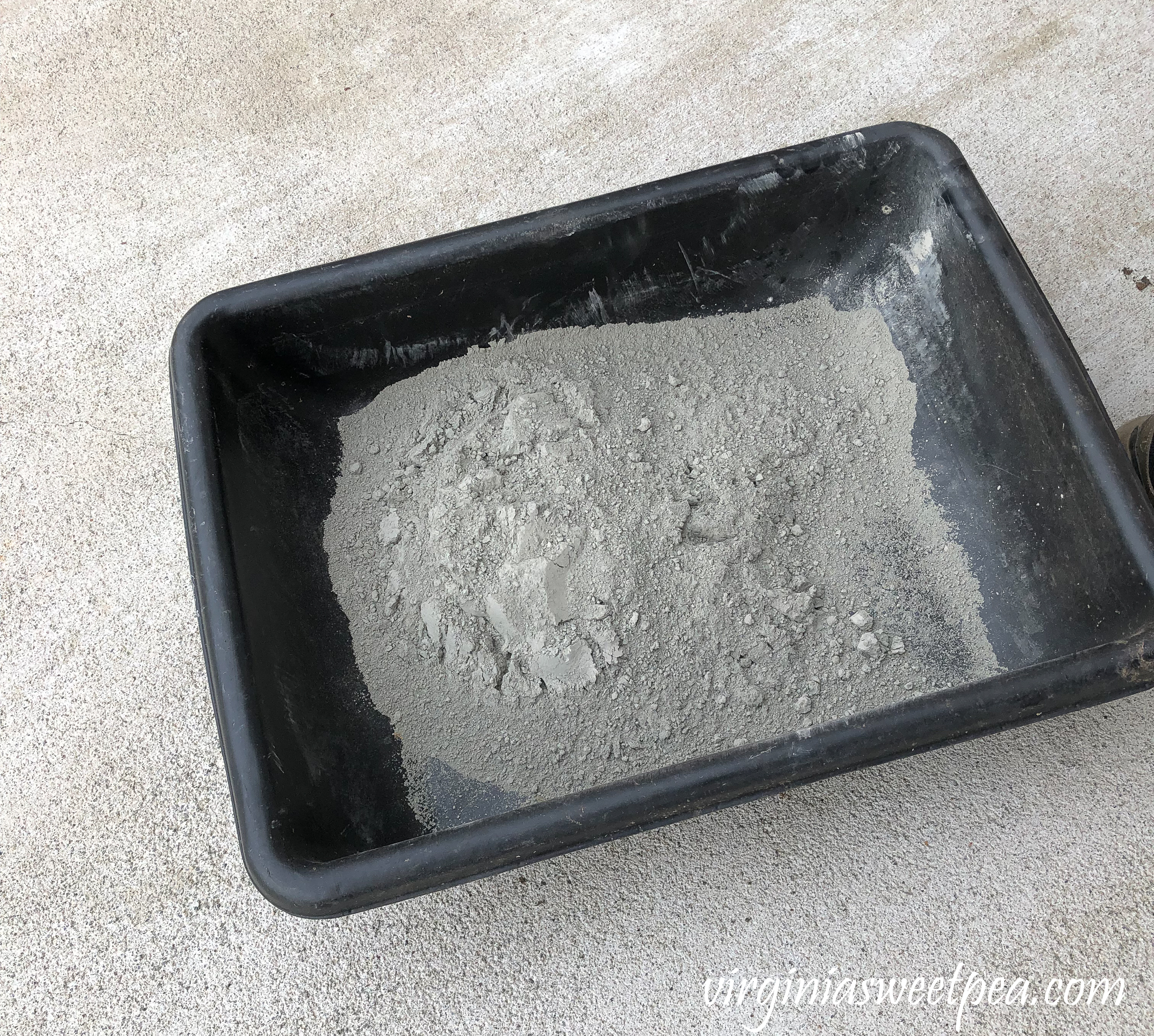

To mix the concrete, we started with mortar in a mixing tray.Mixing concrete to use to face a patio wall with stone veneer.

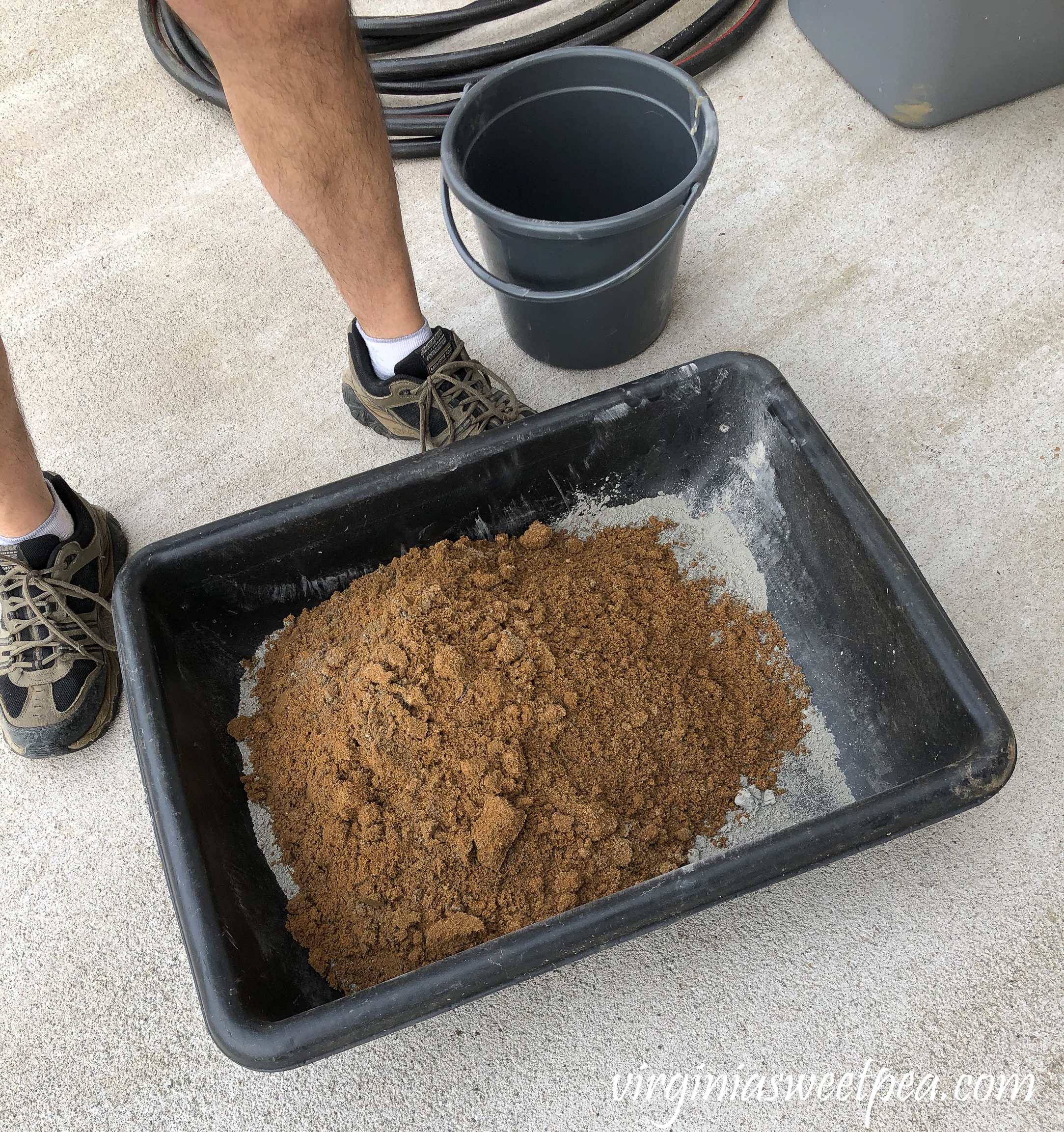

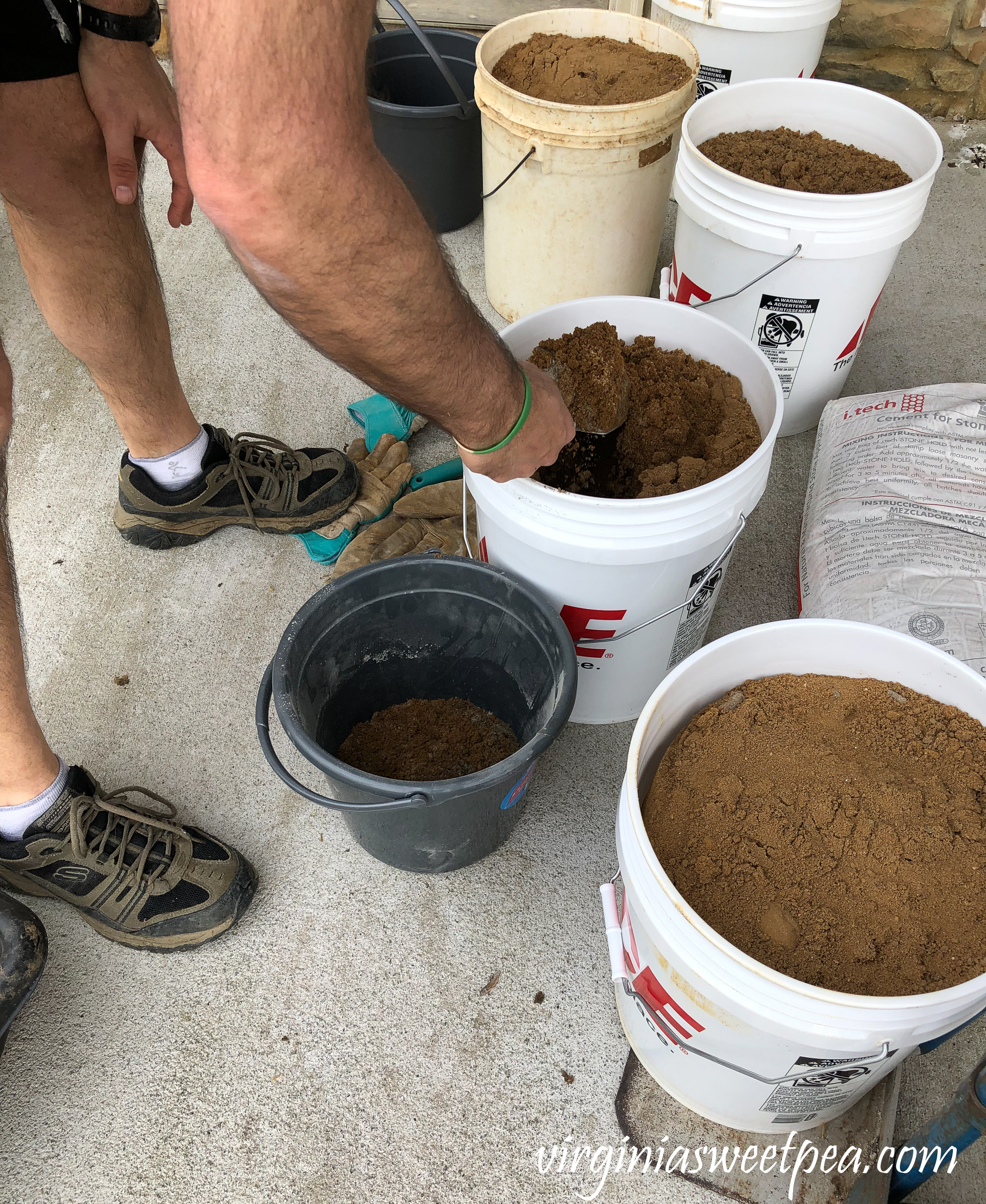

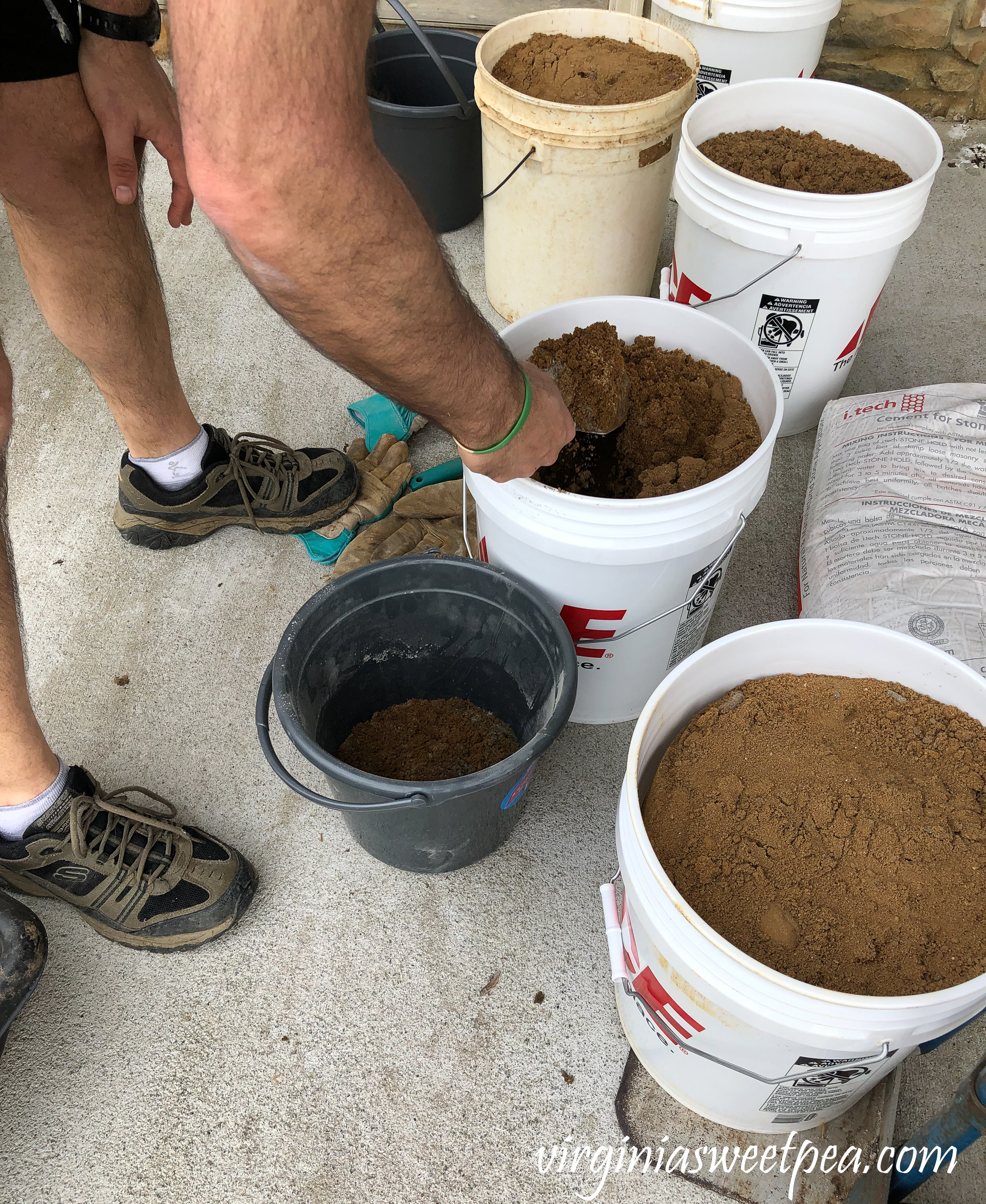

Next the masonry sand was added to the mortar.  We used a small bucket to transport the sand from the heavy 5 gallon buckets to the mixing tray.Mixing concrete to use to face a patio wall with stone veneer.

The mortar and masonry sand were mixed with water until a ~pancake batter consistency was reached.Mixing concrete to use to face a patio wall with stone veneer.

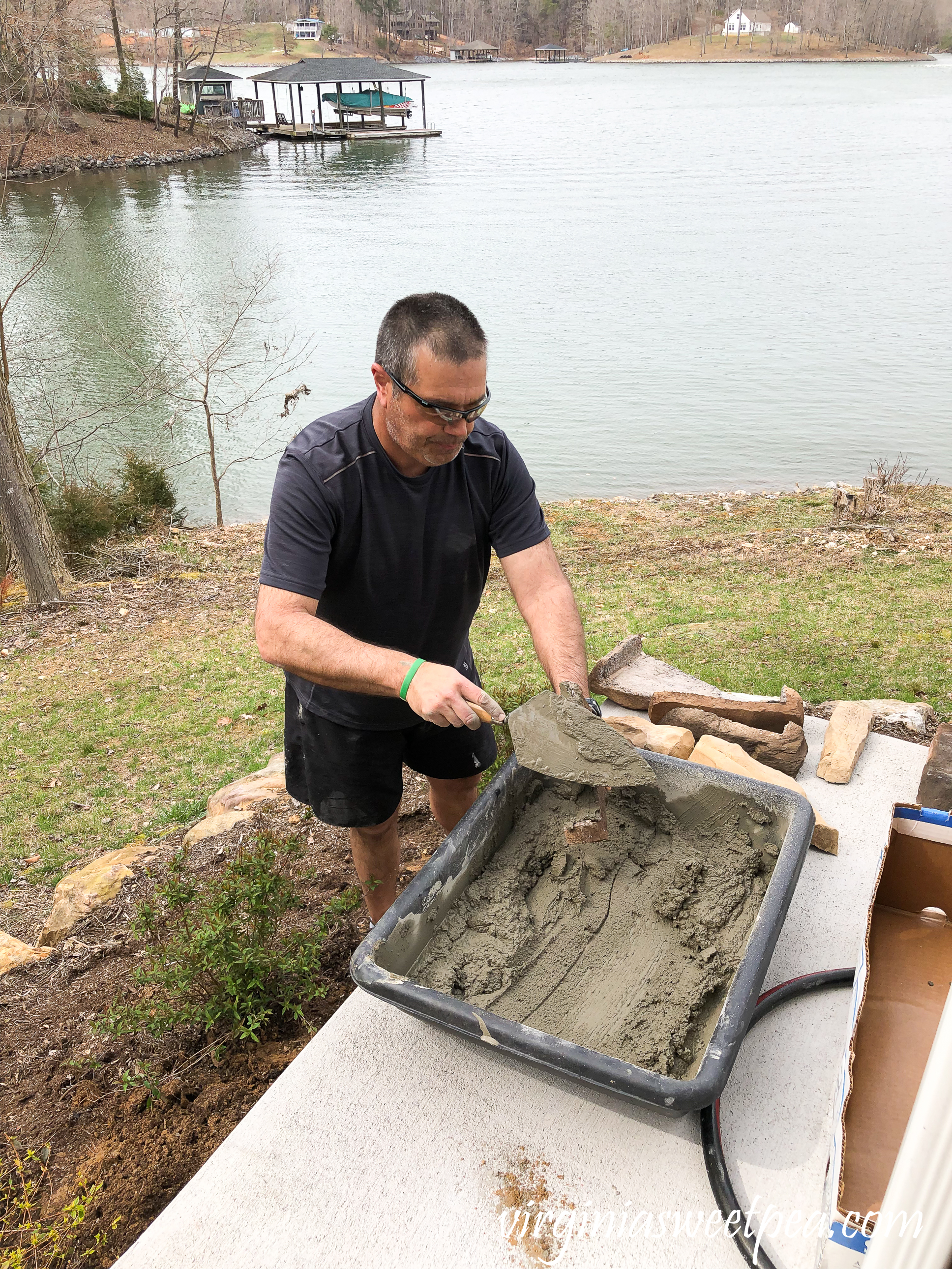

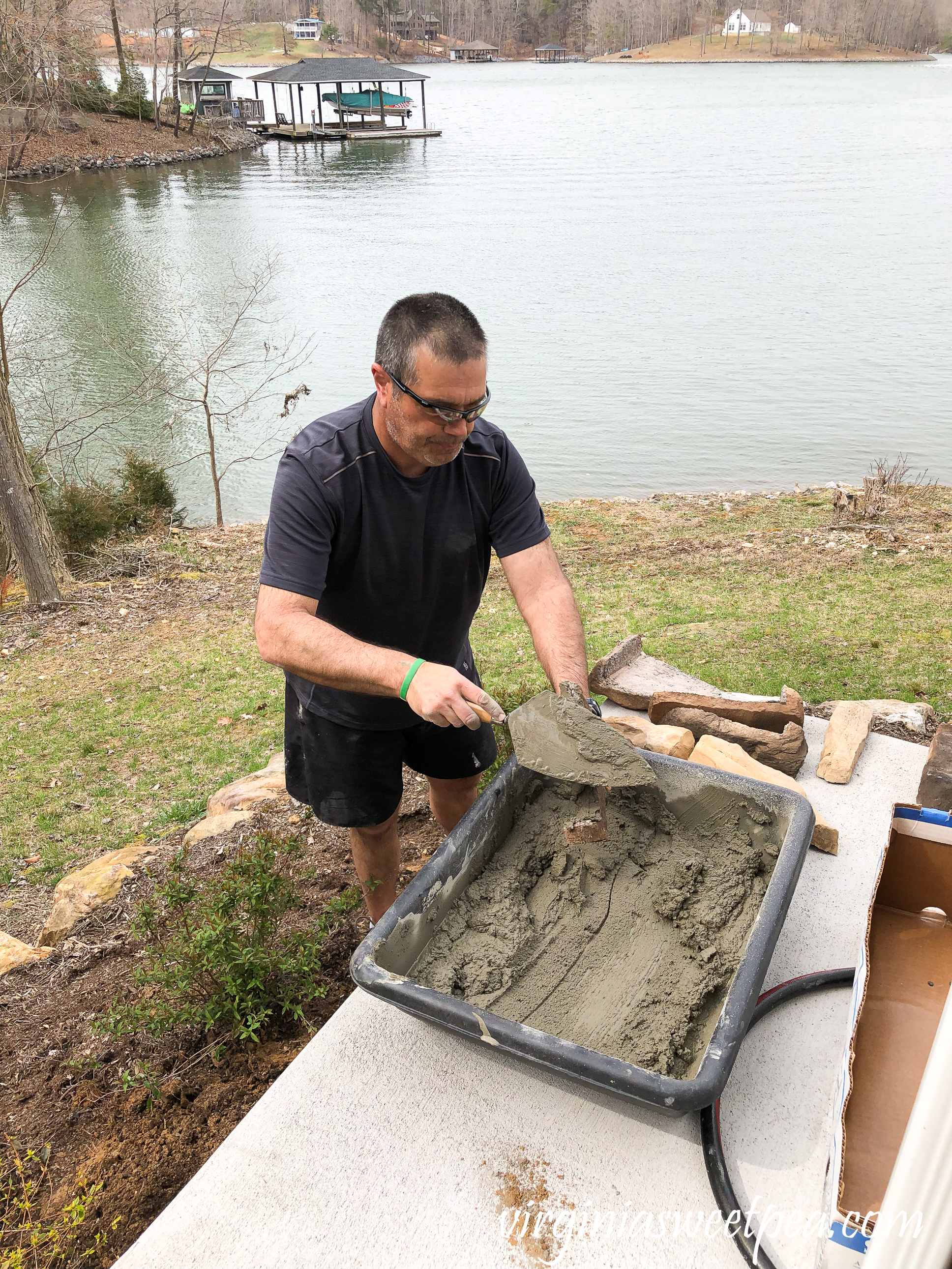

After the mixing, Mr. SP applied a thin coat to the patio walls.
Mixing concrete to use to add stone veneer added to a patio wall

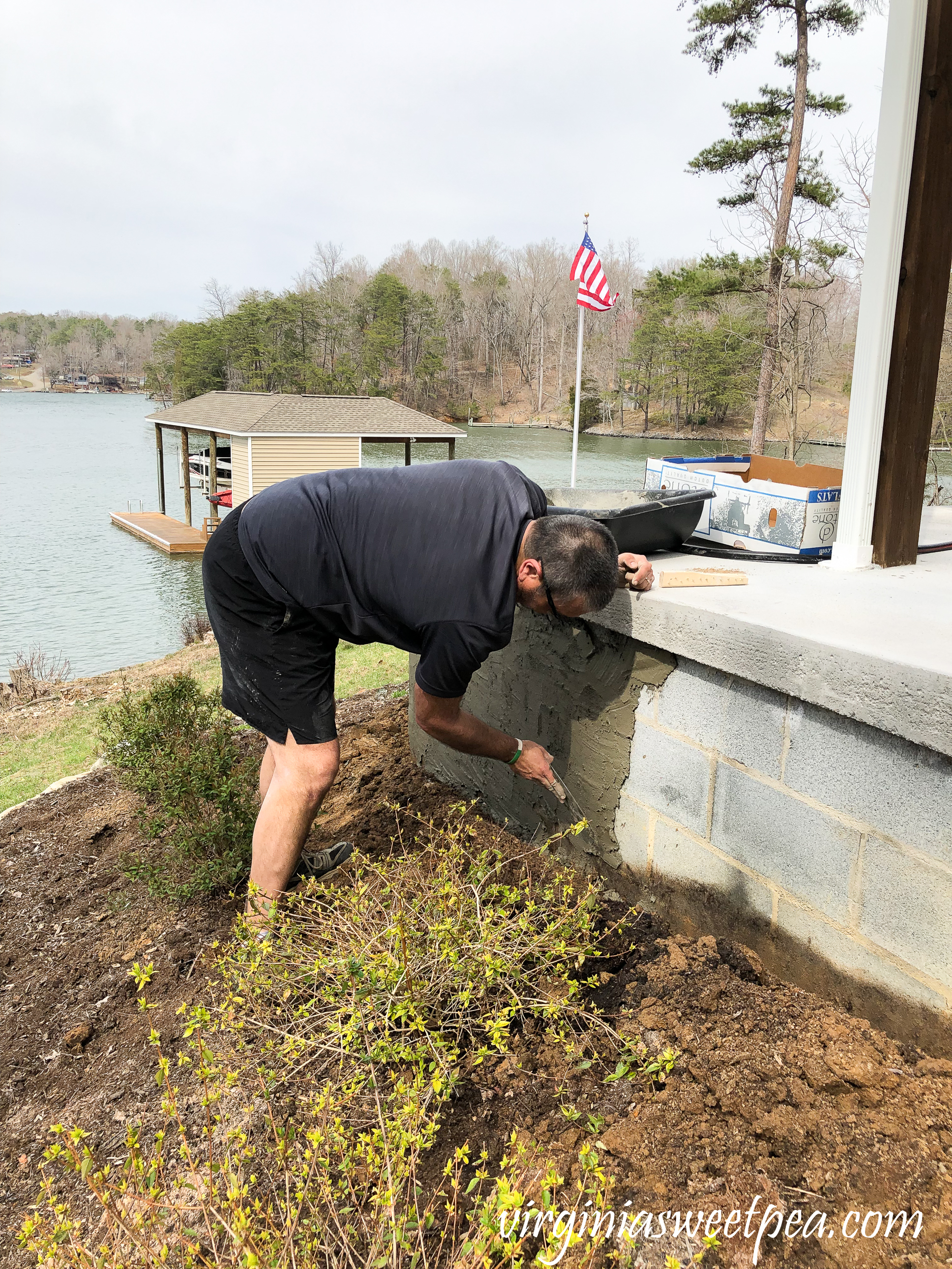

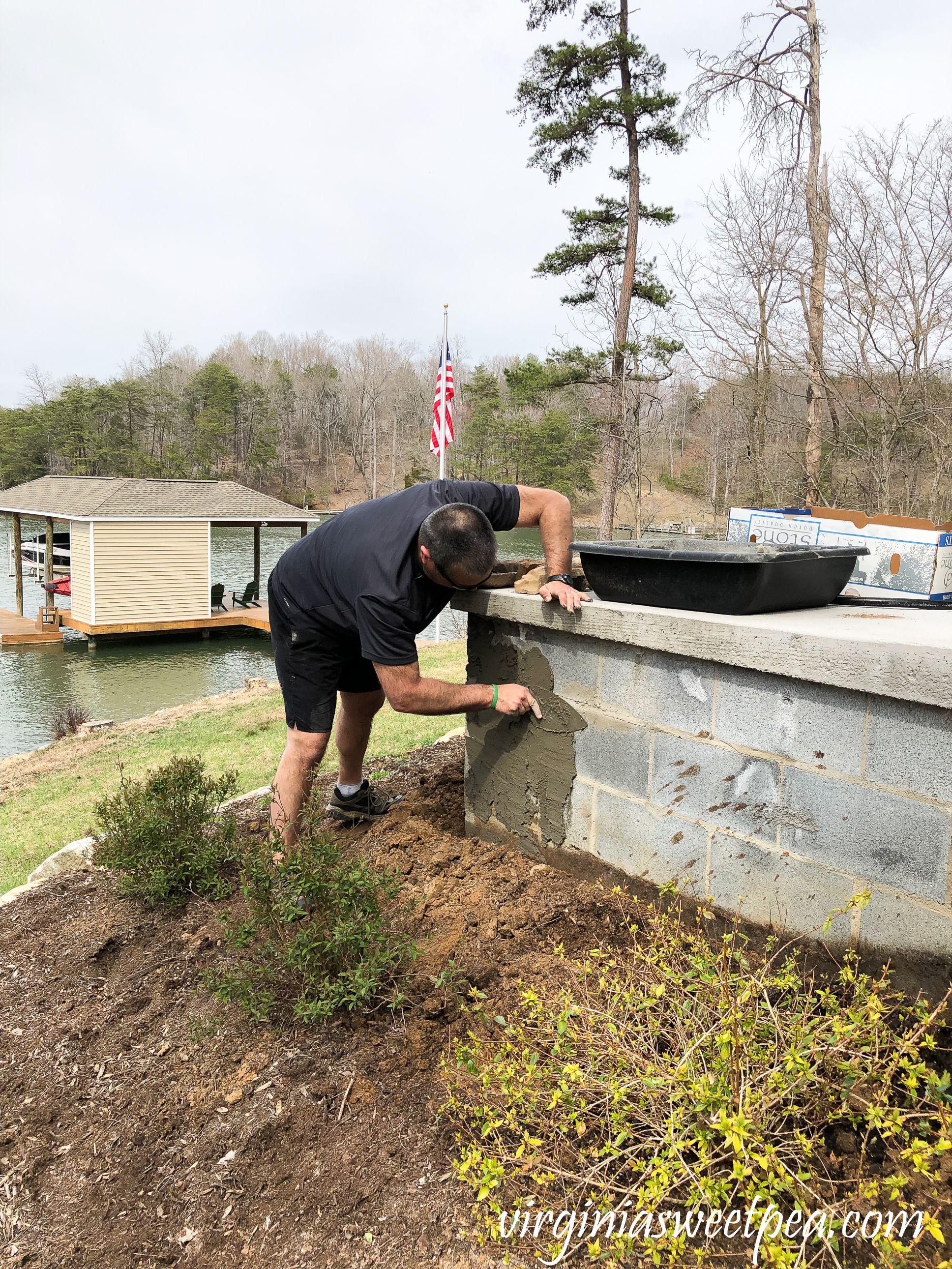

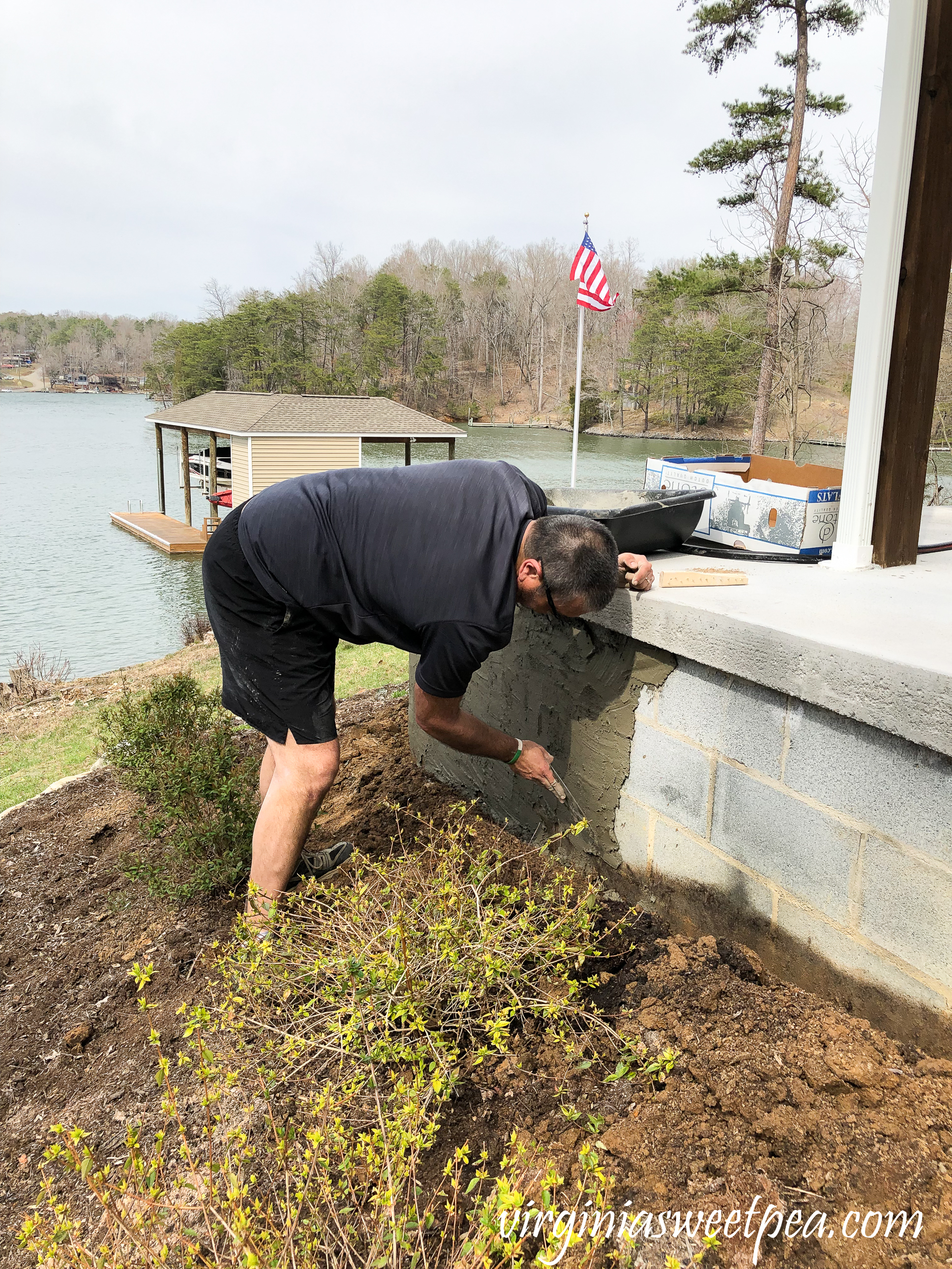

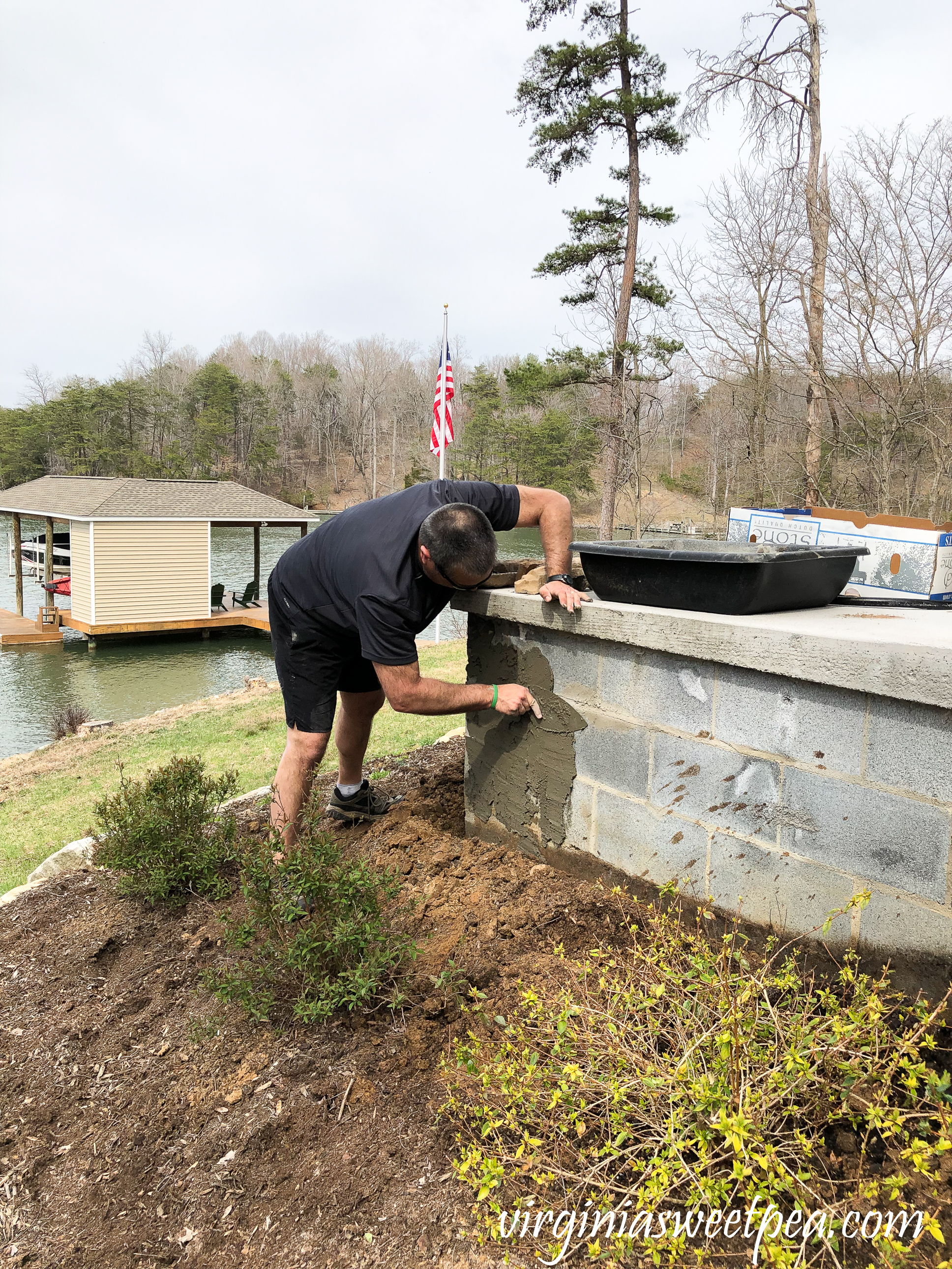

Here you can see that he is applying a thin layer (< 1/2″) of the mixture to the block wall.Patio wall with skim coat of concrete.

This shot also shows how we dug the soil away from the block wall.Adding a skim coat of concrete to a patio wall.

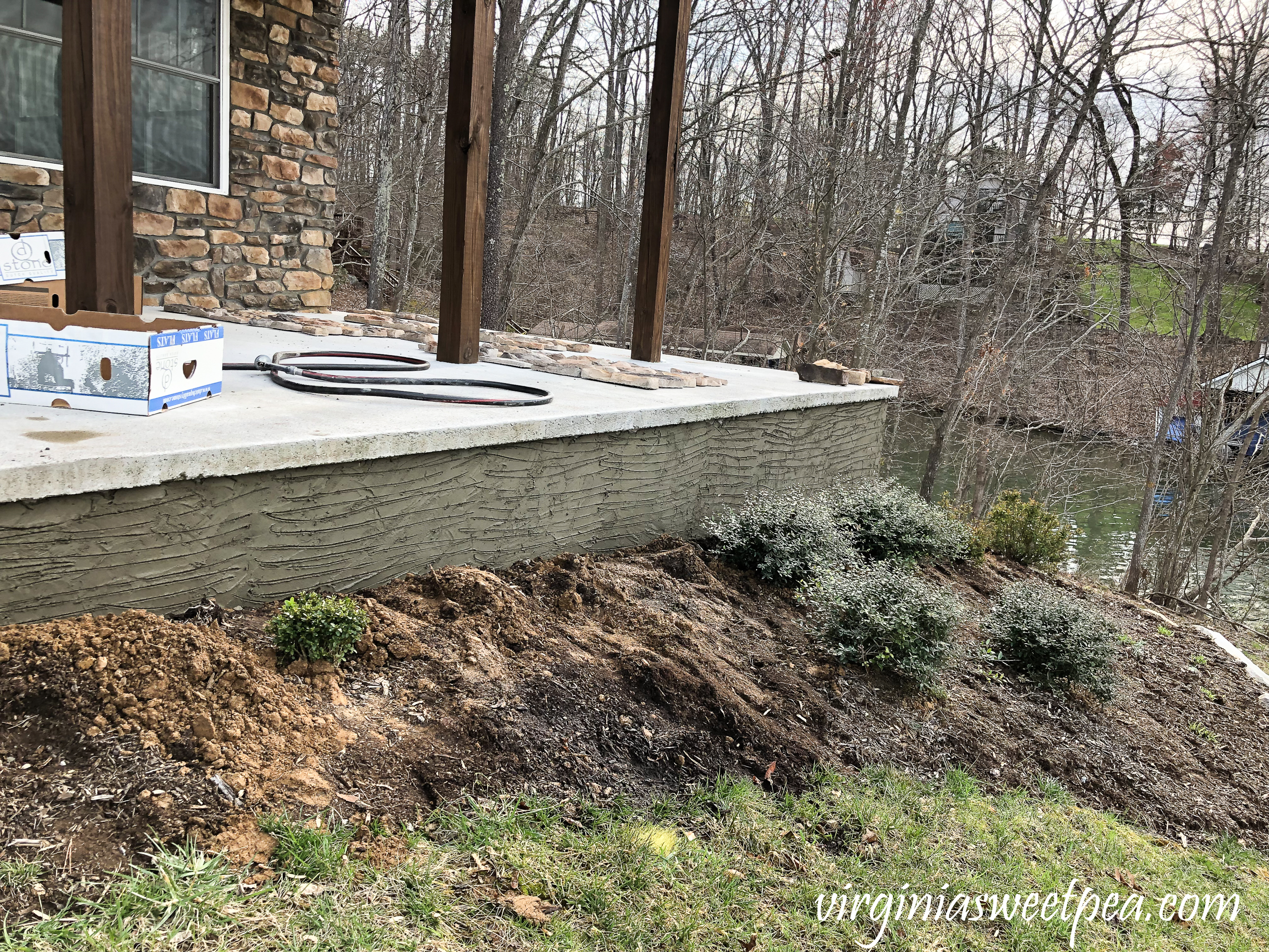

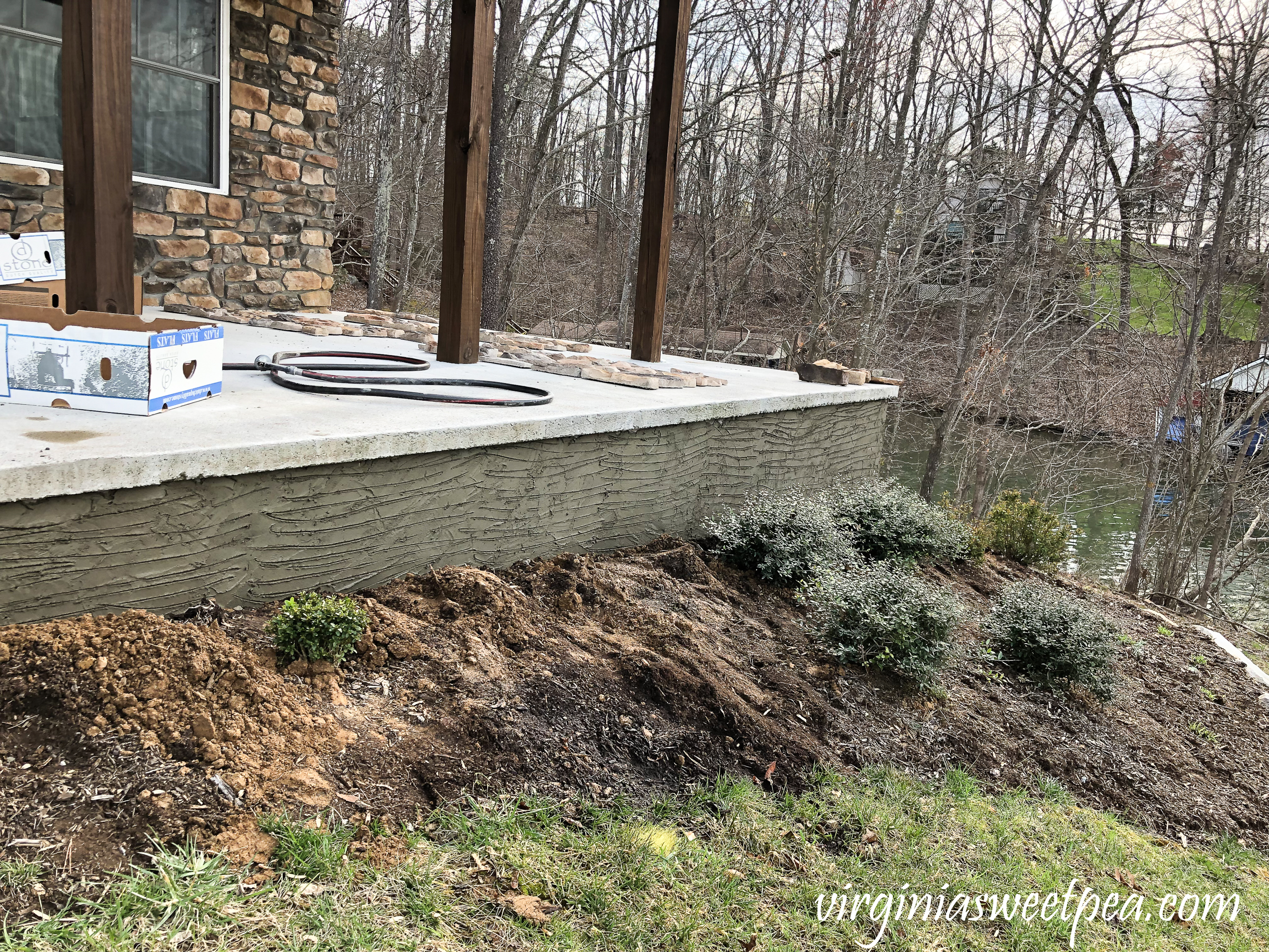

While the concrete was still wet, it was roughed up with a DIY tool – a paint stirrer with a few nails stuck in it.How to add stone veneer added to a patio wall

We stay at our lake house typically just on weekends and resumed this project the next weekend which gave the skim coat of concrete plenty of time to dry.

Step Four – Face the Patio with Stone Veneer

We started adding the stone veneer at the corner using the corner pieces that we ordered.  We only needed a few pieces but had to order an entire box, so we have a lot of corners left over.

We mixed a small batch of concrete and sand as shown above and got to work.  Adding stone veneer is a lot like tiling a backsplash.  Pick up some concrete on your trowel, smooth it across the back of the stone, then push the stone into place.  We found that it was helpful to hold the stone in place for about a minute to make sure that it wouldn’t slide.

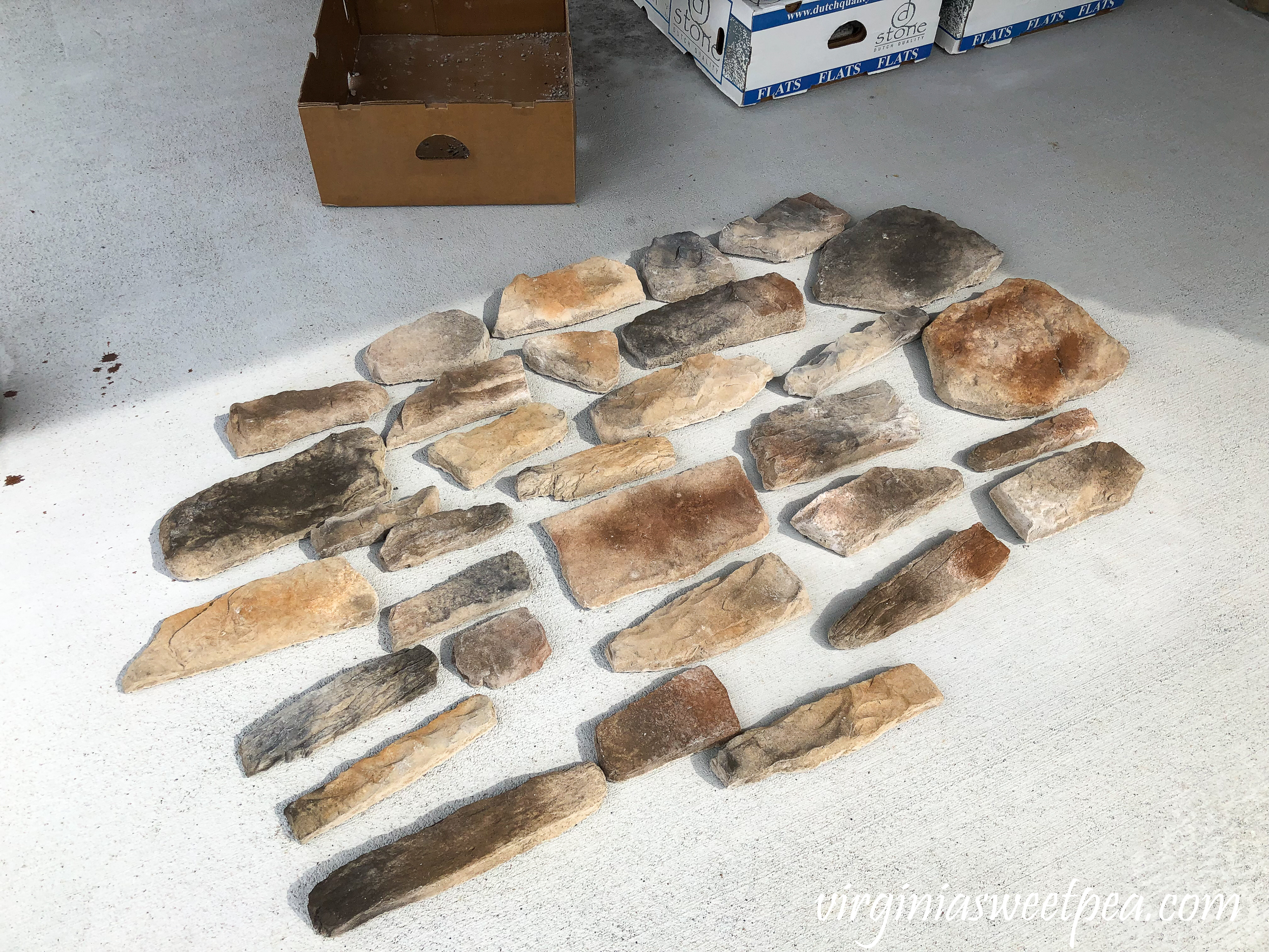

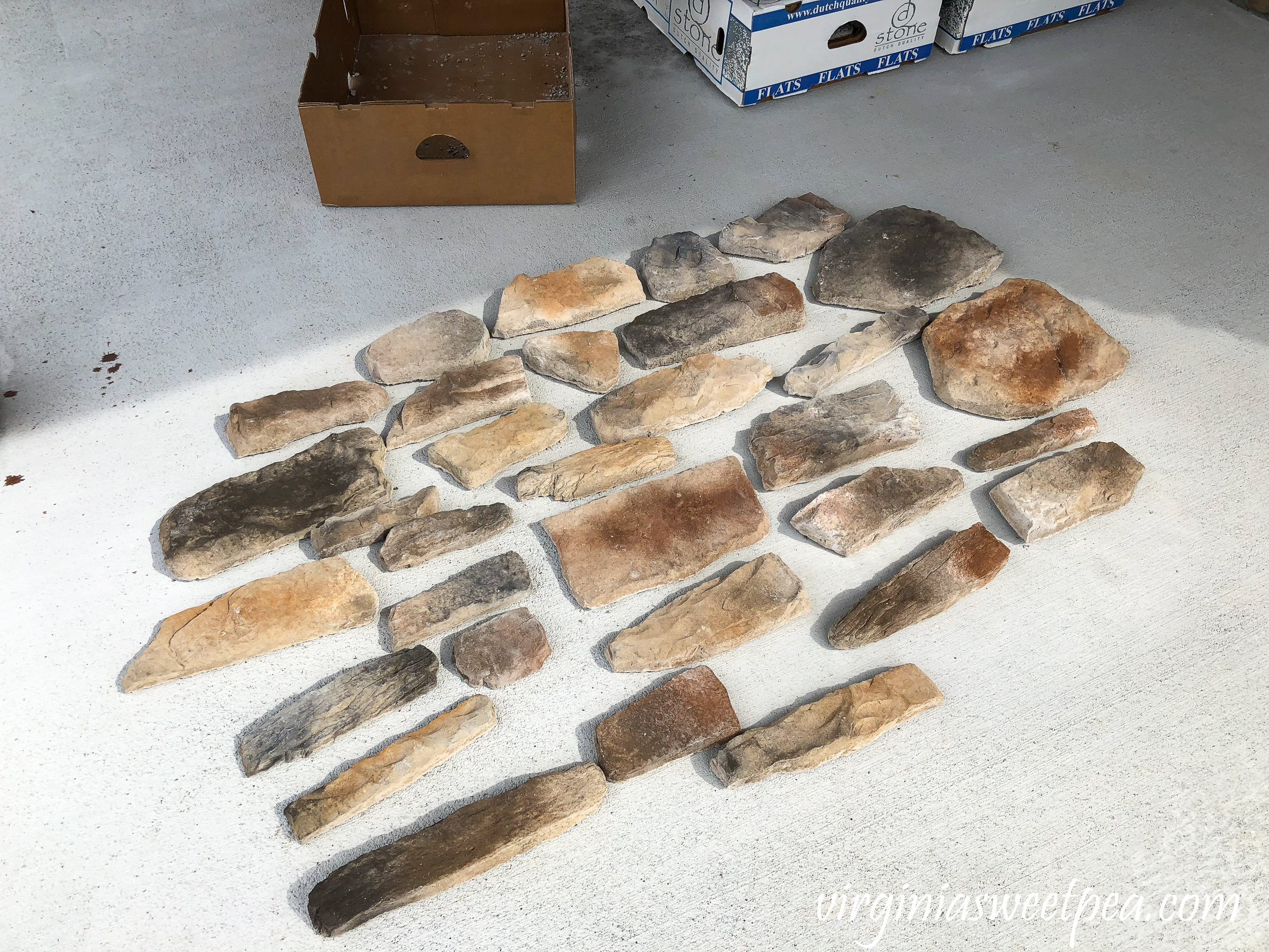

While Mr. SP added the corners, I worked on laying out the stone in a pleasing pattern.Tuscan Ridge Sienna Flat stones used to face a patio wall.

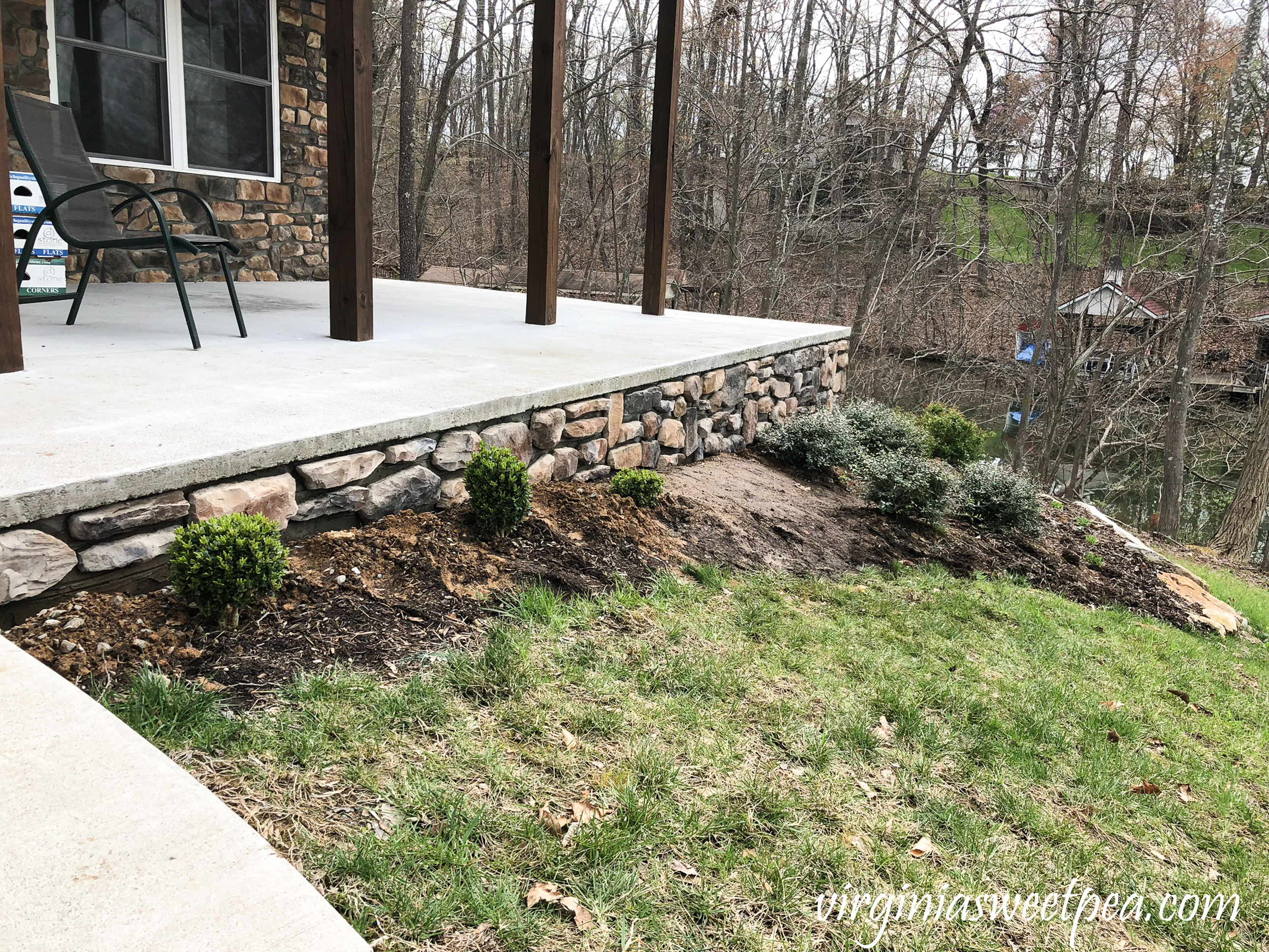

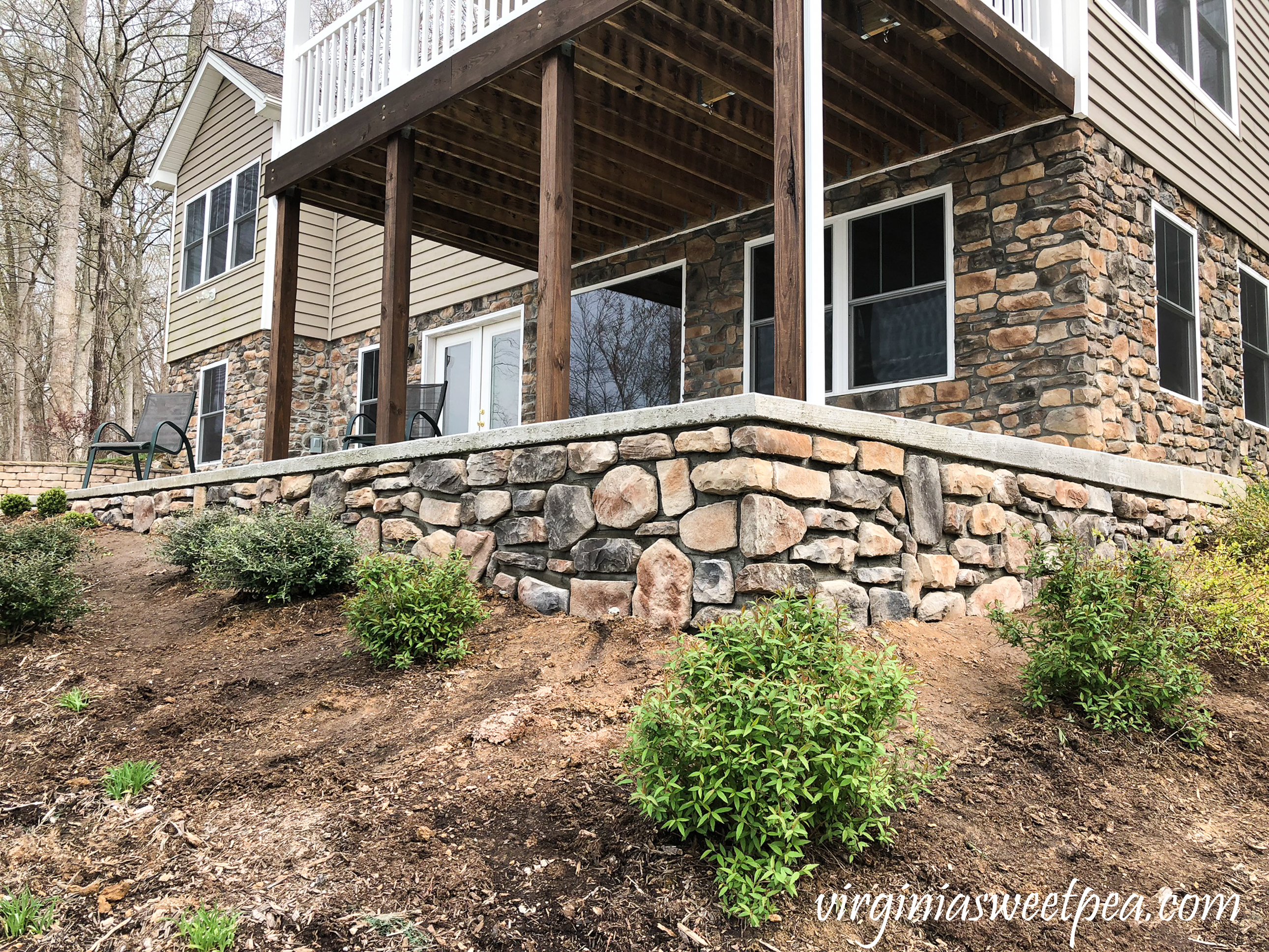

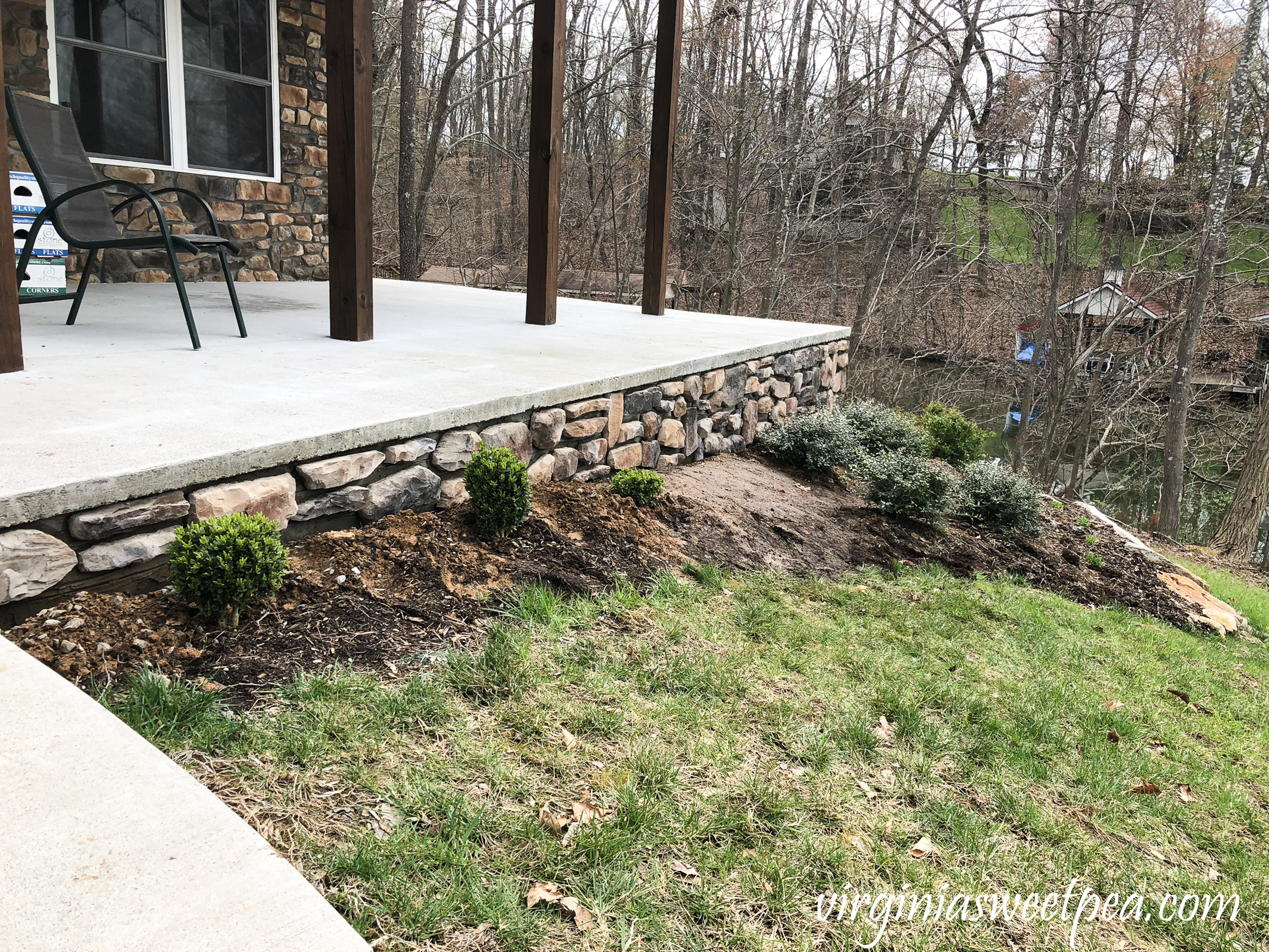

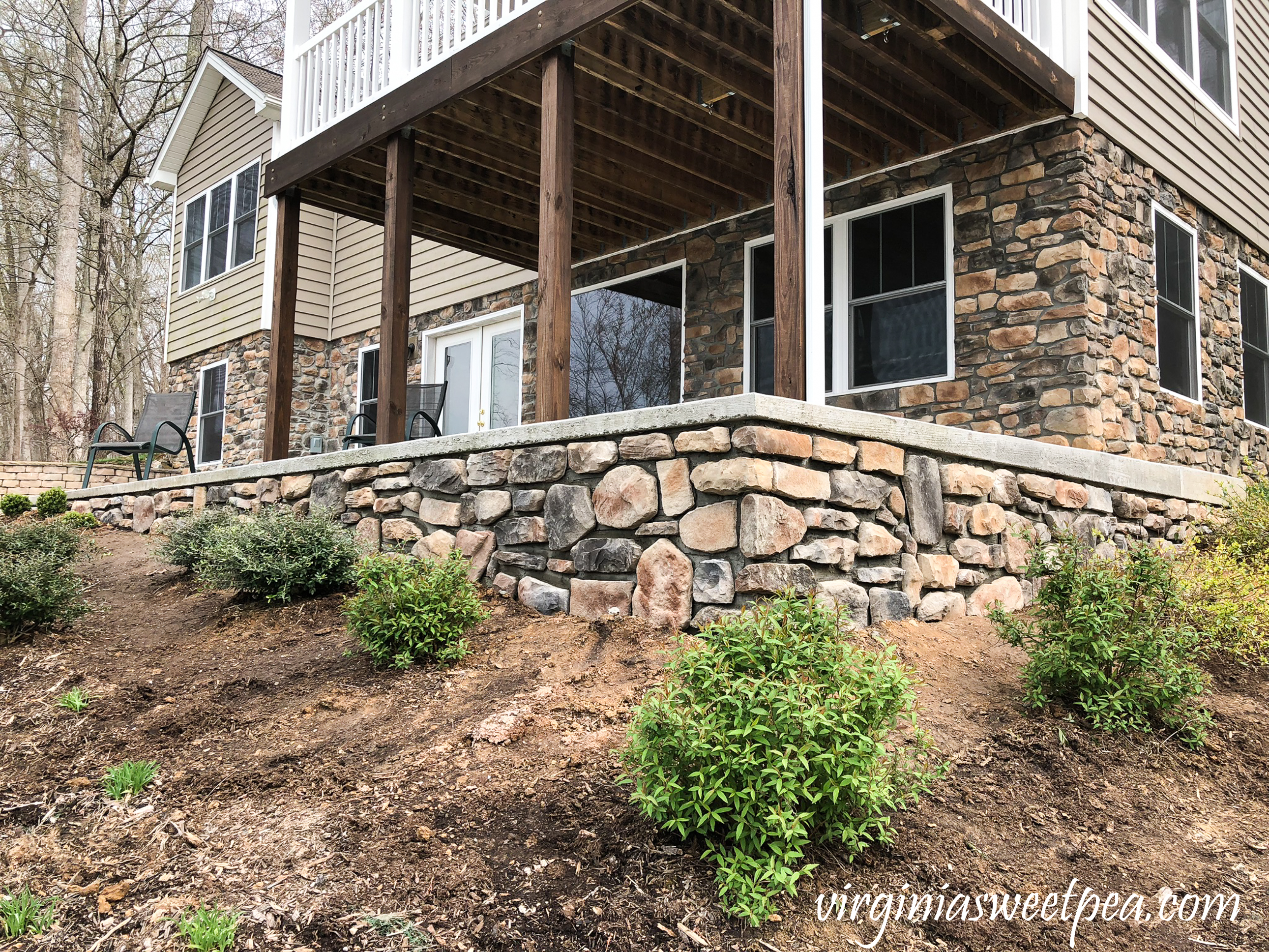

This was a messy job and I didn’t get any pictures of us applying the veneer stones to the porch wall but here’s how it looked a few hours later.How to add stone veneer added to a patio wall

Figuring out which stone to use where ended up feeling like part puzzle and part art project.How to add stone veneer added to a patio wall

Step Five – Tuckpoint the Wall

Tuckpointing means to fill in between the stones with mortar.  We mixed our mortar, poured it into a concrete “pastry bag” and got busy.  We quickly found that tuckpointing is an art and that our initial effort at it was not satisfactory.  We stopped for the day, watched some YouTube videos and tried again the next day.  The results the next day were no better so rather than do the tuckpointing ourselves, we hired someone to do it.How to add stone veneer added to a patio wall

It took us a while to find someone to do the job, thus the delay in finishing this project by my May 26 birthday.

Lucky for us, when the guy we hired got to our house, he informed us that he did our foundation stone veneer.  $350 later, our patio walls were beautifully tuckpointed.  Sometimes you DIY, sometimes it’s worth it to pay a professional.  We both agreed that it was 100% worth $350 to finish this job.How to add stone veneer added to a patio wall

A Final Look

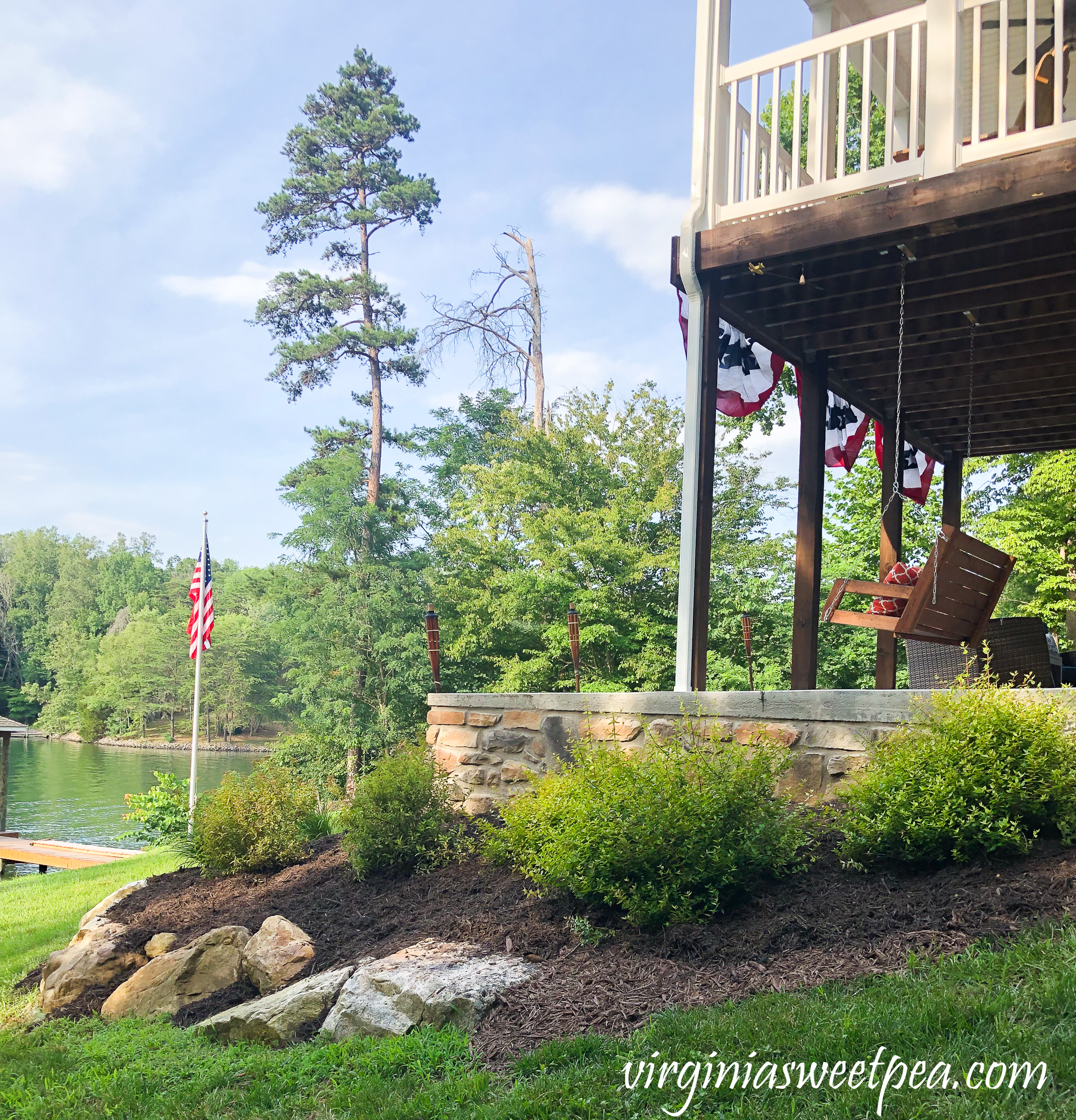

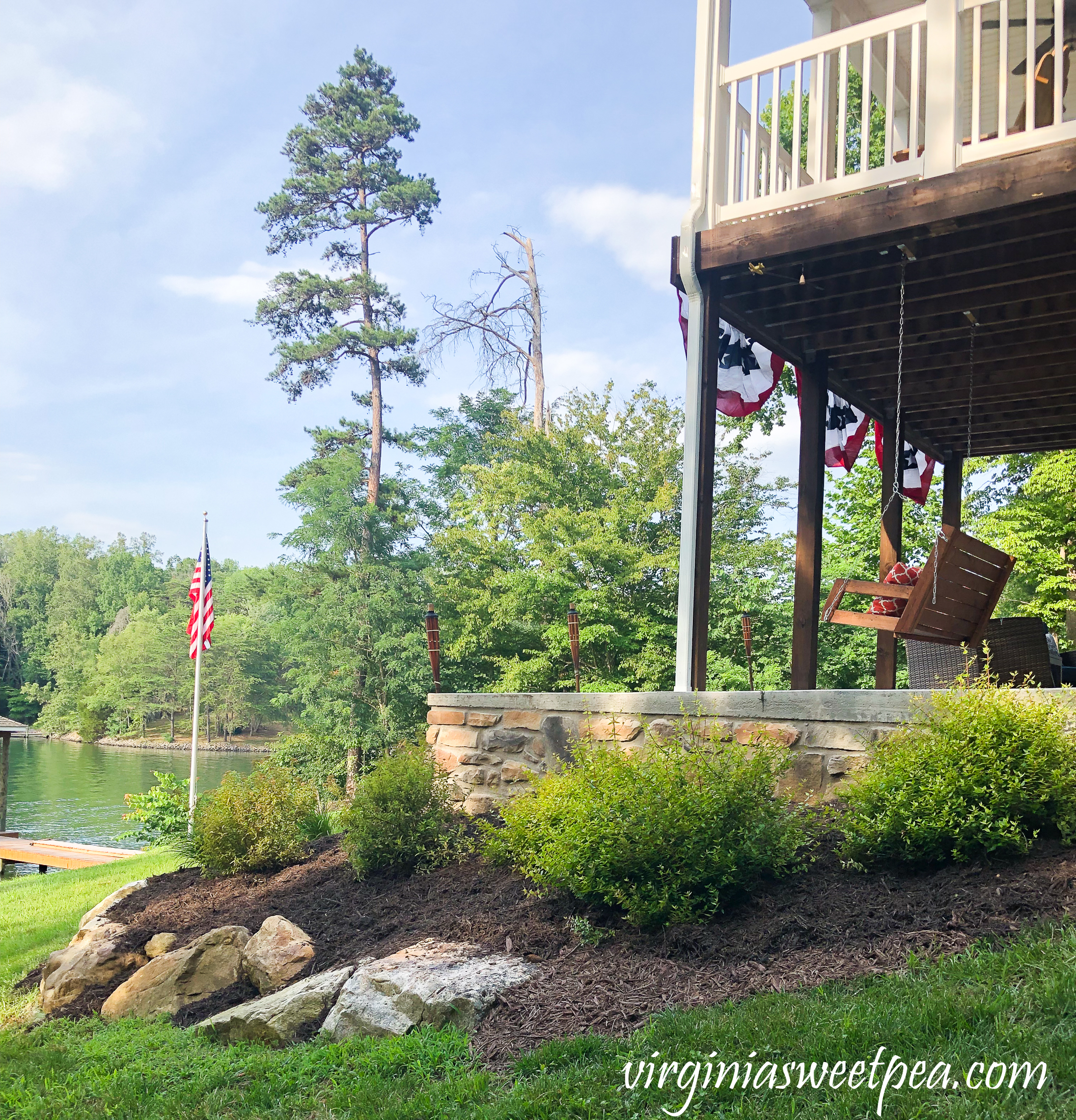

A flagpole is another new addition to our lake property.  Mr. SP gave this to himself for his birthday in April.  Our neighbors love it and it makes it easy for friends to find our house by water as we are the only home in our cove to have a flagpole.  The bunting was a 4th of July addition to our deck and we love it so much that it will stay in place until fall.Deck and Patio lake view at Smith Mountain Lake, Virginia house

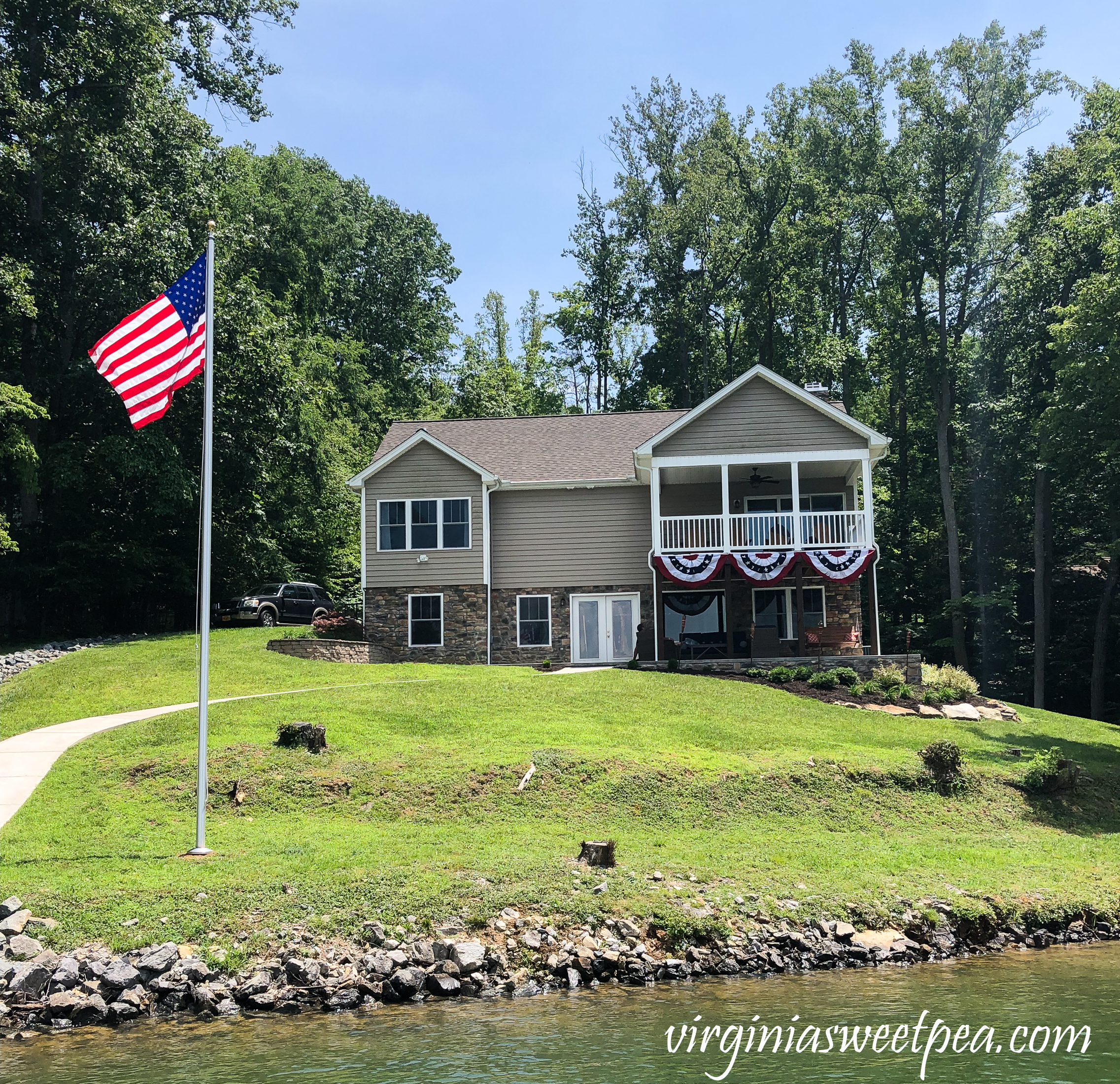

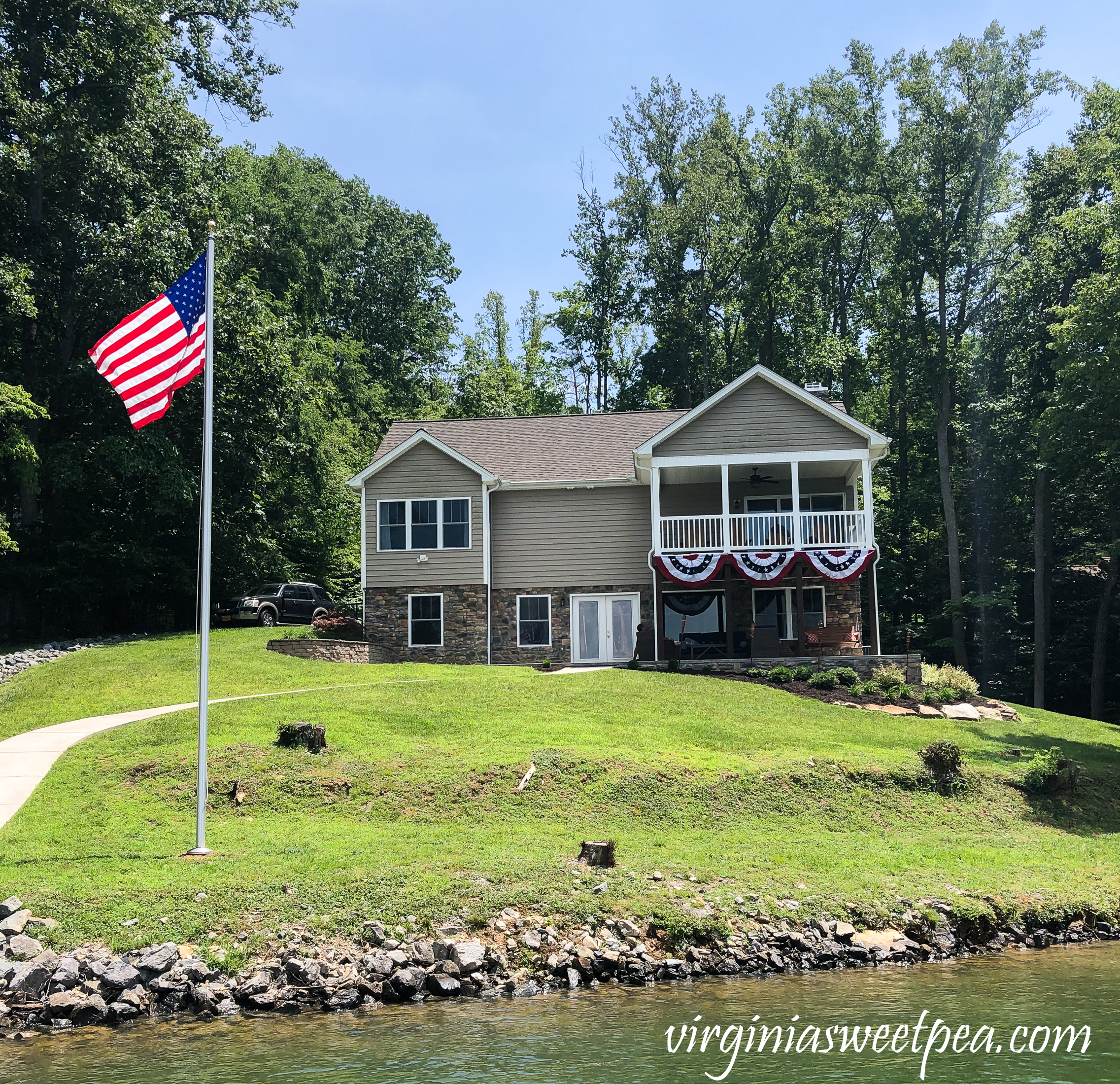

This shot was taken from our floating dock.  We think that the lake water level used to have been higher based on the ledge above the shoreline.  Speaking of shoreline, our rip-rap took a beating this past winter when the lake levels stayed high.  On our “want to do” list is to add more rip-rap.  We also plan to work on getting rid of tree stumps.House at Smith Mountain Lake, Virginia with flagpole in the yard

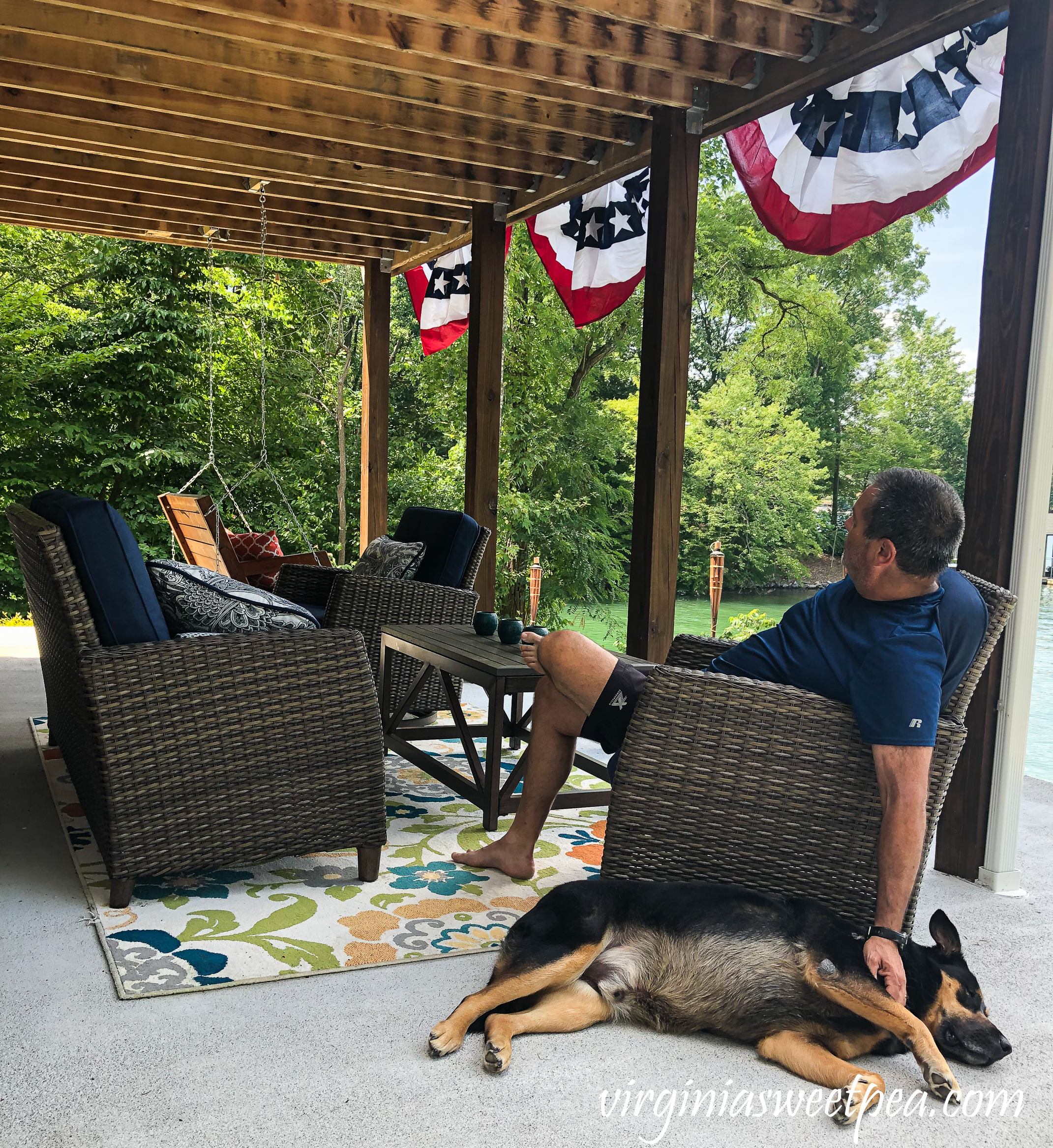

On a typical summer evening you’ll find us relaxing on our patio with Sherman.  Relaxing on the patio at Smith Mountain Lake

We are so happy that this project is finally complete and I’m still admiring it every weekend.
