DIY Wooden Crates

DIY Wooden Crate Tutorial by virginiasweetpea.com



Last week when I shared tips for pantry organization, I showed you the DIY wooden crates that Mr. SP and I made to hold Sherman’s medicines, new toys, and treats on a shelf in our pantry.  It’s so nice to now have Sherman’s things contained by these crates and not randomly shoved onto one shelf as they were before.

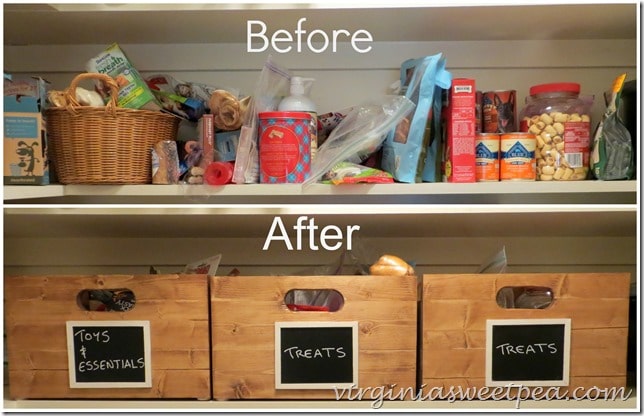

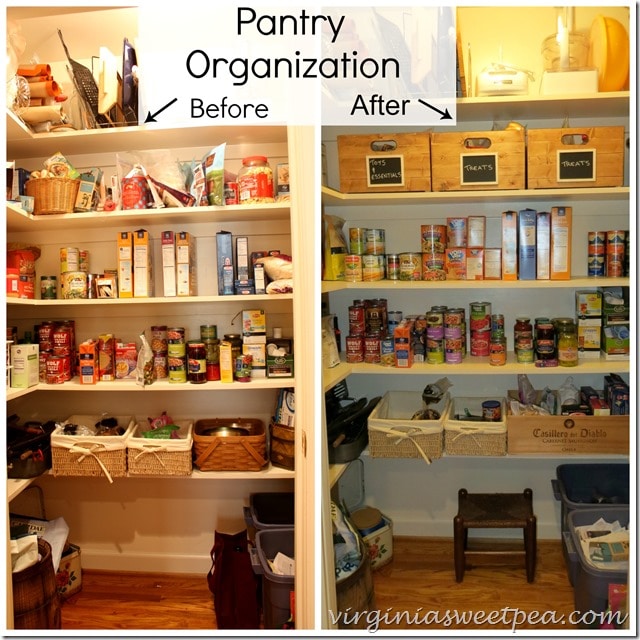

Sherman's Shelf Before and After



When we got a dog I had no idea that his things would take so much room!  Now my eye goes to human food when I open the pantry door instead of that messy dog shelf.

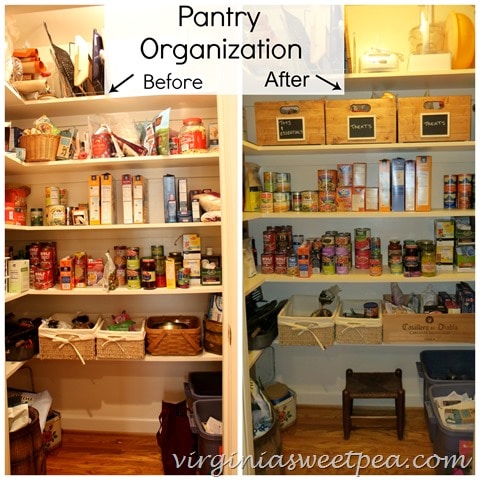

Pantry Organization Tips - Before and After- www.virginiasweetpea.com

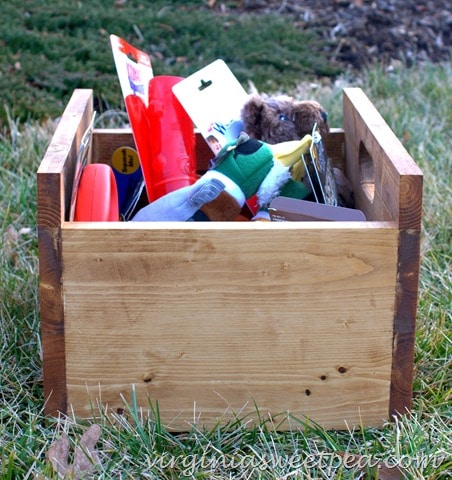

We made these wooden crates to fit our shelves so they are opposite dimensions of a regular crate, the width is longer than the depth.  Handles made them easy to slide on and off the shelf.

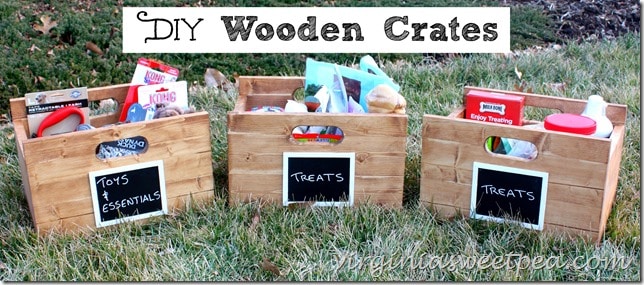

DIY Wooden Crate Tutorial - Custom Made to Any Size

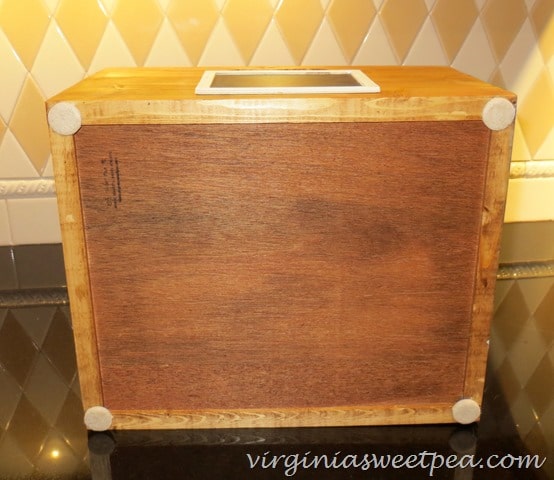

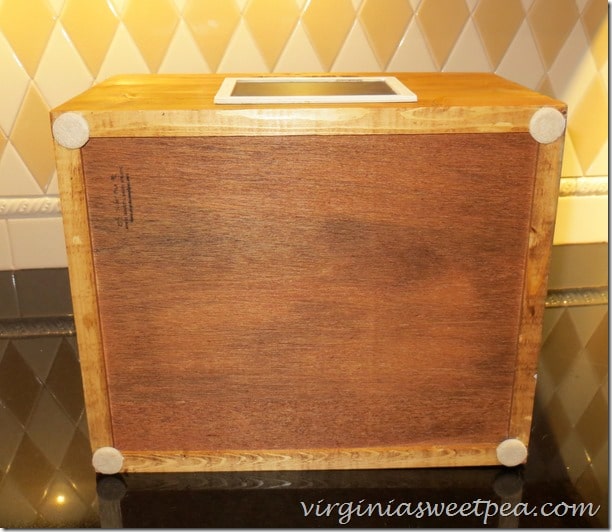

Felt pads on the bottom of the box prevent damage to paint on the shelf.

 DIY Wooden Box:  Felt Sliders Keep a Wooden Box from Scratching the Shelf



The first step to make our DIY wooden crates was to determine the dimensions of each crate.  We designed the crates so that they would be 14 1/2” wide x 12” deep.  The front and back sides are 8 3/4” tall and the sides are 7 1/8” inches tall.

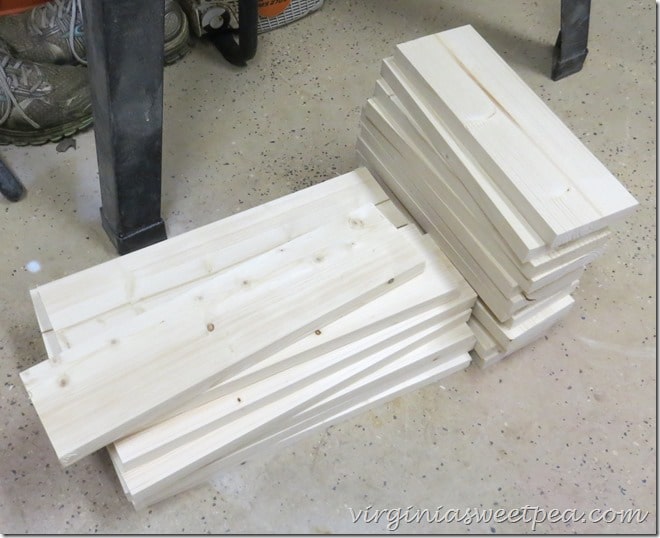

We used 4” (3.5” nominal) wide x 6’ long pine boards from Home Depot to make our crates.  We started by cutting 12 (14 1/2”) pieces for the fronts and 12 (10 1/2”)  pieces for the sides.  The intent was to glue the boards on edge to make a wider board for use (i.e. glue 2 boards edge to edge per side).

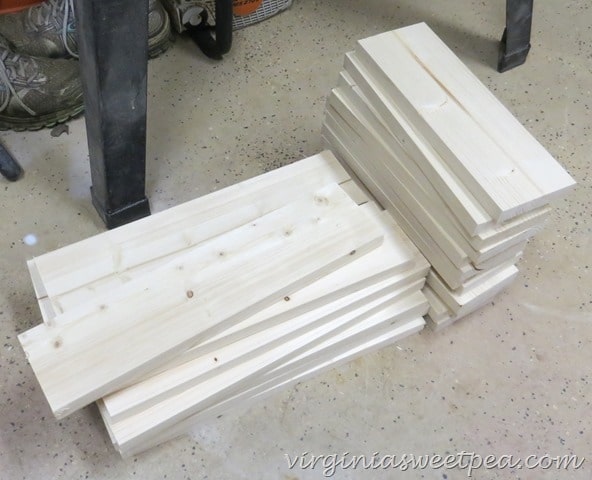

Boards Cut for DIY Wooden Crate

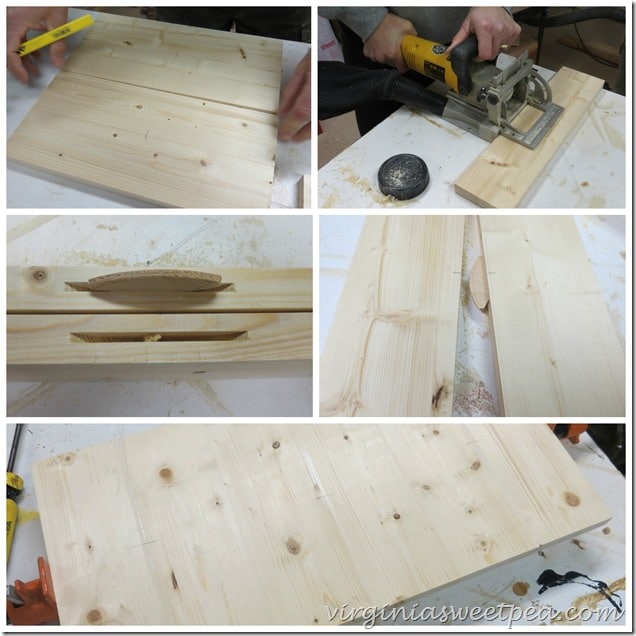

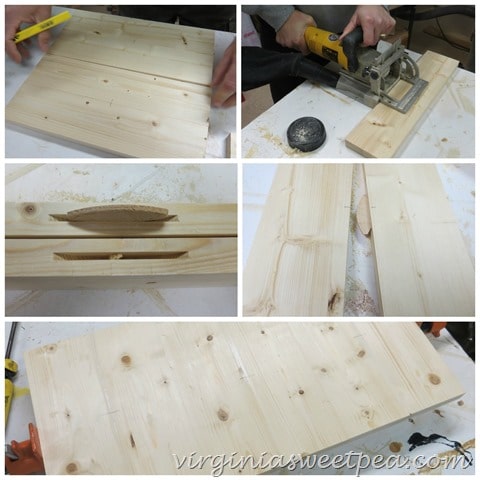

We decided to biscuit the boards together to make the joints stronger, and to align the boards during glue-up.   Each pair of boards were lined up, and were marked with a line where each biscuit joint would be cut.  The pieces were also marked a,b,c, etc. so that we could easily match them after the biscuit joints were cut.  The edge of each board and the biscuit joint were given a coat of glue and pressed together.  (Glue not shown in the photograph.)  We clamped three sets of sides or ends together at a time until they dried.

DIY Wooden Crate Tutorial

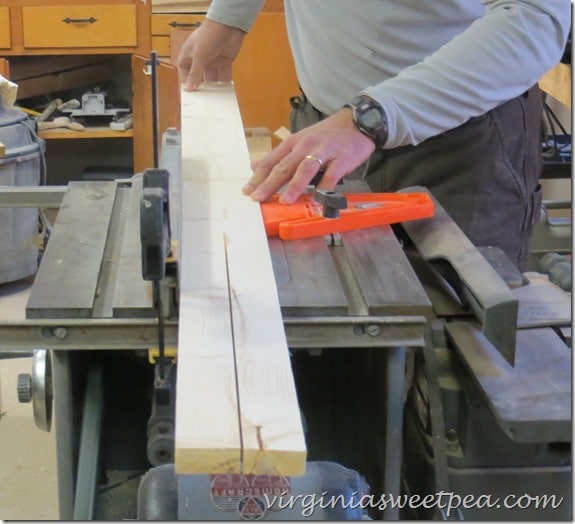

To make the front and back of the boxes taller than the sides, we used the table saw to rip one of the 4” boards in half.  This smaller piece was then cut to match the front width of the boxes (14 1/2” inches) and joined to the other two front pieces with more biscuit joints.  We used one on each side of the board since the handle was to be cut in the middle of each front and back.

Using the Table Saw to Make the Top Piece for the DIY Wooden Box

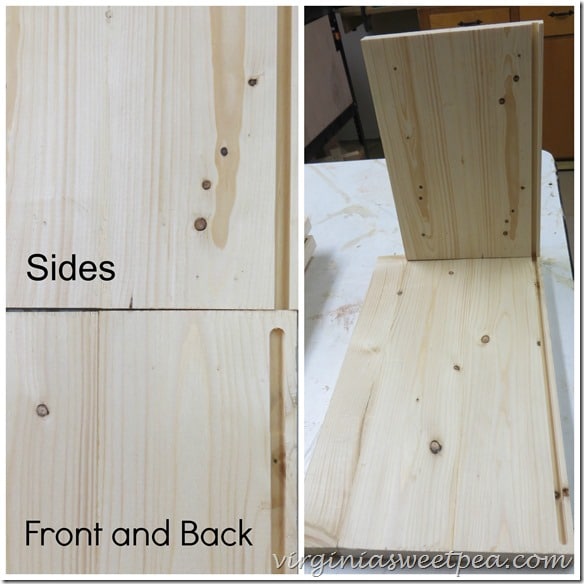

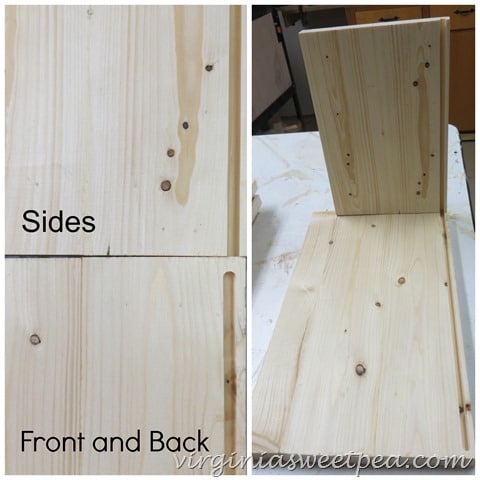

Next we used the router to cut a 1/4” wide, ~3/8” deep channel along the bottom of each side for the bottom to slide into.

routed-bottom-edge-diy-wooden-crate

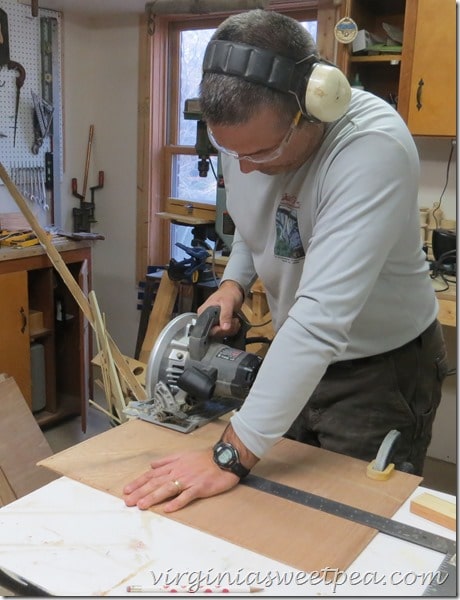

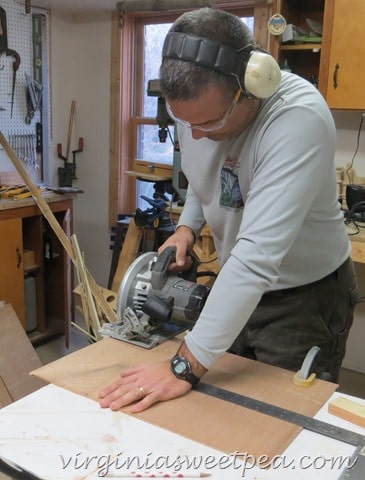

The bottom of the box was then cut from scrap luan that we had on hand.  We cut these slightly larger than the inside dimension of the box so that the bottom would be held within these grooves then the box was assembled.

Making the Bottom of the DIY Wooden Box

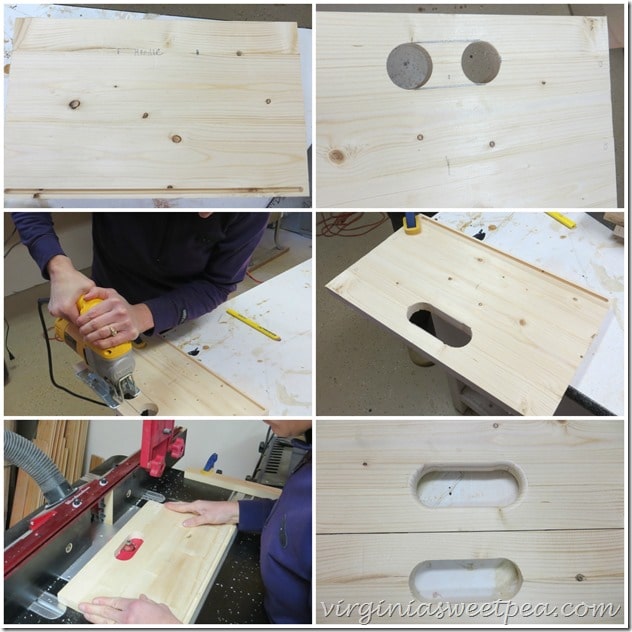

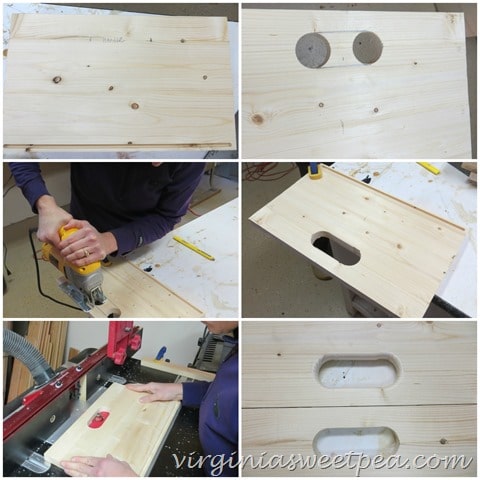

The next step was to make the handles for the front and back of the crates.  The handle location was marked and the drill press was used to cut the 2 holes in each opposite ends of each handle with a 2” forstner bit.  A sabre saw then was used to cut between each circle.  To make the edges smooth, each side of the handle was routed with a 1/4” roundover bit.  Note the difference between the routed and unrouted handle.

DIY Wooden Crate:  Step-by-step tutorial

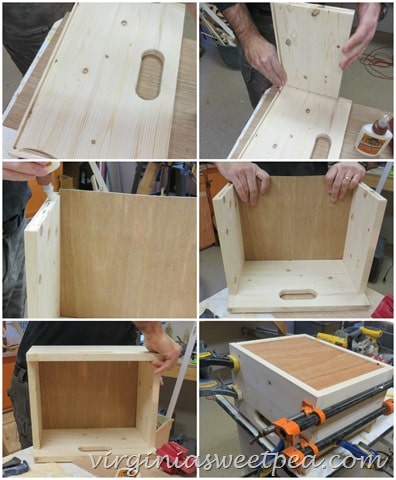

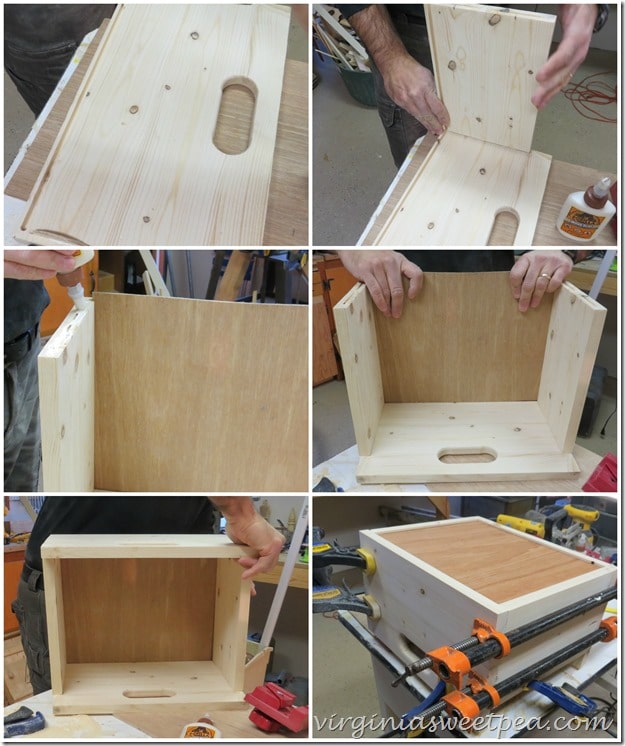

Two biscuit joints were then cut into the edge of each side piece at the corner interface.  The two sides were glued into place, the bottom was slid into the bottom channel, and then the back was glued on.  Clamps made sure that the box stayed square while it dried.

How to Make a DIY Wooden Box



After the boxes were dry, they were stained with Minwax Early American stain.  Chalkboard labels from Michaels were glued to each crate.

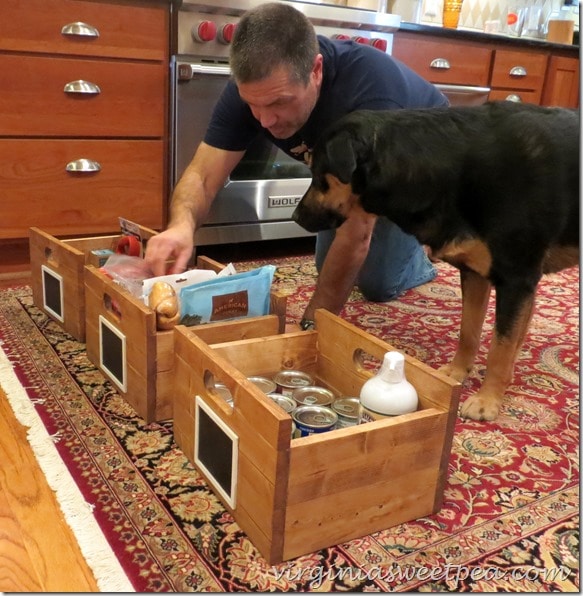

Sherman Skulina inspects his crates

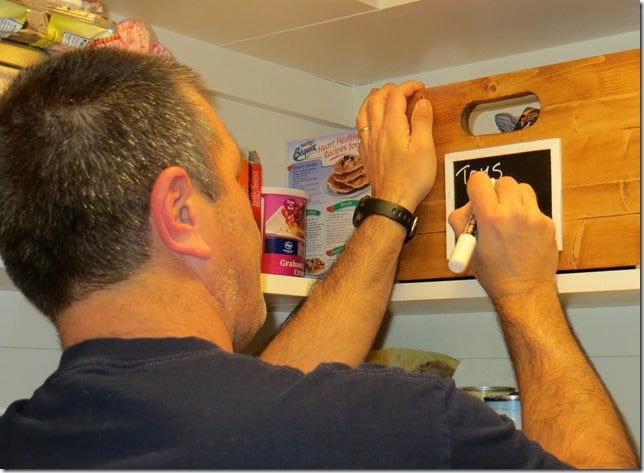

A chalkboard pen from Michaels was used to label each crate.Mr. SP Labels Crates

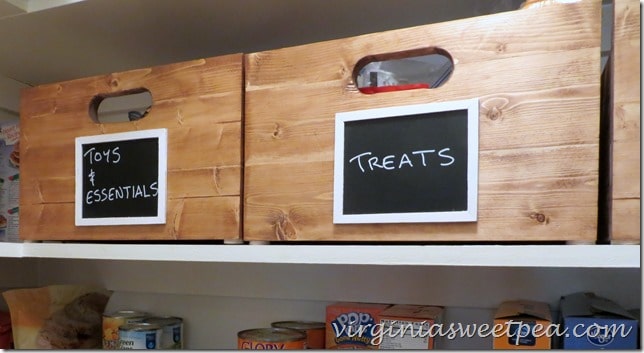

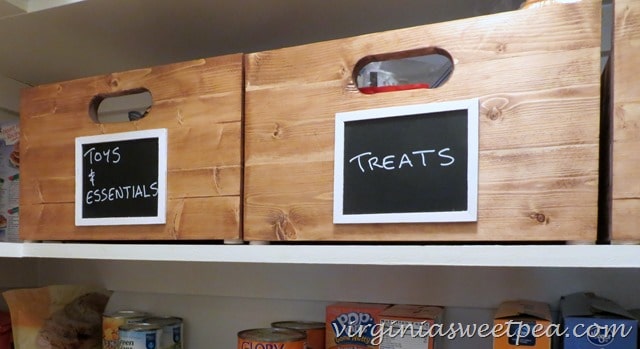

Sherman’s things are now organized in our pantry.

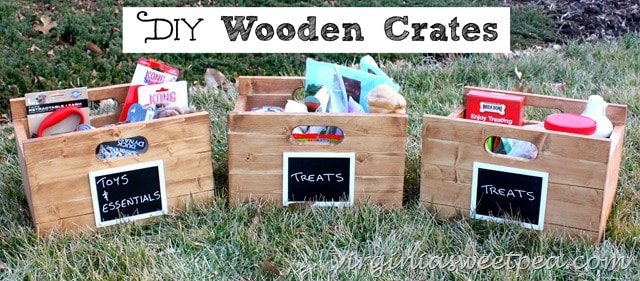

DIY Wooden Crates for Storage



These crates would be handy in any room in a house and the handles make them super easy to carry from place to place.  I have a feeling that we just might make a few more of these!



I’d love for you to pin this tutorial to your favorite board on Pinterest for others to discover!

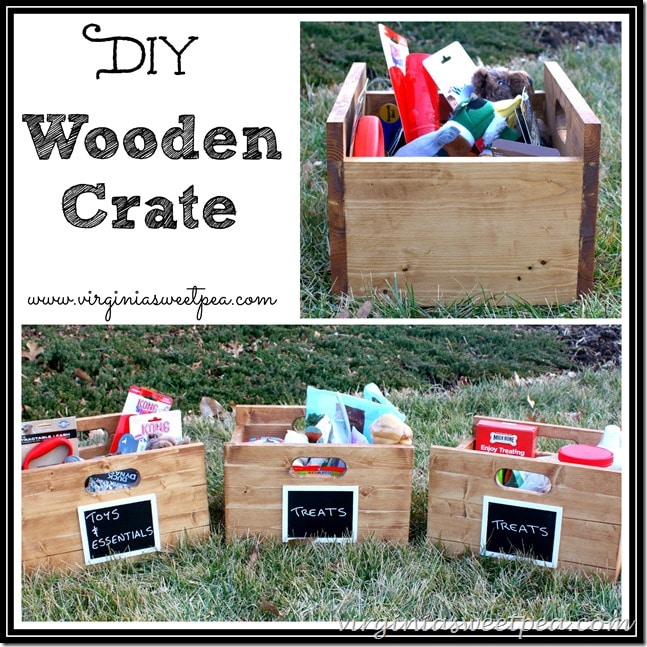

DIY Wooden Crate Tutorial - Get step-by-step instructions to make your own crates.



Do you ever wonder if the organization strategies that bloggers show really work?  My pantry is still as organized as it was a week ago.  My ideas seem to work for my house.  You can get my pantry organization tips here

Tips for Pantry Organization by virginiasweetpea.com .

Be sure to come back later this week.  I’m sharing my latest vintage finds and I’ve got some real treasures to show you.

Sharing With:  Between Naps on the Porch, Concord Cottage, Stone Gable, Fearlessly Creative Mamas, Savvy Southern Style, Serenity Now, The Bold Abode, Remodelaholic, Dwellings-The Heart of Your Home, Denise Designed
