It’s been a few months since I’ve shared a woodworking project and today I’m excited to share how to make a DIY Adjustable Wood Display Stand.
This project is part of the latest Power Tool Challenge. We haven’t had a challenge since November when we made gifts for each other and today our challenge is $20 and under projects. The plate stand that I made for this challenge cost just $2 since all I had to buy to make it was a dowel rod.
DIY Adjustable Wood Display Stand

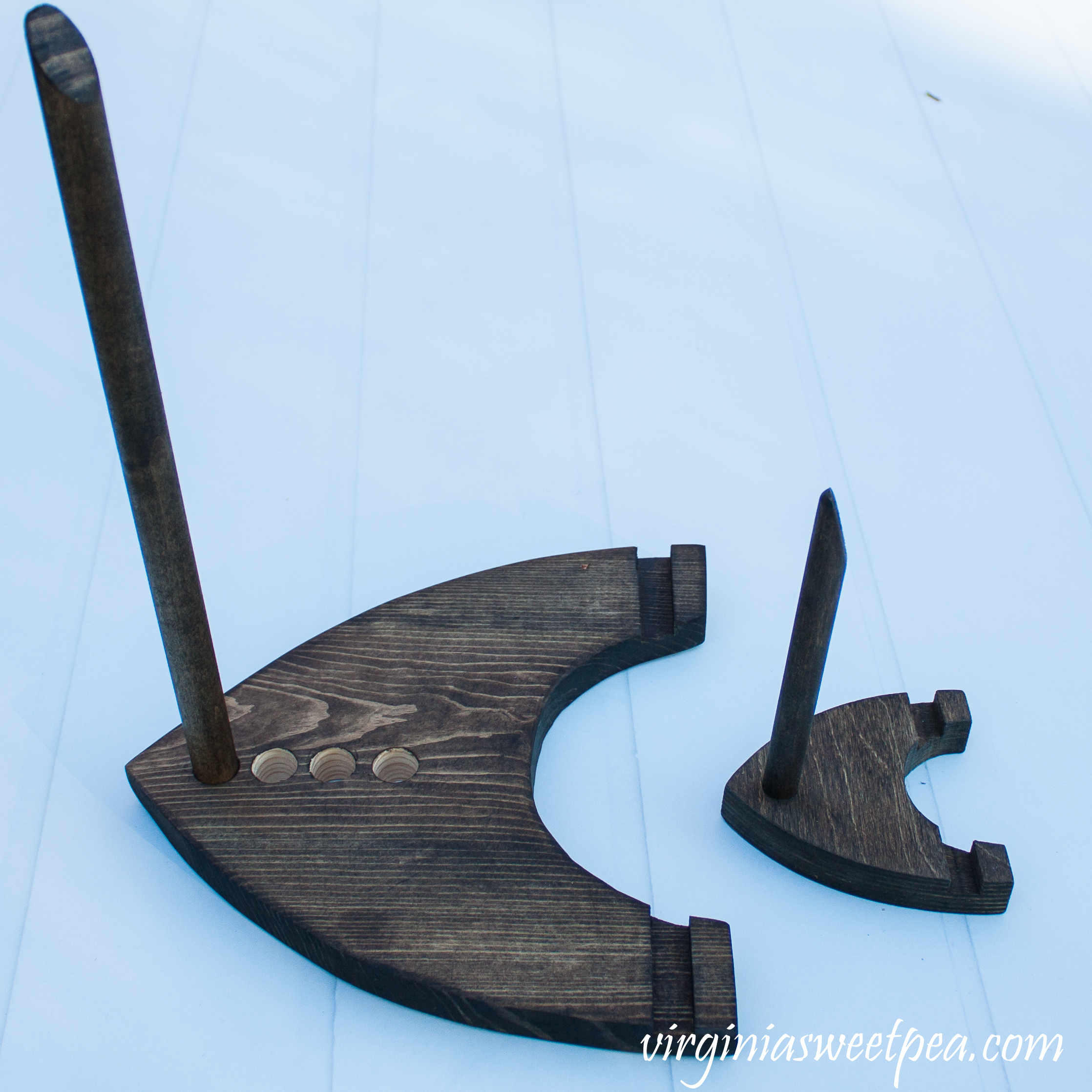

A long time ago, at Manchester Woodcraft in Manchester, VT, I purchased a small display stand that I’ve enjoyed using for displaying small plates, postcards, or small pieces of art. The display stand was purchased unstained and I stained it so that it would blend in better with my decor. The display stand that I purchased isn’t listed on the Manchester Woodcraft website but they might have them in stock if you were to visit their store.
I have a collection of antique fish platters that I used to have hanging in my kitchen. When I painted our kitchen last fall, I removed the platters and didn’t hang them back up. Since they are fish themed, I thought it would be fun to take a few to our lake house to display. The fish platters are large and since I like the small display stand that I purchased in Vermont so much, I decided to copy its design and make a larger version. My larger version is adjustable to use with different sizes of plates, platters, or art.

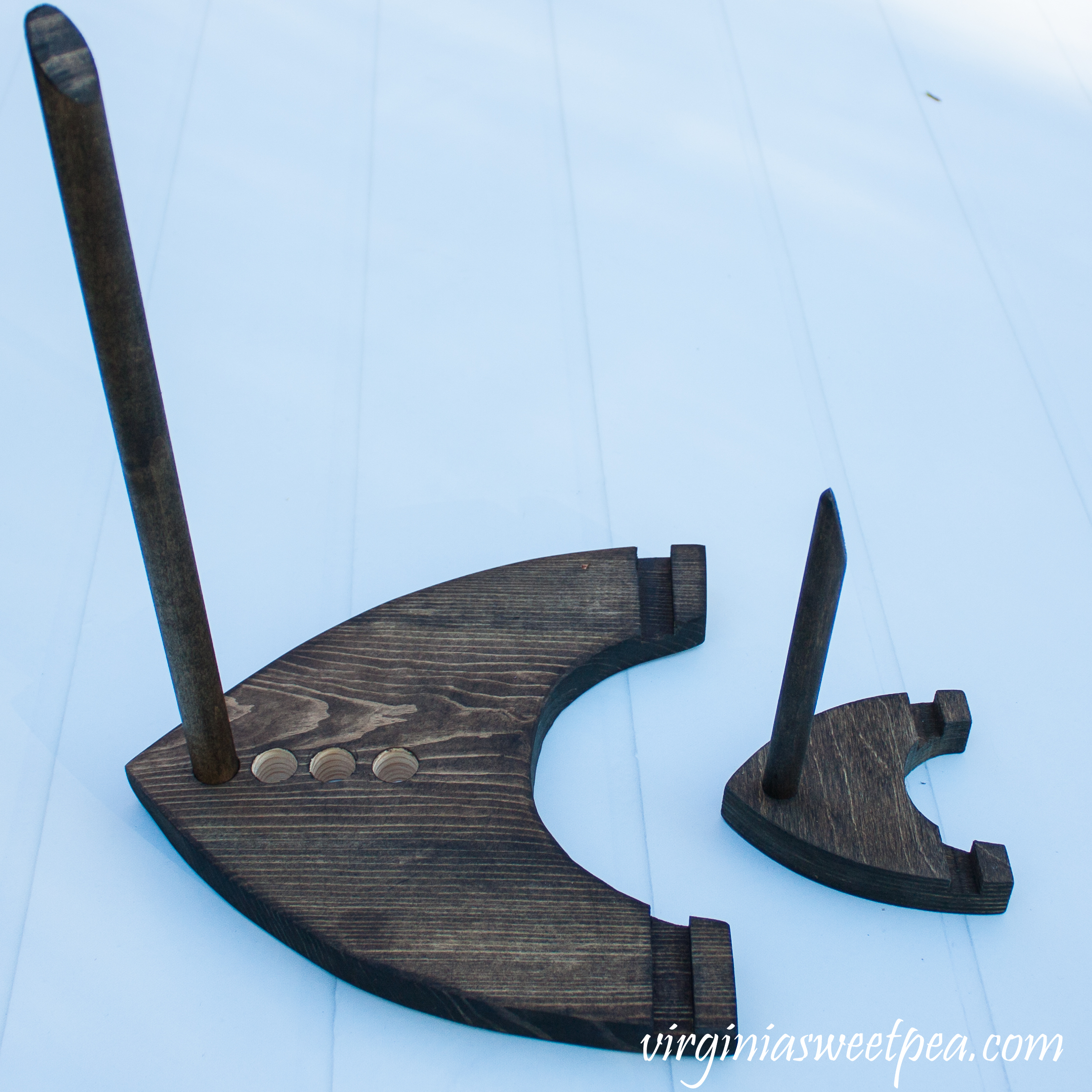

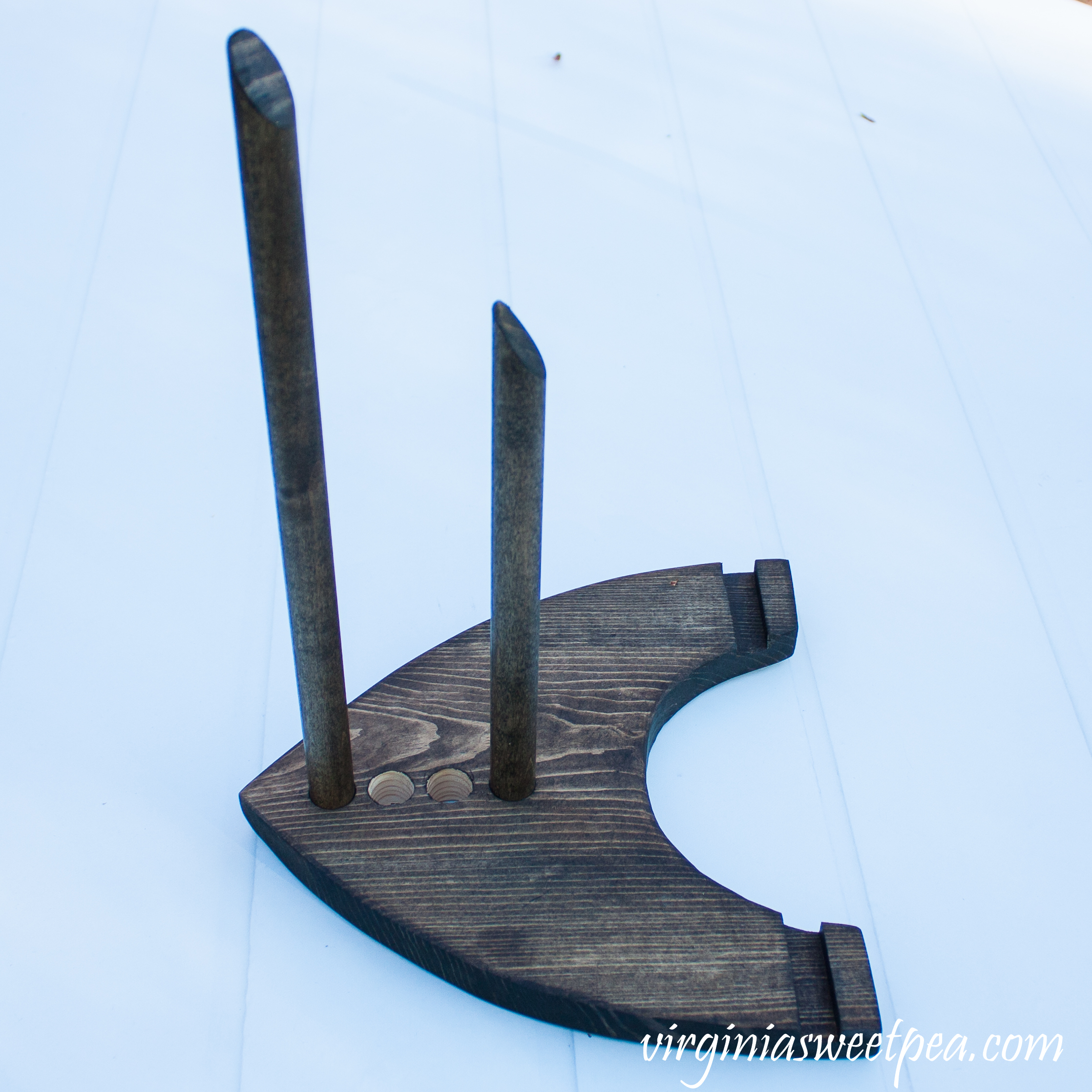

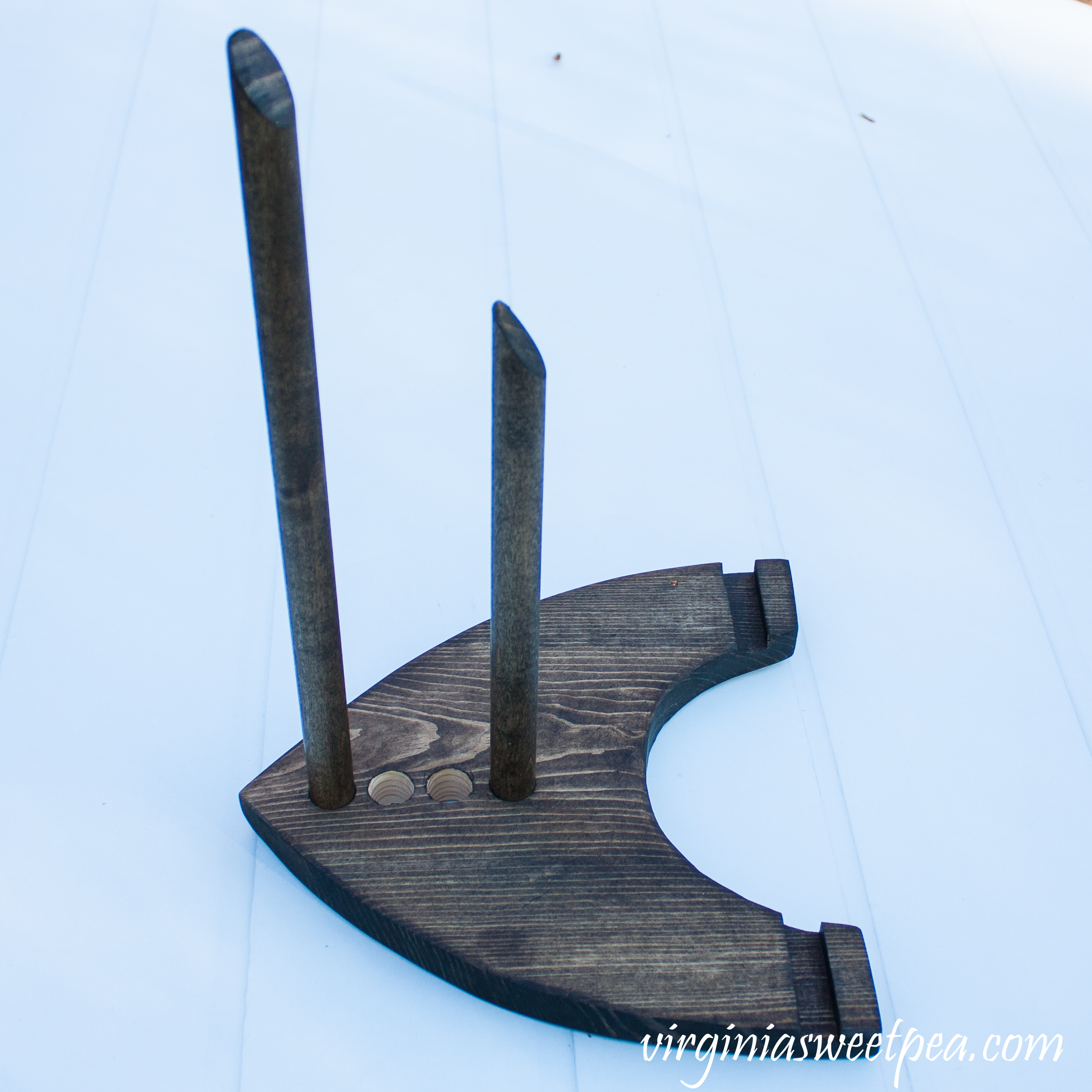

Since some of my fish platters are larger than others, I made two sizes of back supports. The taller one is used for my taller platters and the shorter one for my long and narrow platters.

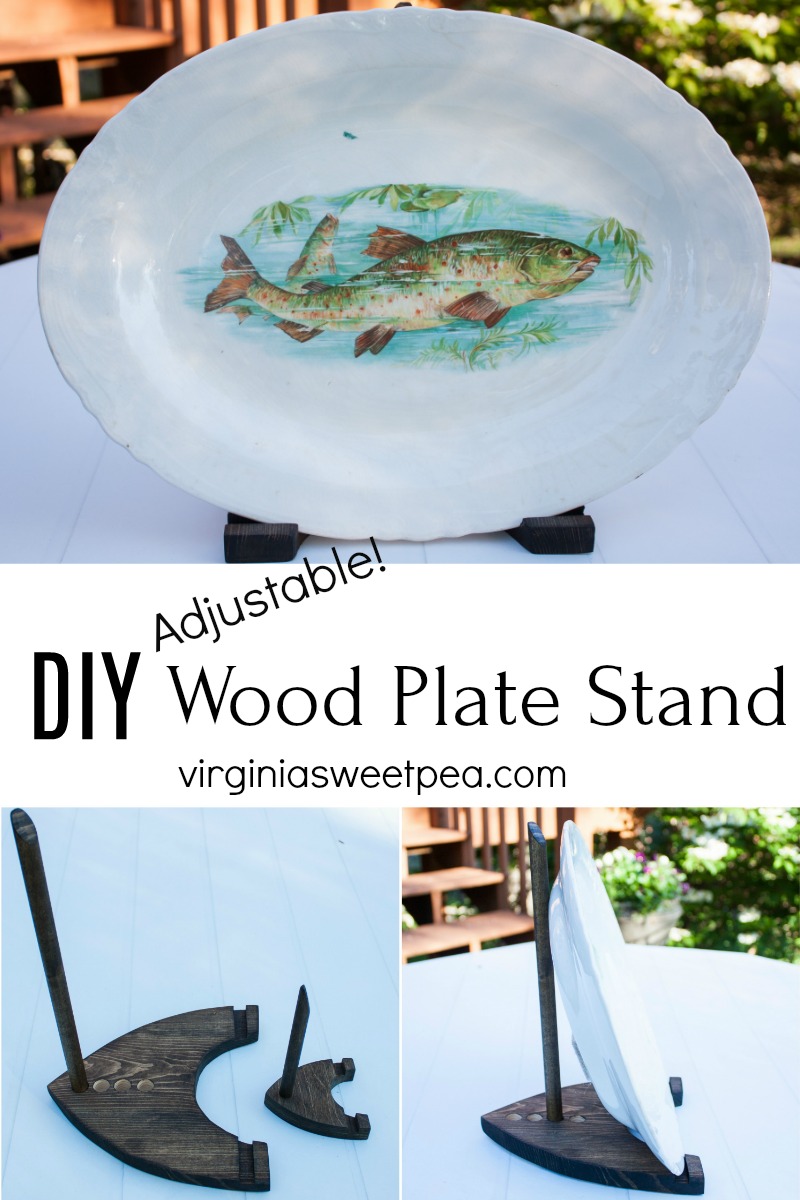

DIY Adjustable Wood Plate Stand in Use

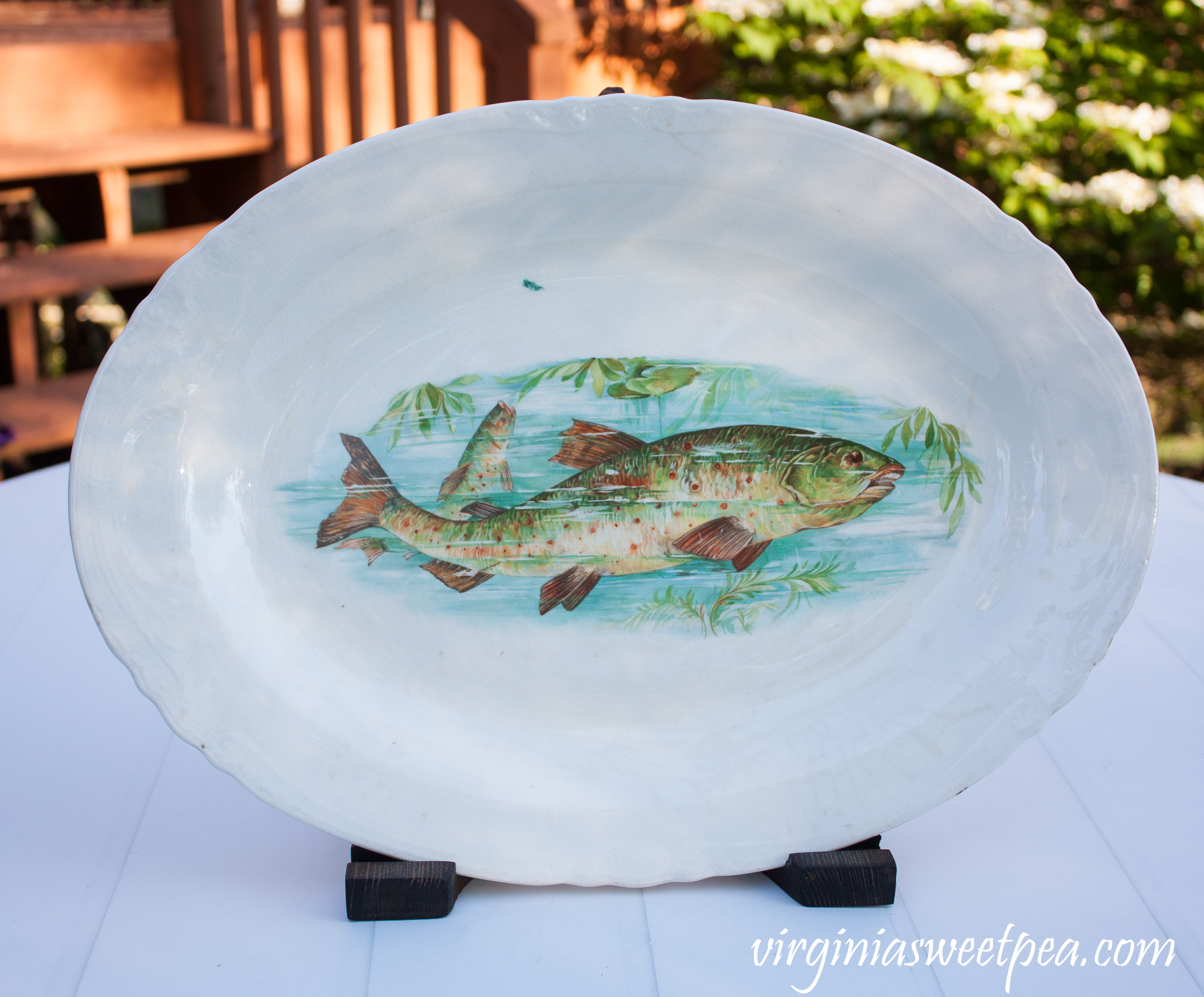

I plan to display this platter on the counter in our lake house kitchen. I used the longer dowel to display this platter.

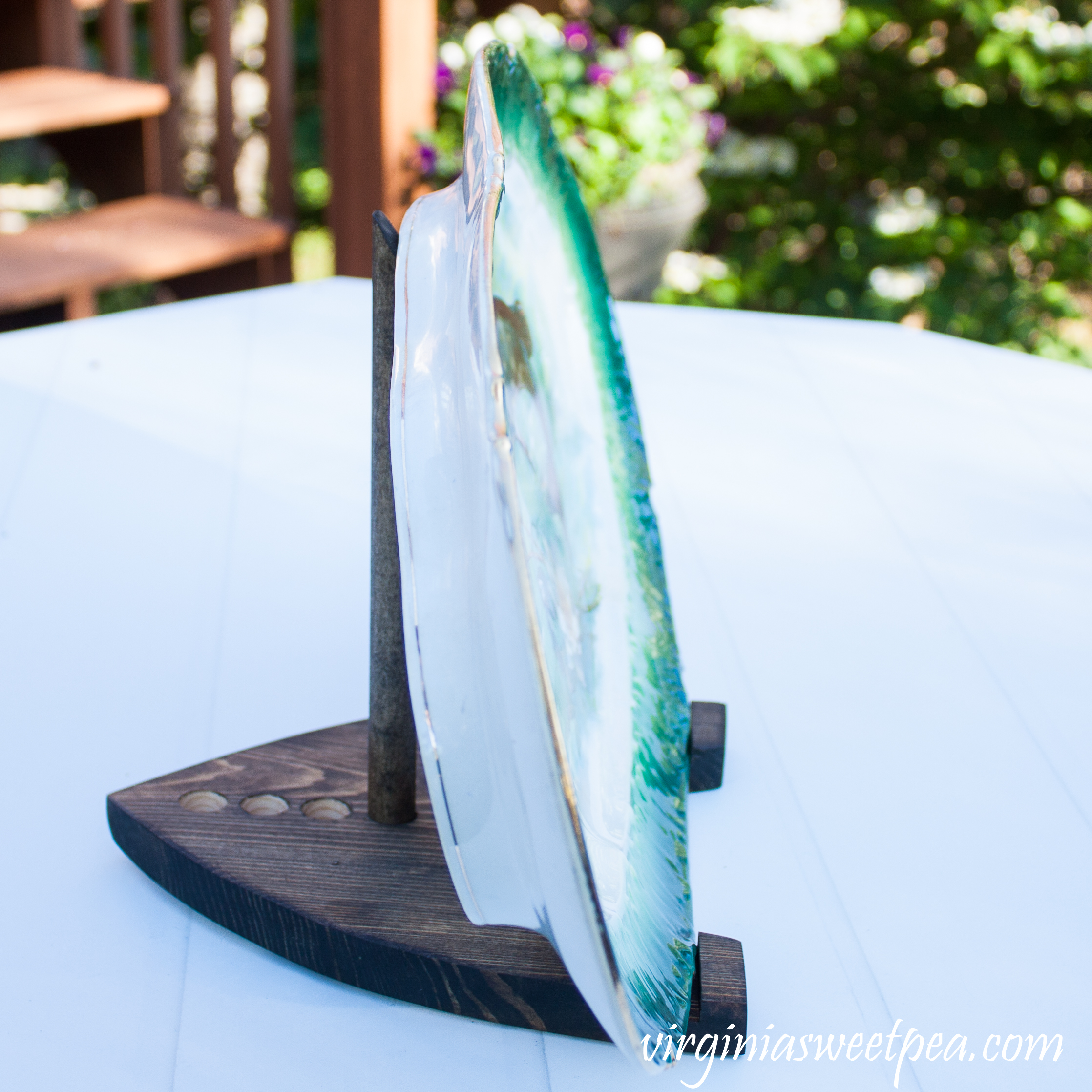

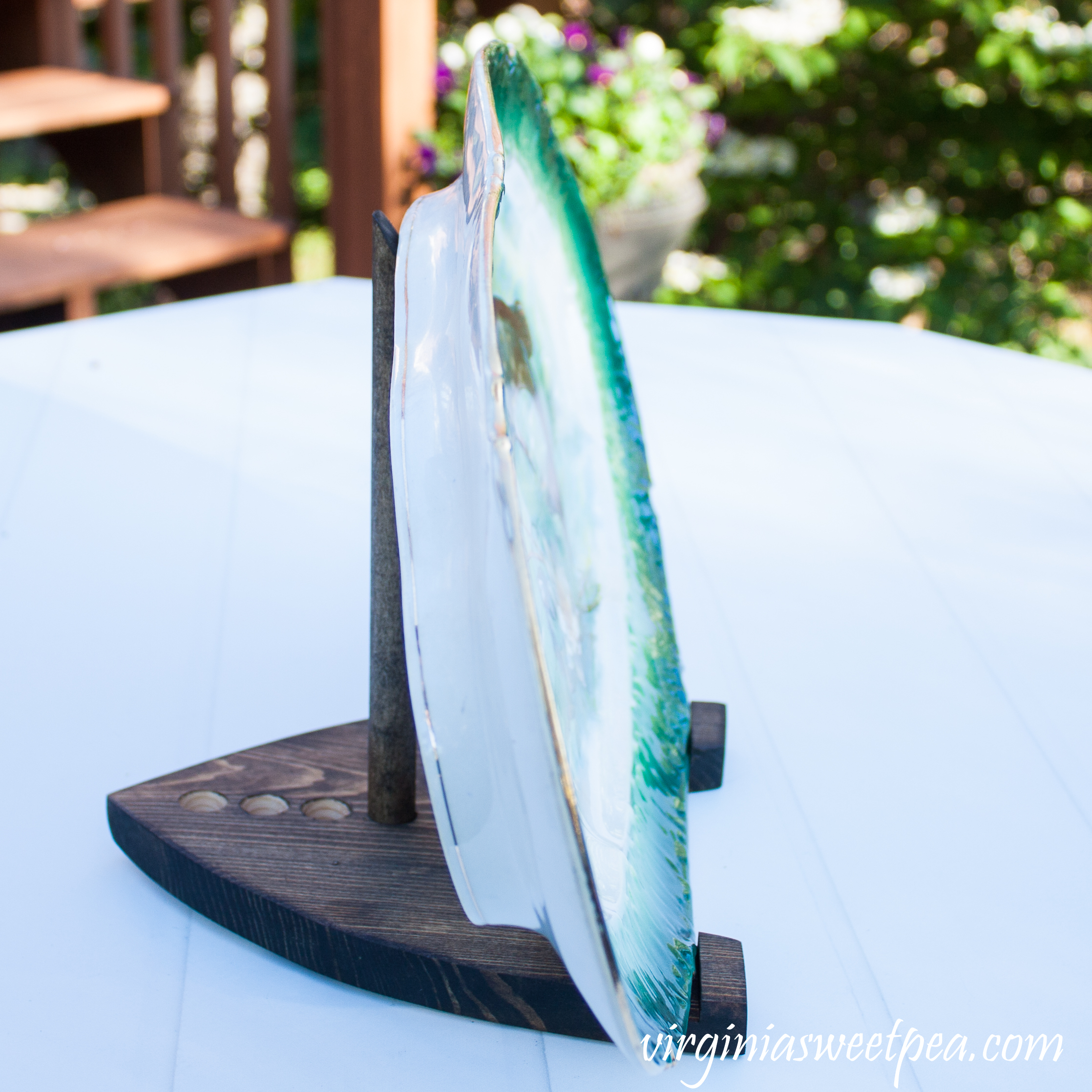

Here is a side view. The felt pads on the back of the platter are leftover from when I had it hanging on our kitchen wall.

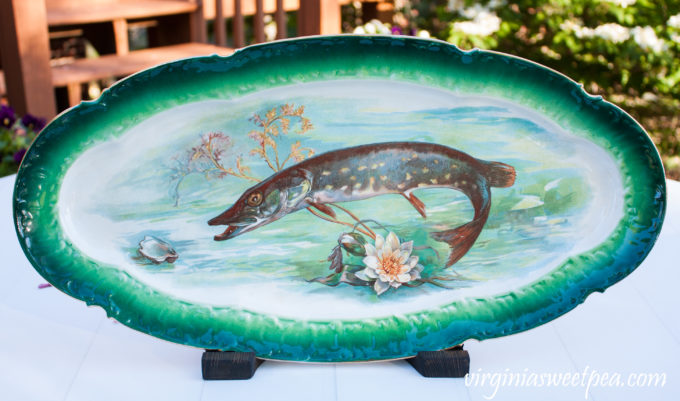

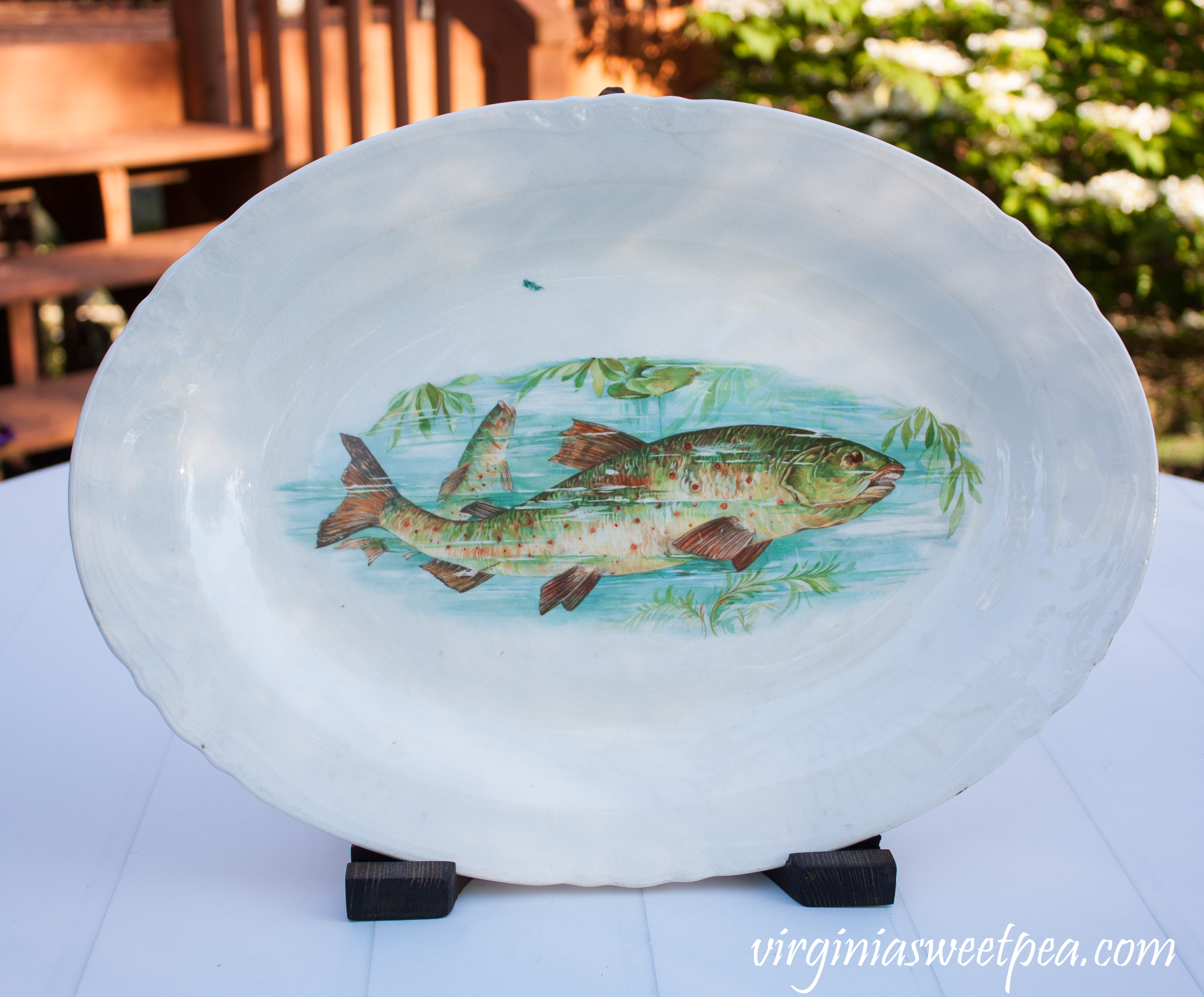

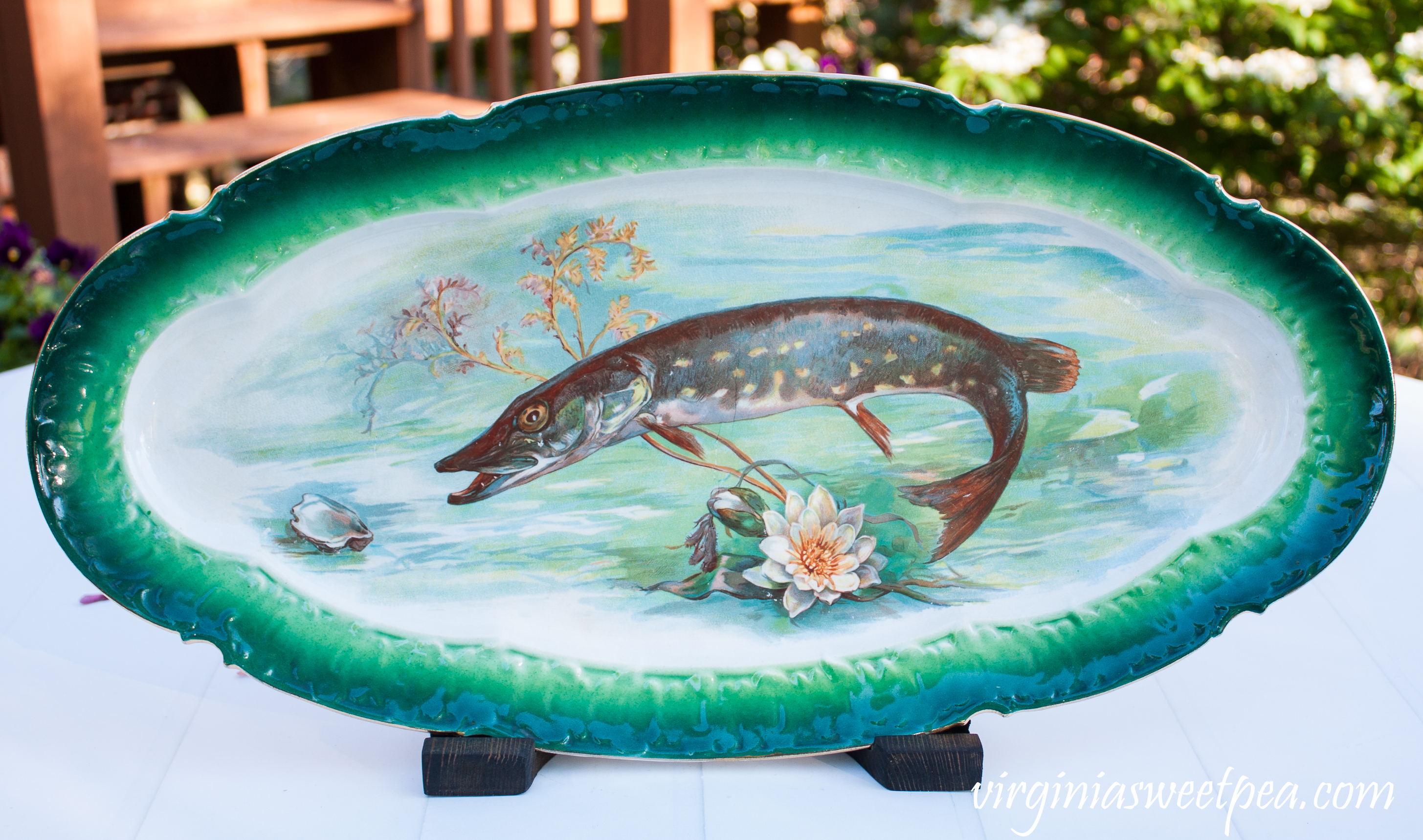

Here is another platter, this one wide and not very tall.

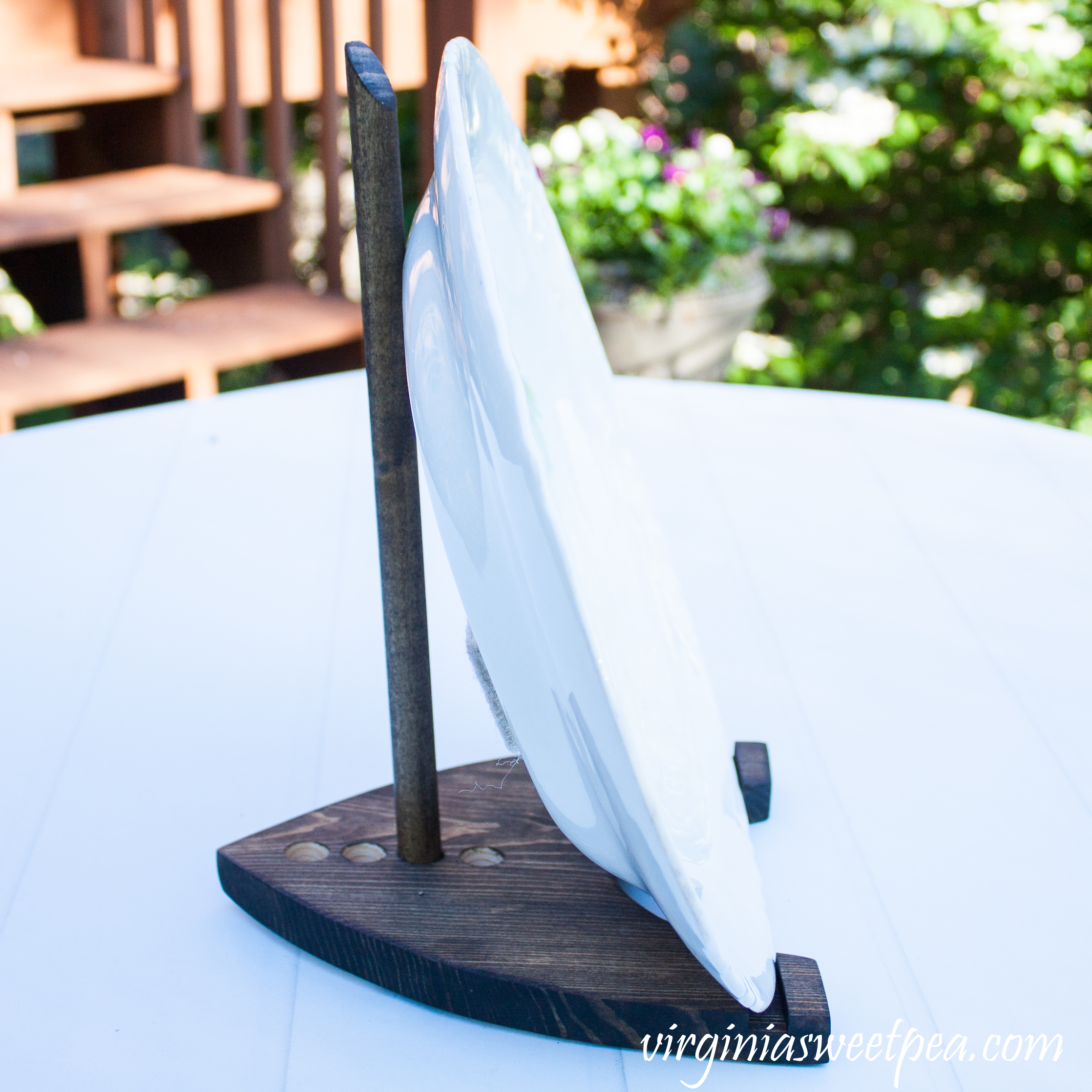

This side view shows that I used the shorter dowel and the last hole for displaying this platter.
Now that you’ve seen pictures of my wood plate stand in action, let me show you how I made it.
How to Make a DIY Adjustable Wood Plate Stand
Step One – Make a Template

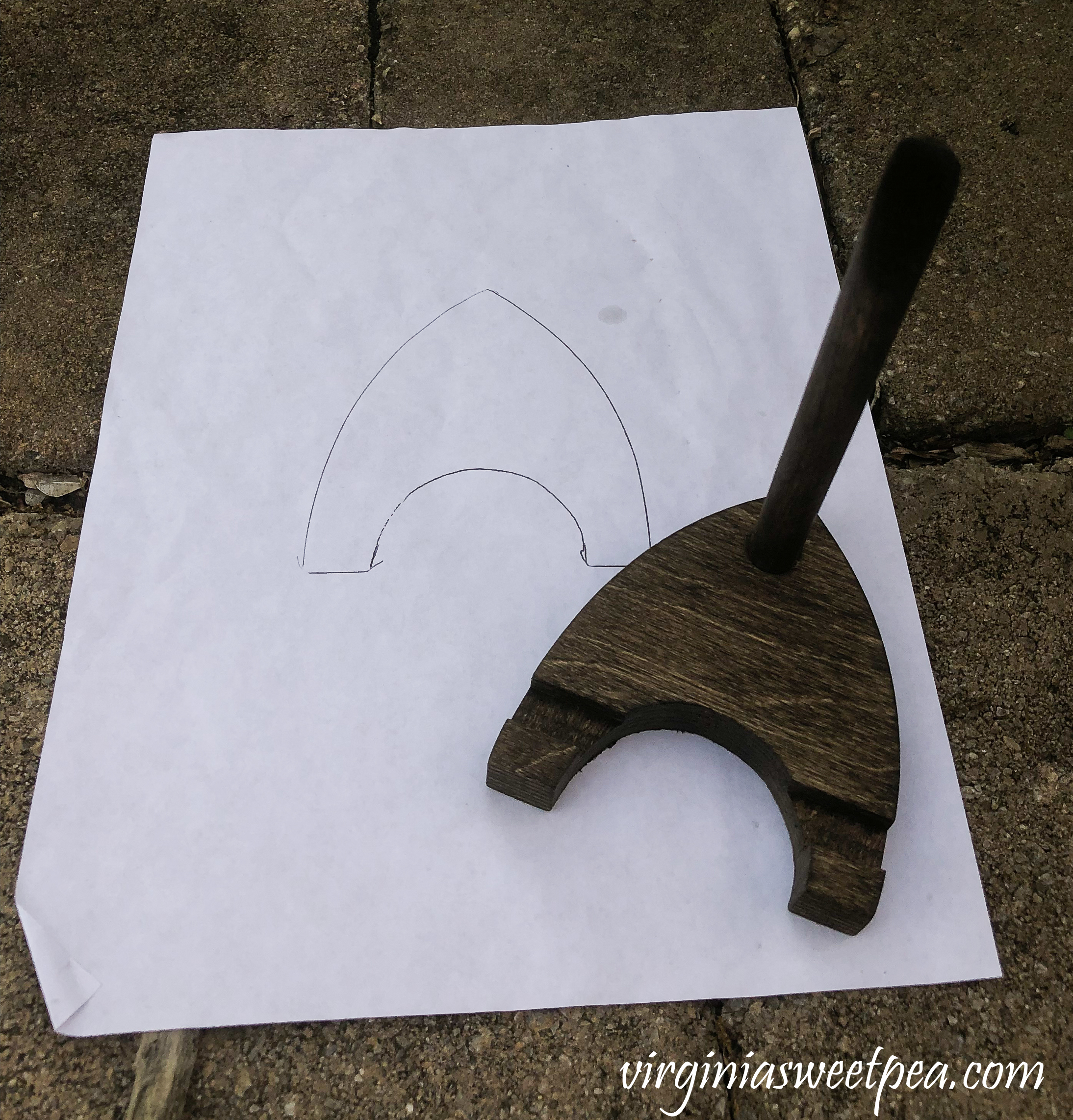

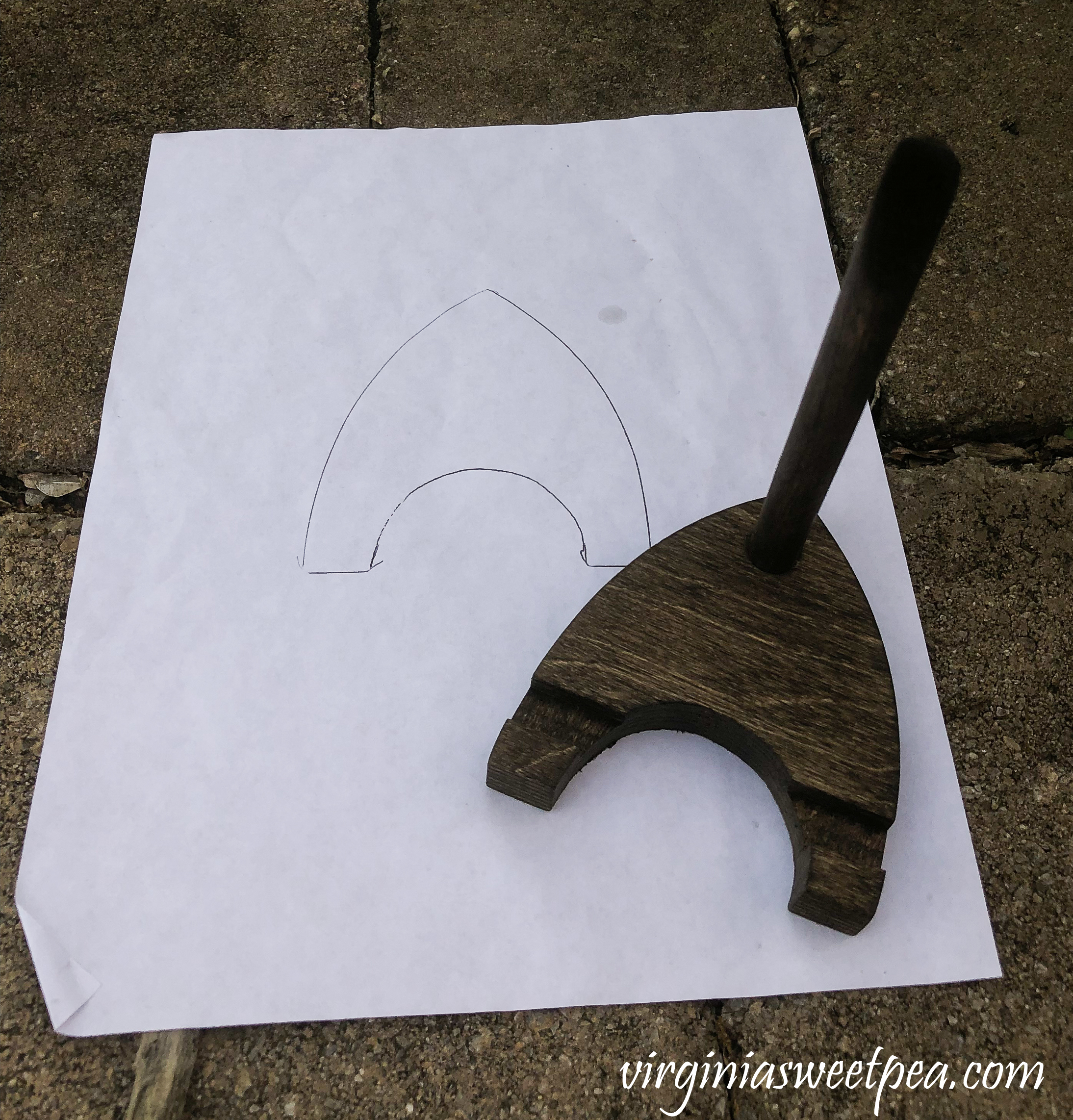

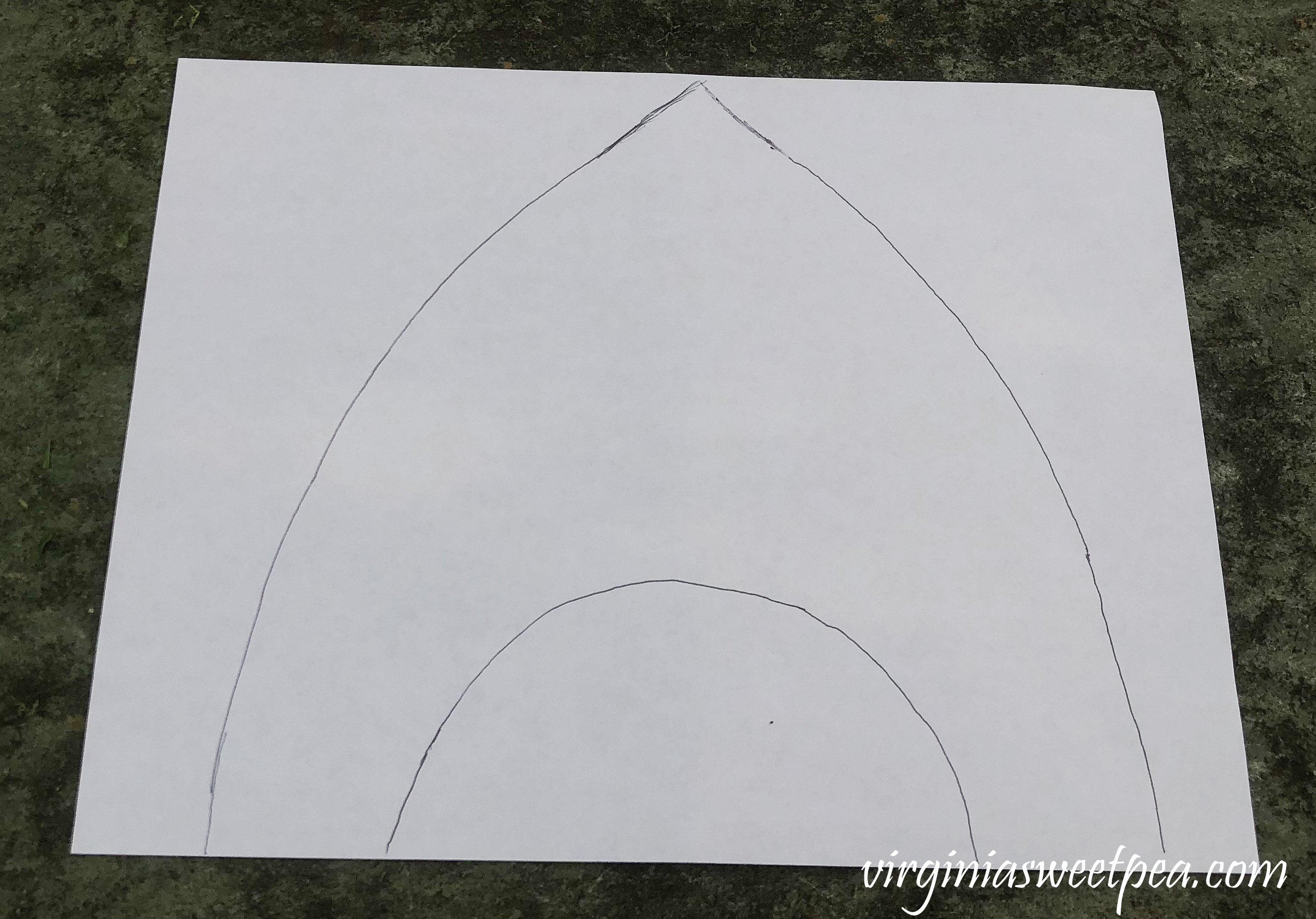

I traced the plate stand that I purchased in Vermont and then had my husband enlarge it at work.

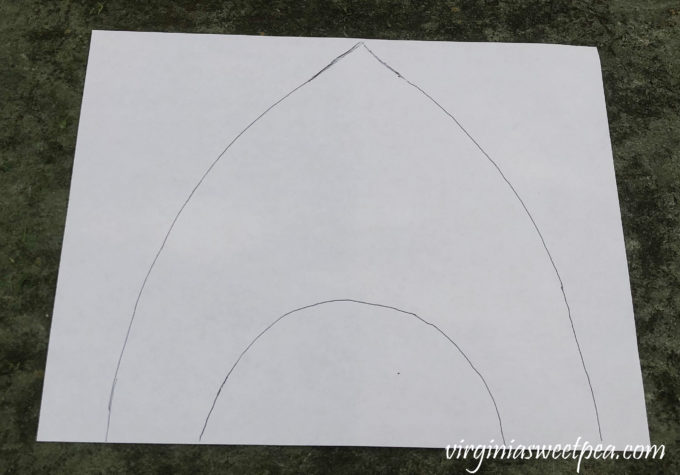

The enlarged template went off the paper, so I traced it onto another sheet. You can print my template here.
Step Two – Cut out the Base

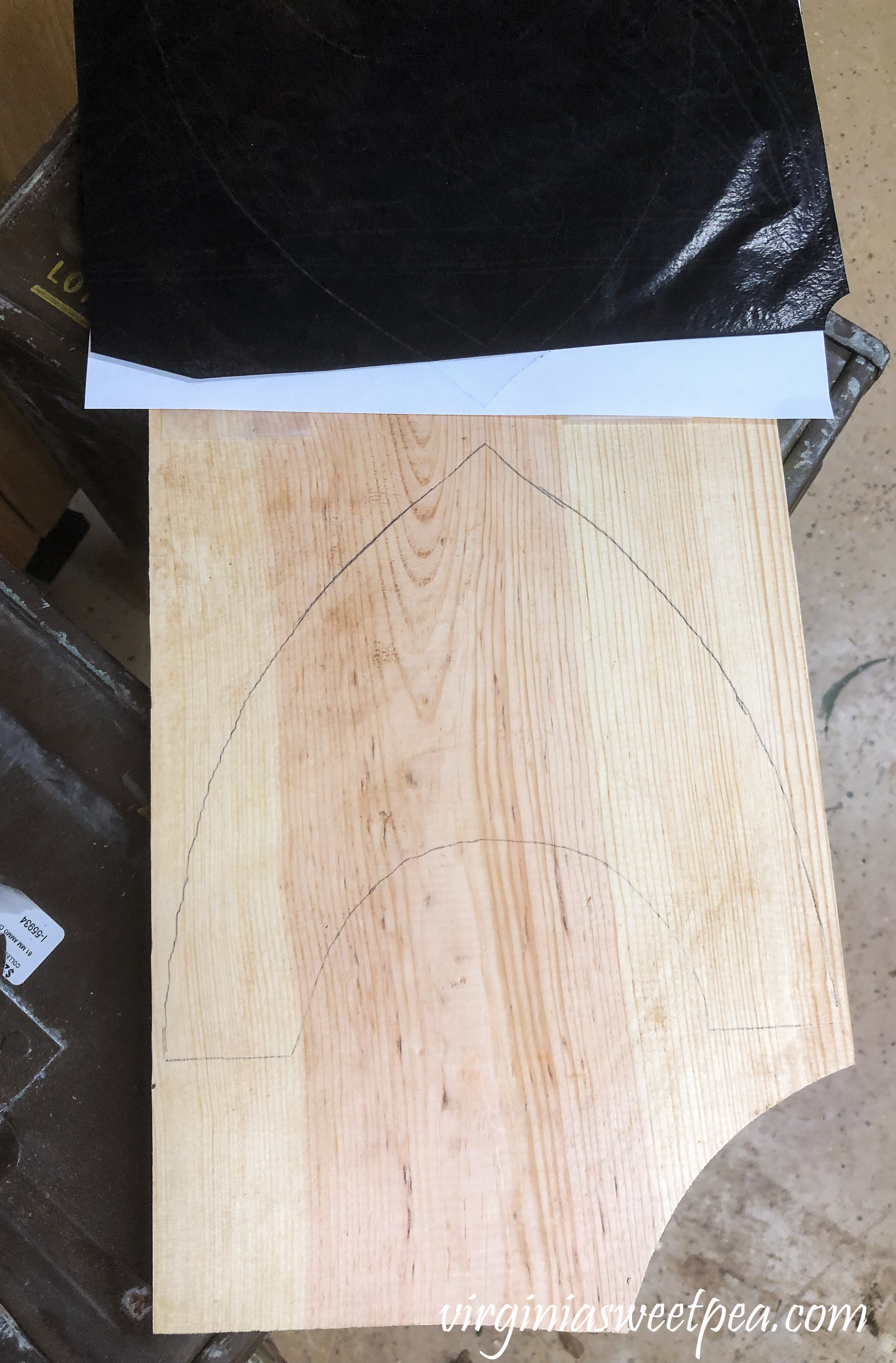

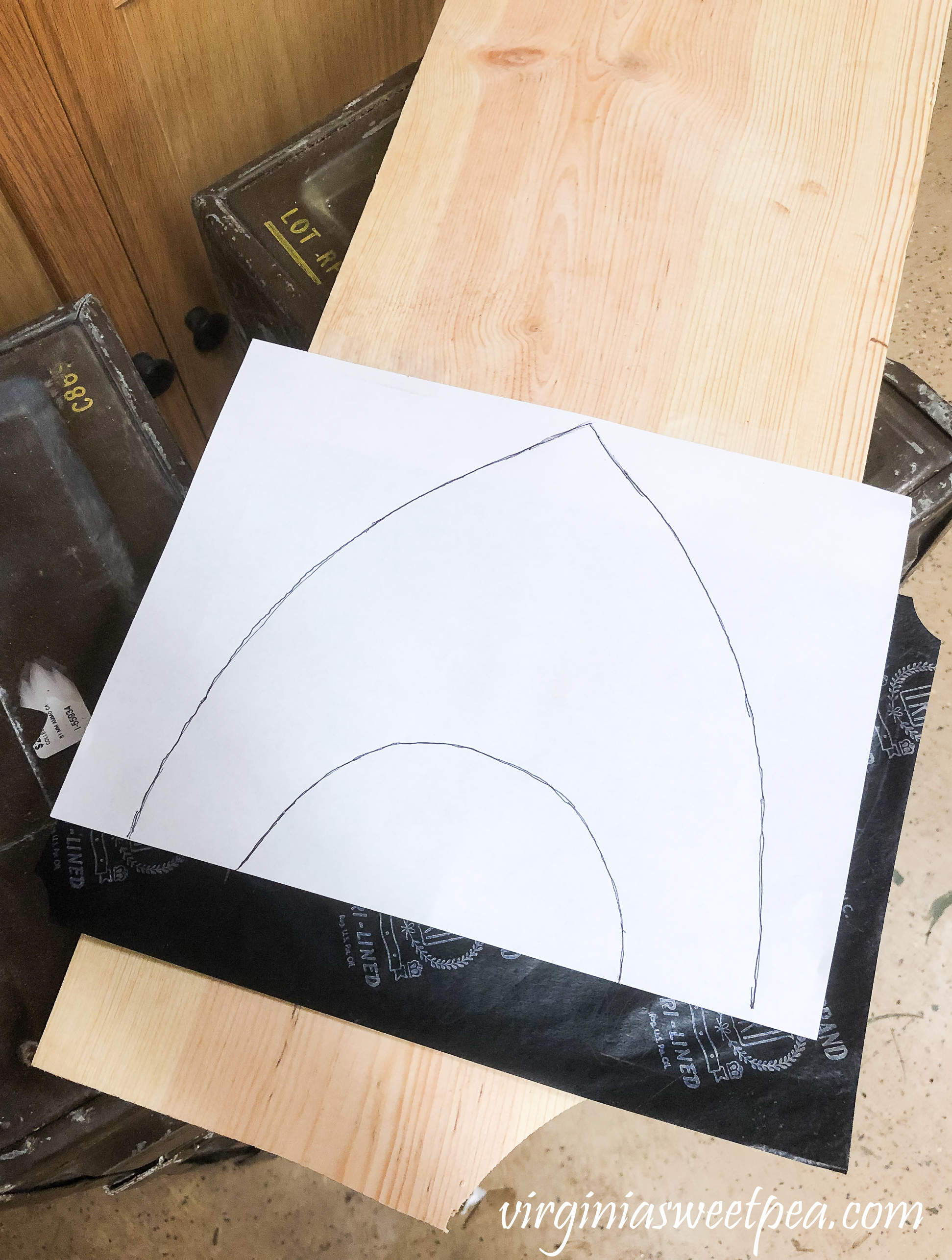

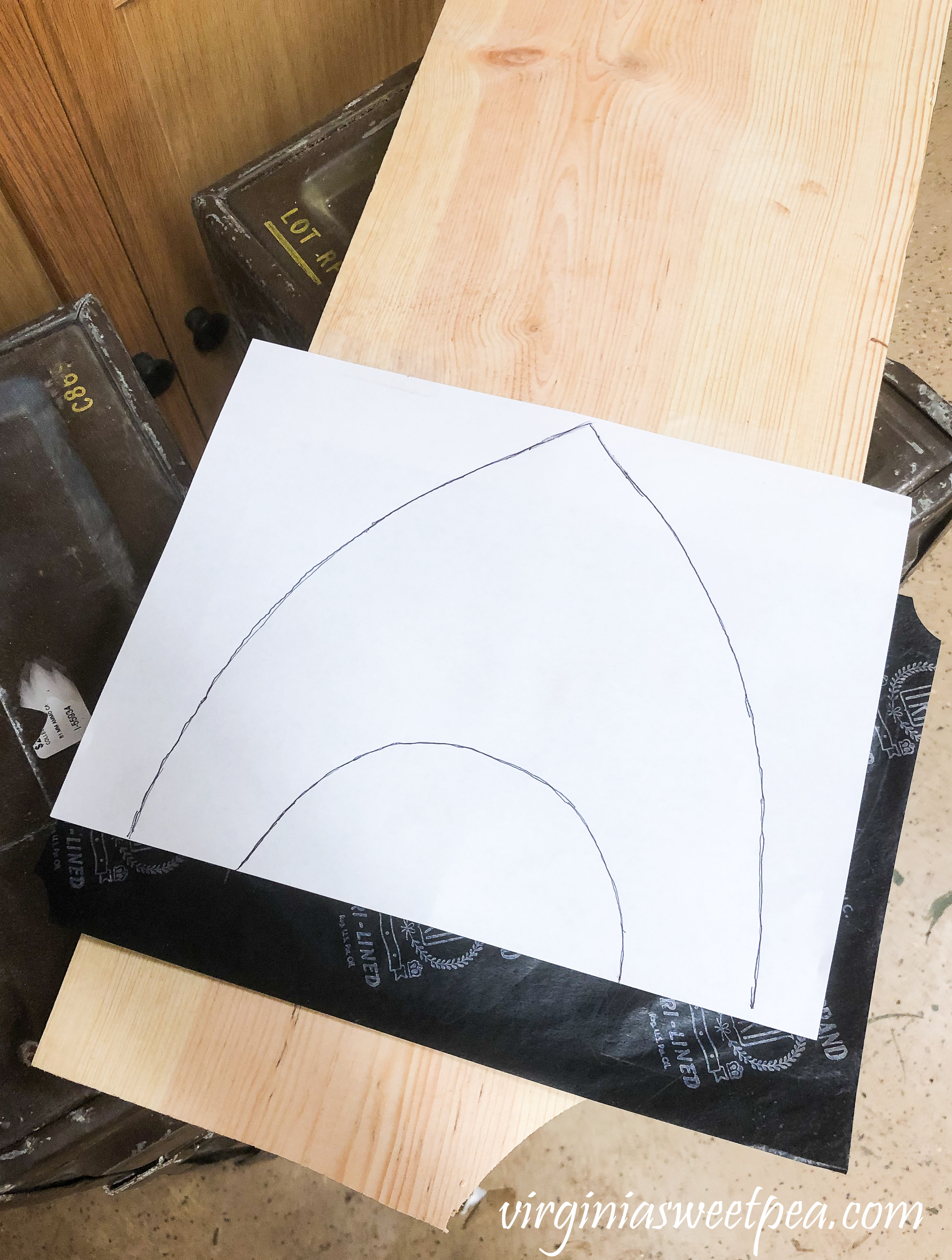

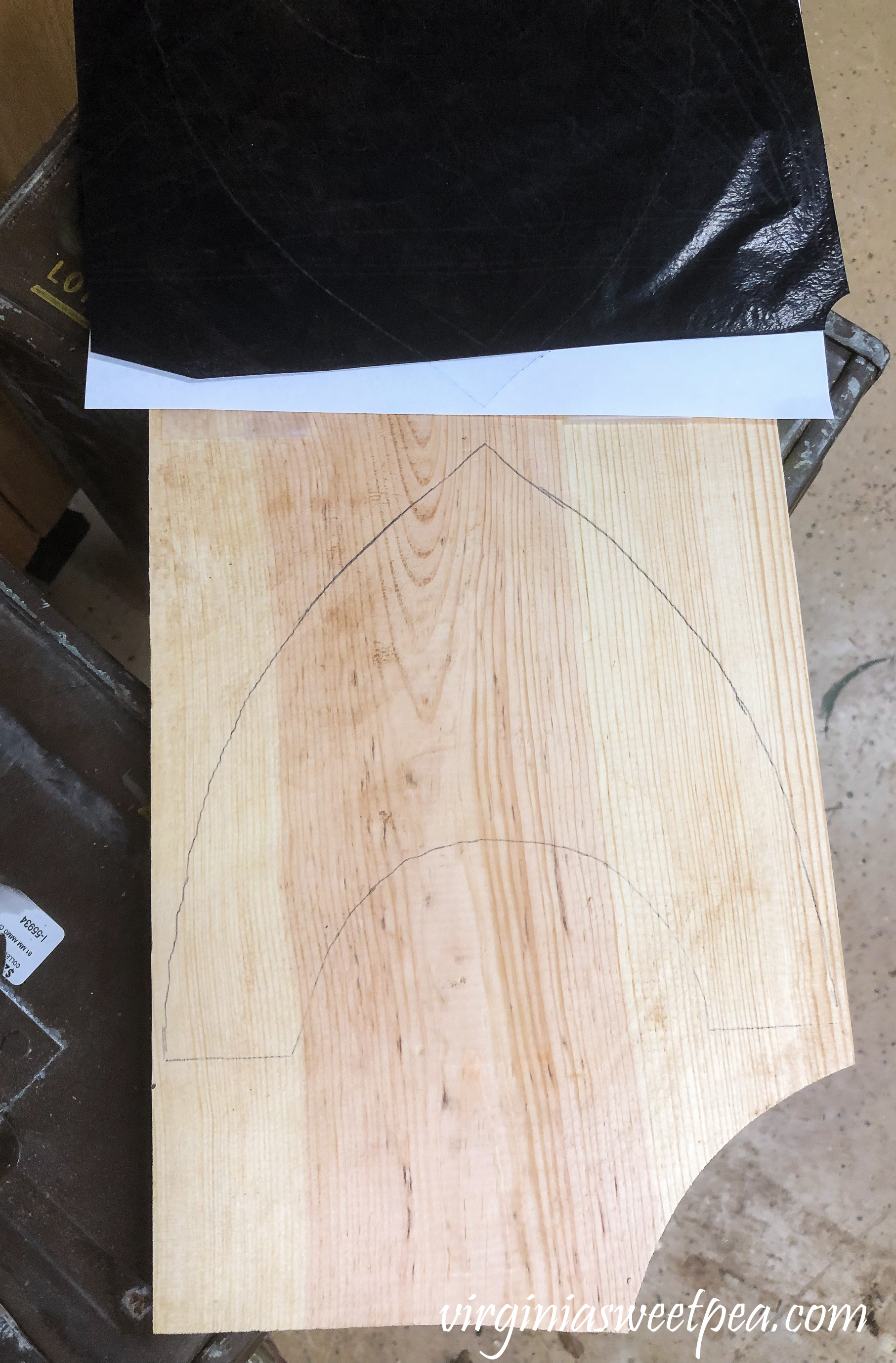

Use carbon paper to trace the template (get it here) onto the wood that you want to use for the base. I used a scrap piece of 1 x 10 (3/4″ thick).

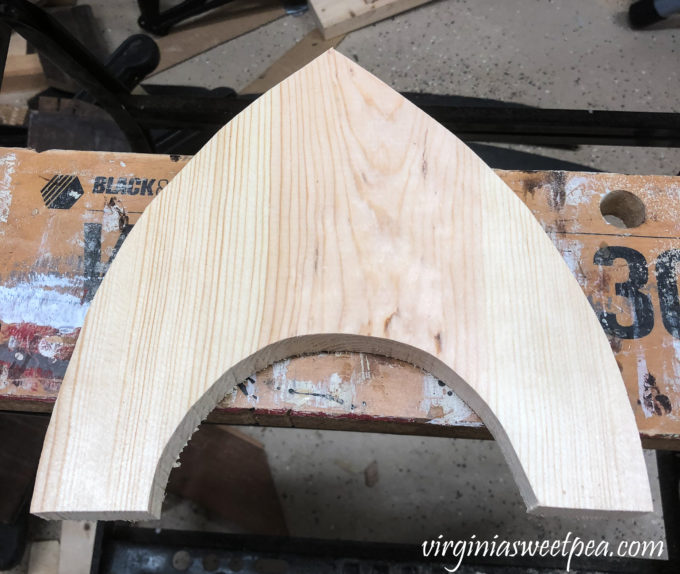

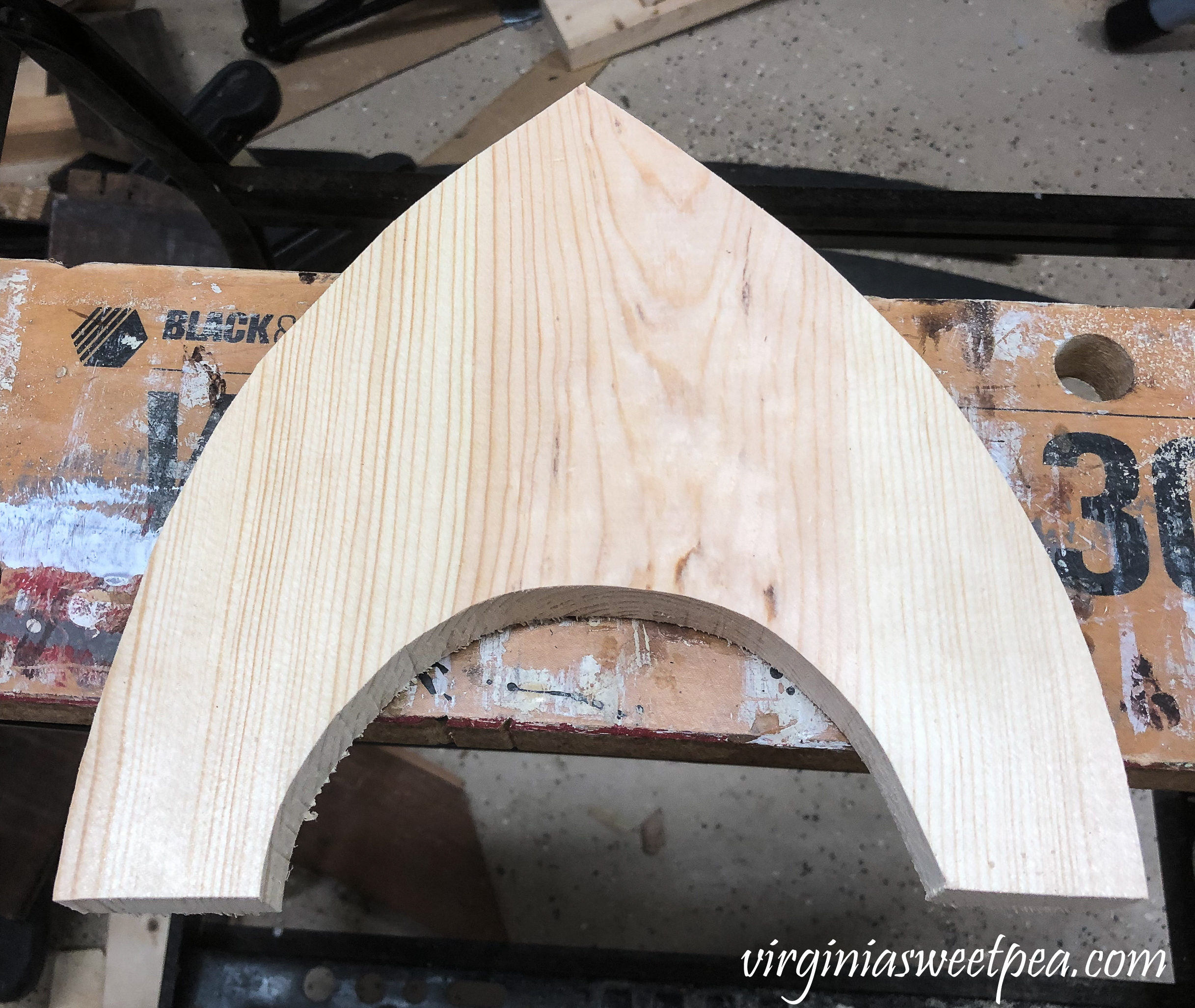

Use a jigsaw to cut out the base. I also sanded it after I took the picture below.

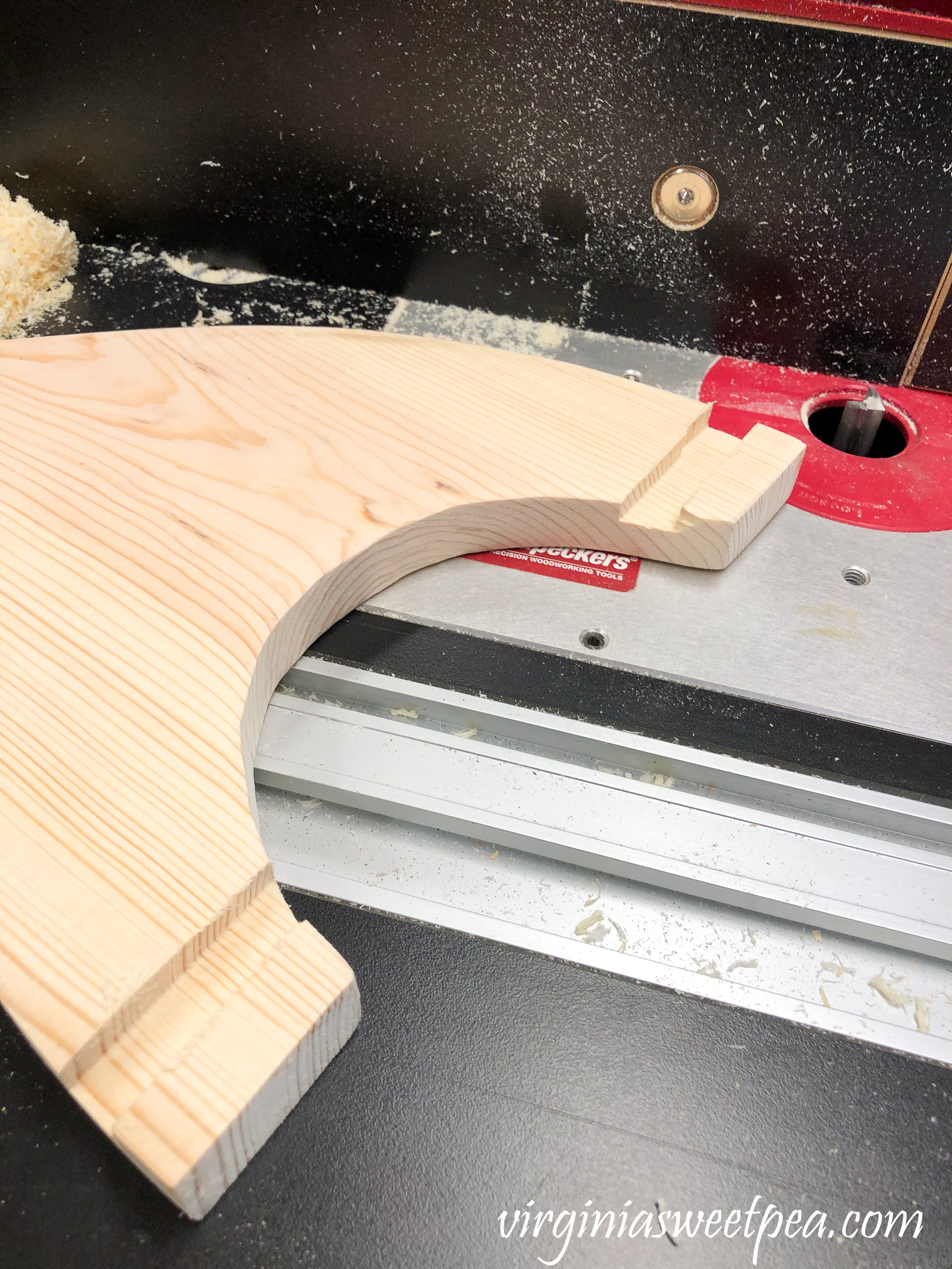

Step Three – Route a Groove for the Plate

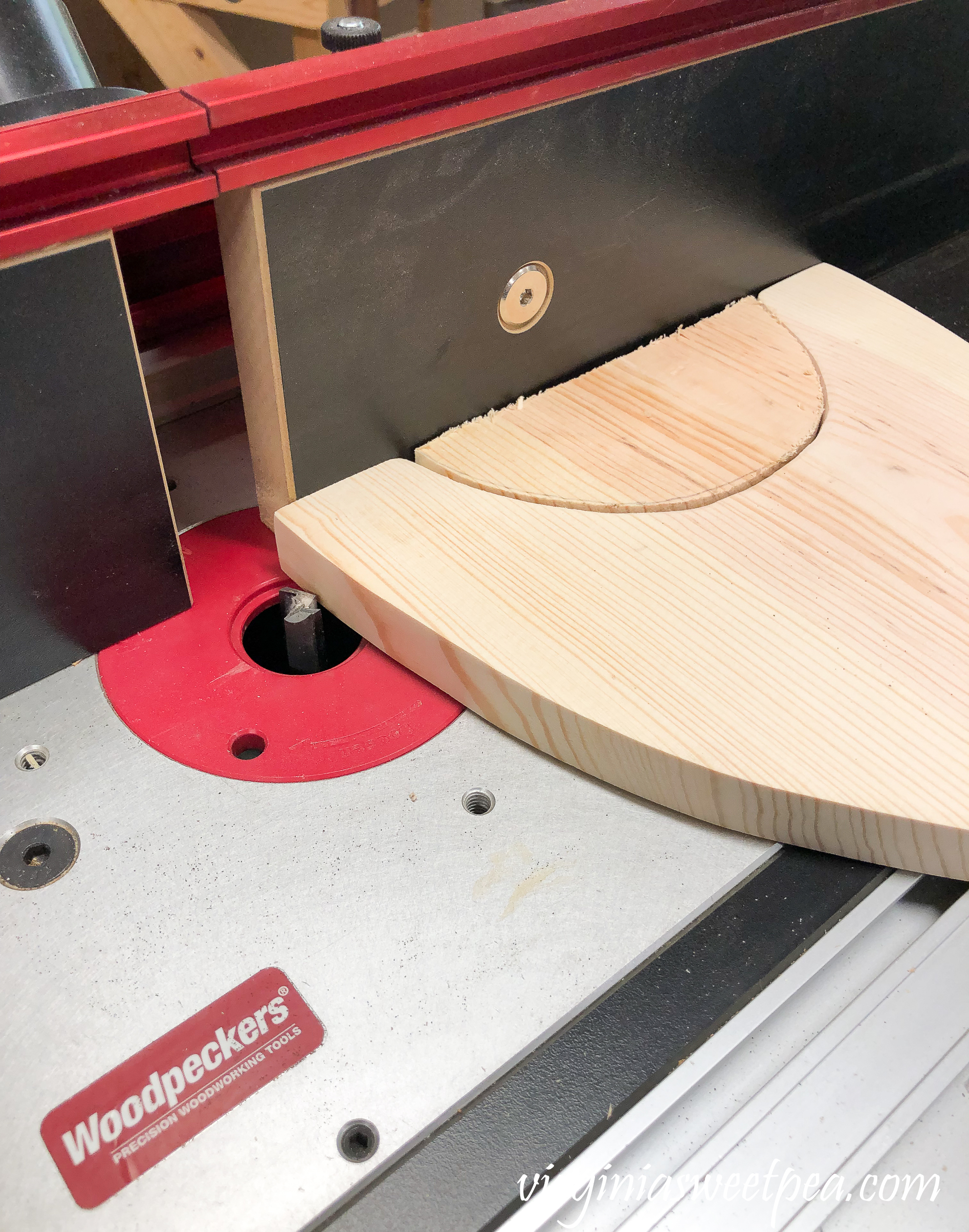

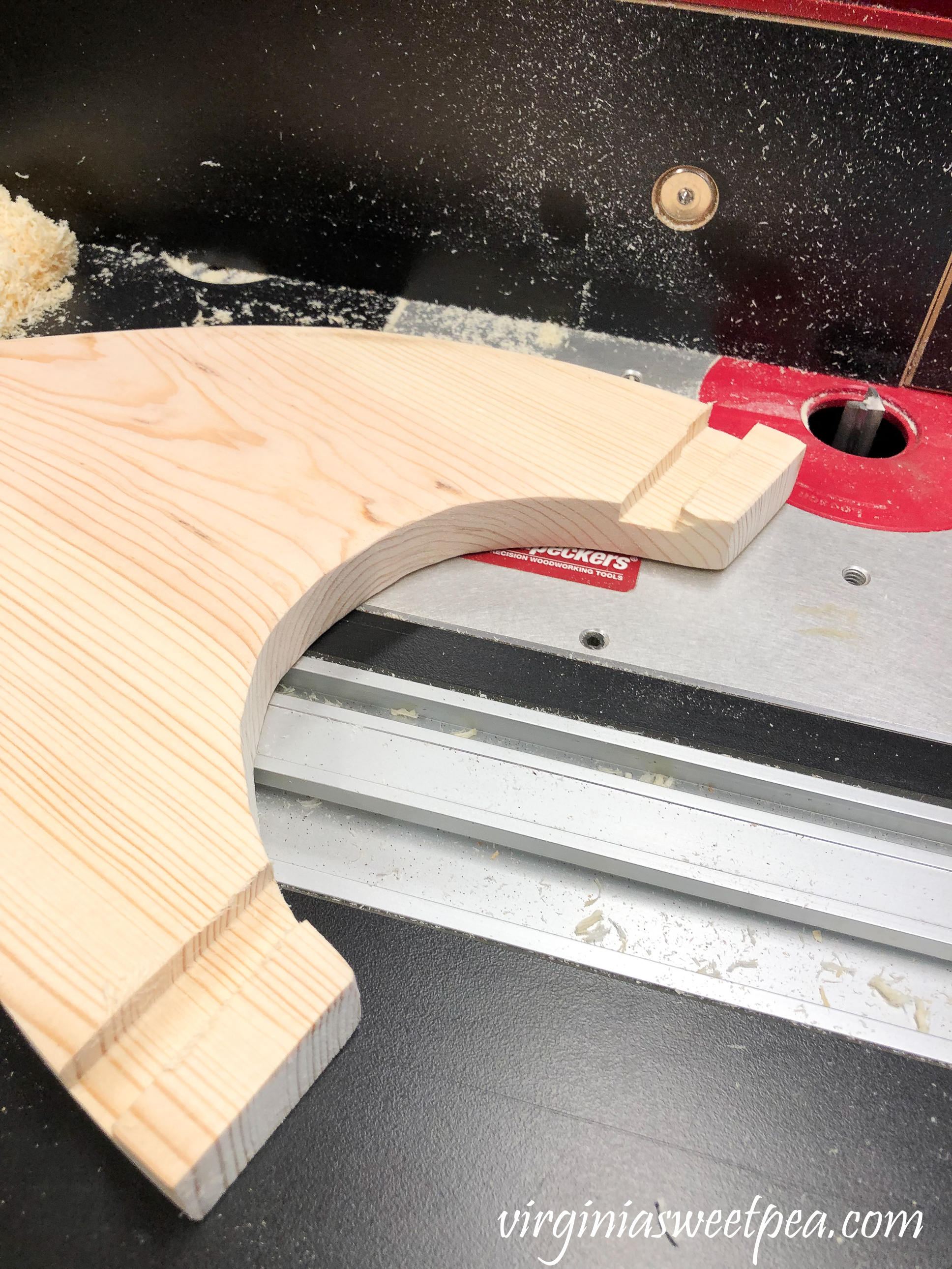

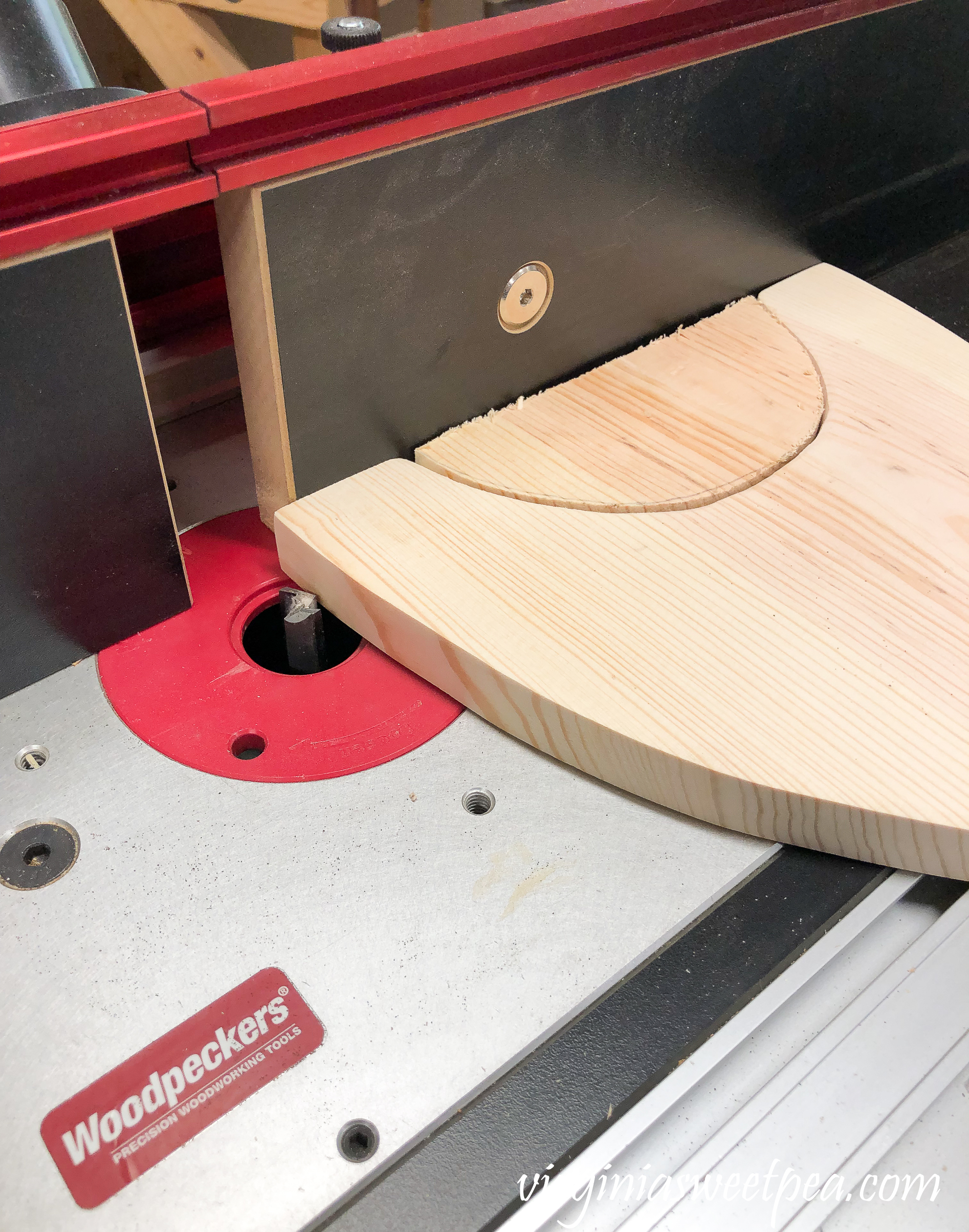

Using a 1/2″ rabbet bit, route a groove approximately 1/2″ from the edge. Use of the scrap piece was to prevent tear-out while routing this groove (see below).
Step Four – Drill Holes

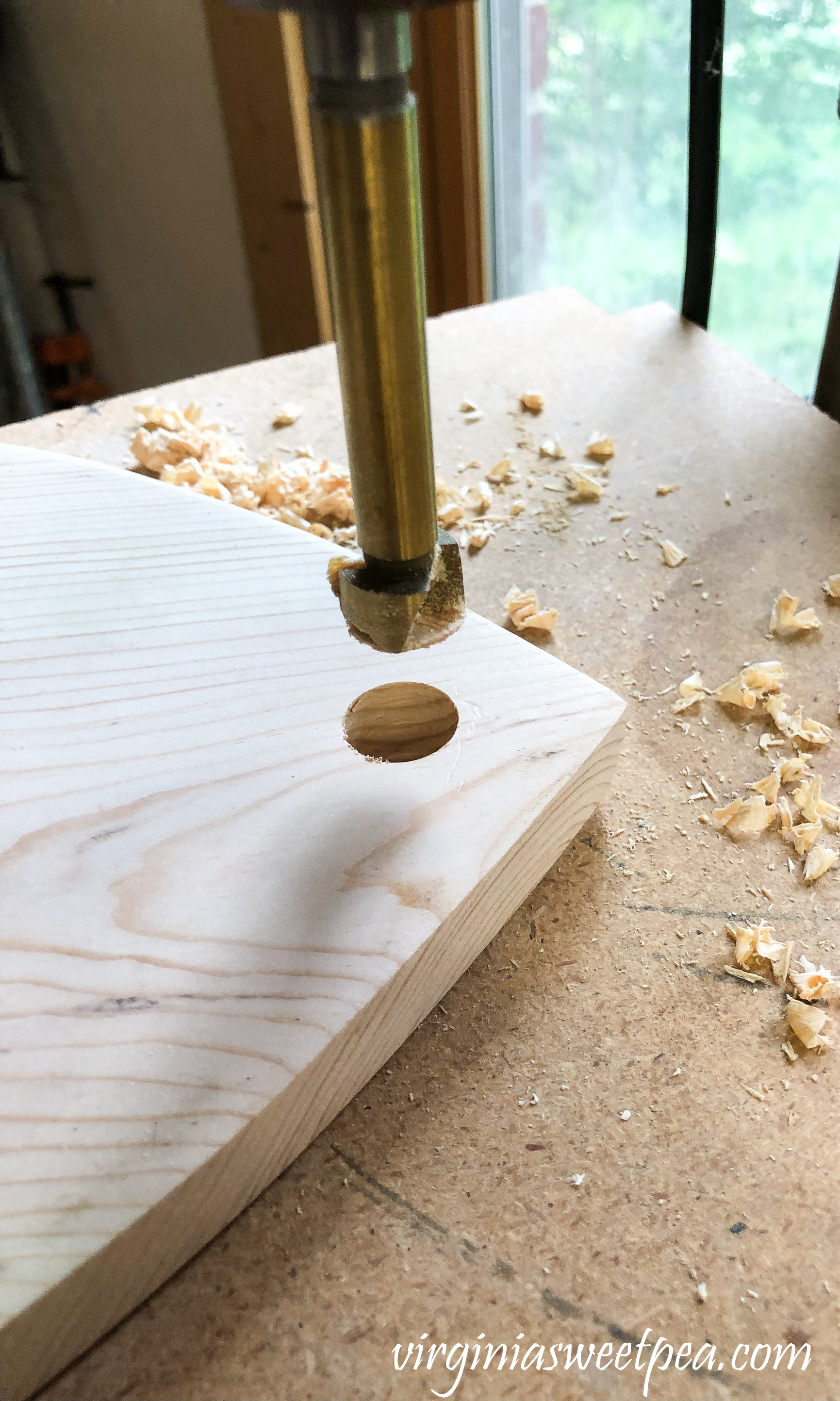

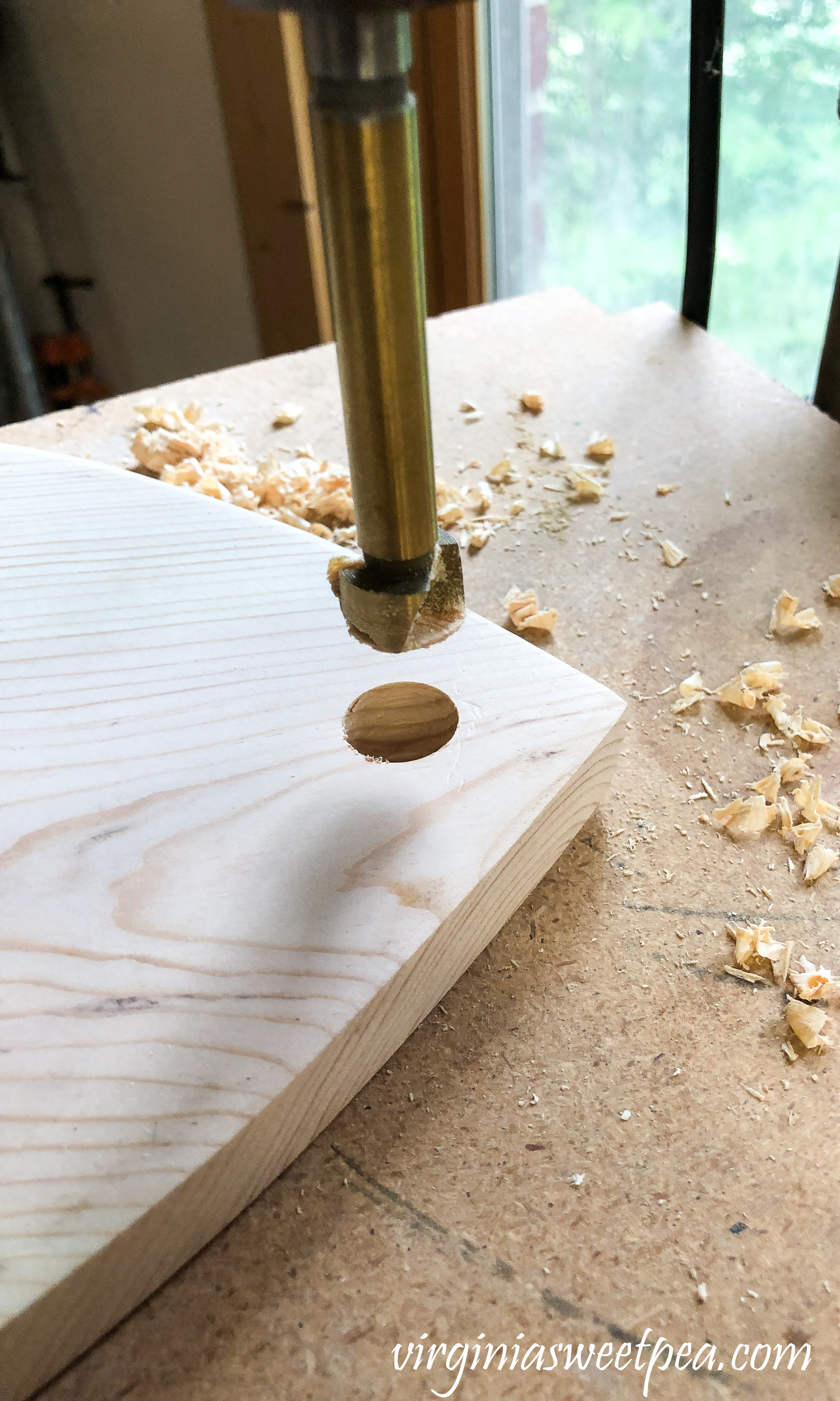

Use a drill press with a 1/2″ drill bit to drill holes following the placement on the template. Multiple holes were drilled in line to accommodate various plate sizes.
Cut a 1/2″ diameter dowel rod into two sections, one 12″ and the other 9″. Use a miter saw to cut one end of each dowel at an angle (nice, but not truly necessary). Use either dowel in any of the holes to suit your intended display.
Step Six – Stain and Enjoy!
Stain the display stand or enjoy using it unstained.
